GS-4012F/4024 User’s Guide

130

Chapter 19 Policy Rule

19.3 Viewing and Editing Policy Configuration

To view a summary of the classifier configuration, scroll down to the summary table at the
bottom of the Policy screen. To change the settings of a rule, click a number in the Index field.

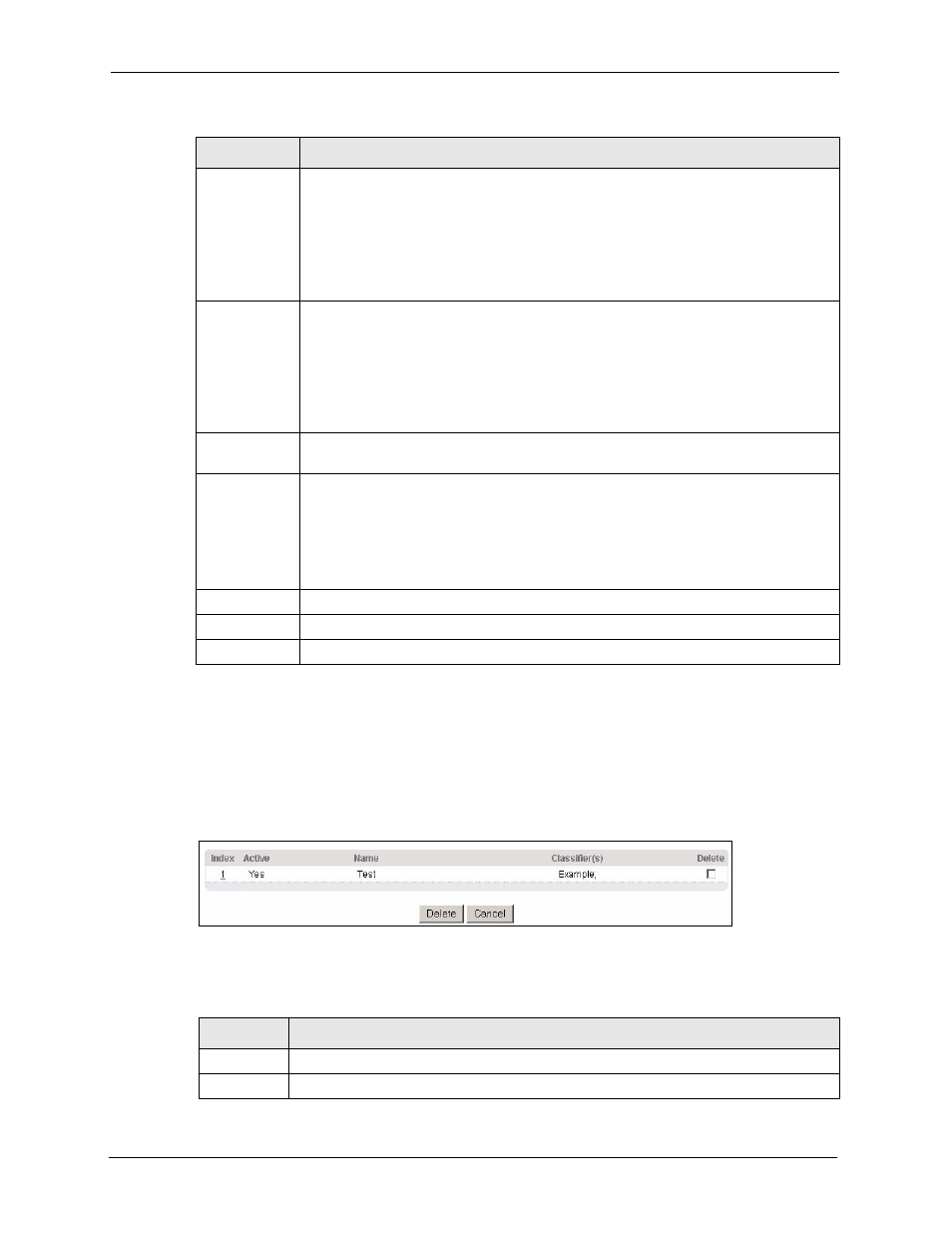

Figure 57 Policy: Summary Table

The following table describes the labels in this screen.

DiffServ

Select No change to keep the TOS and/or DSCP fields in the packets.
Select Set the packet’s TOS field to set the TOS field with the value you configure in

the TOS field.
Select Replace the IP TOS with the 802.1 priority value to replace the TOS field

with the value you configure in the Priority field.
Select Set the Diffserv Codepoint field in the frame to set the DSCP field with the

value you configure in the DSCP field.

Outgoing

Select Send the packet to the mirror port to sent the packet to the mirror port.
Select Send the packet to the egress port to send the packet to the egress port.
Select Send the matching frames (broadcast or DLF, multicast, marked for

dropping or to be sent to the CPU) to the egress port to send the broadcast,

multicast, DLF, marked-to-drop or CPU frames to the egress port.
Select Set the packet’s VLANID to set the VLAN ID of the packet with the value you

configure in the VLANID field.

Metering

Select Enable to activate bandwidth limitation on the traffic flow(s) then set the actions

to be taken on out-of-profile packets.

Out-of-profile

Action

Select the action(s) to be performed for out-of-profile traffic.
Select Drop the packet to discard the out-of-profile traffic.
Select Change the DSCP Value to replace the DSCP field with the value specified in

the Out-of-Profile DSCP field above.
Select Do not drop the matching frame previously marked for dropping to queue

the frames that are marked to be dropped.

Add

Click Add to inset the entry to the summary table below.

Cancel Click

Cancel to reset the fields back to your previous configuration.

Clear Click

Clear to set the above fields back to the factory defaults.

Table 38 Policy (continued)

LABEL

DESCRIPTION

Table 39 Policy: Summary Table

LABEL

DESCRIPTION

Index

This field displays the policy index number. Click an index number to edit the policy.

Active

This field displays Yes when policy is activated and No when is it deactivated.
