GS-4012F/4024 User’s Guide
Chapter 27 DVMRP 175

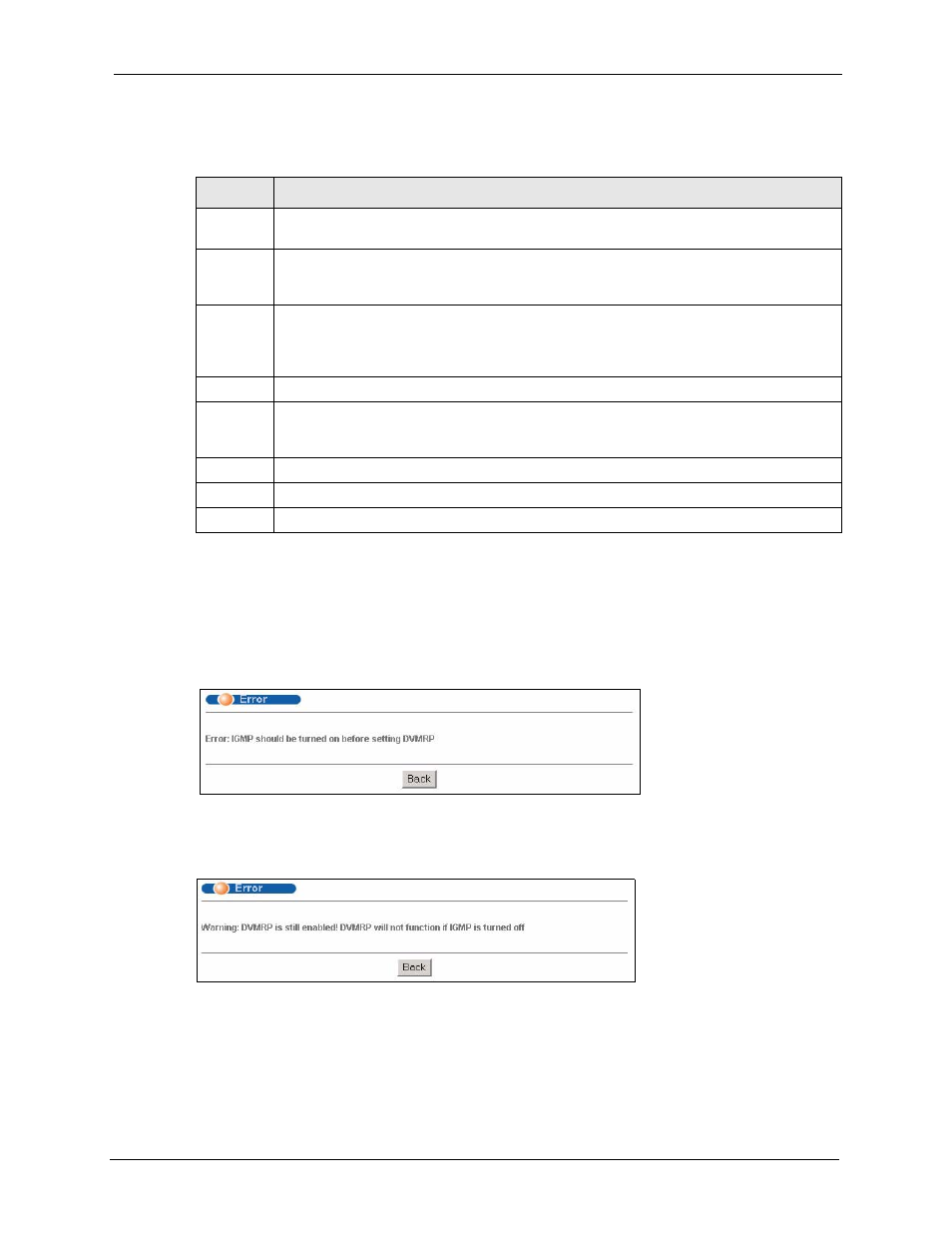

27.3.1 DVMRP Configuration Error Messages
You must have IGMP/RIP enabled when you enable DVMRP; otherwise you see the screen as
in the next figure.
Figure 85 DVMRP: IGMP/RIP Not Set Error
When you disable IGMP, but DVMRP is still active you also see another warning screen.
Figure 86 DVMRP: Unable to Disable IGMP Error
Each IP routing domain DVMRP configuration must be in a different VLAN group; otherwise
you see the following screen.
Table 63 DVMRP
LABEL DESCRIPTION
Active Select Active to enable DVMRP on the switch. You should do this if you want the switch to
act as a multicast router.
Threshold Threshold is the maximum time to live (TTL) value. TTL is used to limit the scope of
multicasting. You should reduce this value if you do not wish to flood Layer 3 devices many
hops away with multicast traffic. This applies only to multicast traffic this switch sends out.
Index Index is the DVMRP configuration for the IP routing domain defined under Network. The
maximum number of DVMRP configurations allowed is the maximum number of IP routing
domains allowed on the switch. See Section 7.7 on page 78 for more information on IP
routing domains.
Network This is the IP routing domain IP address and subnet mask you set up in IP Setup.
VID DVMRP cannot be enabled on the same VLAN group across different IP routing domains,
that is, you cannot have duplicate VIDs for different DVMRP configurations (see Figure 87
on page 176 ).
Active Select Active to enable DVMRP on this IP routing domain.
Apply Click Apply to save these changes to the switch.
Cancel Click Cancel to begin configuring this part of the screen afresh.
