GS-4012F/4024 User’s Guide

Chapter 30 DHCP

185

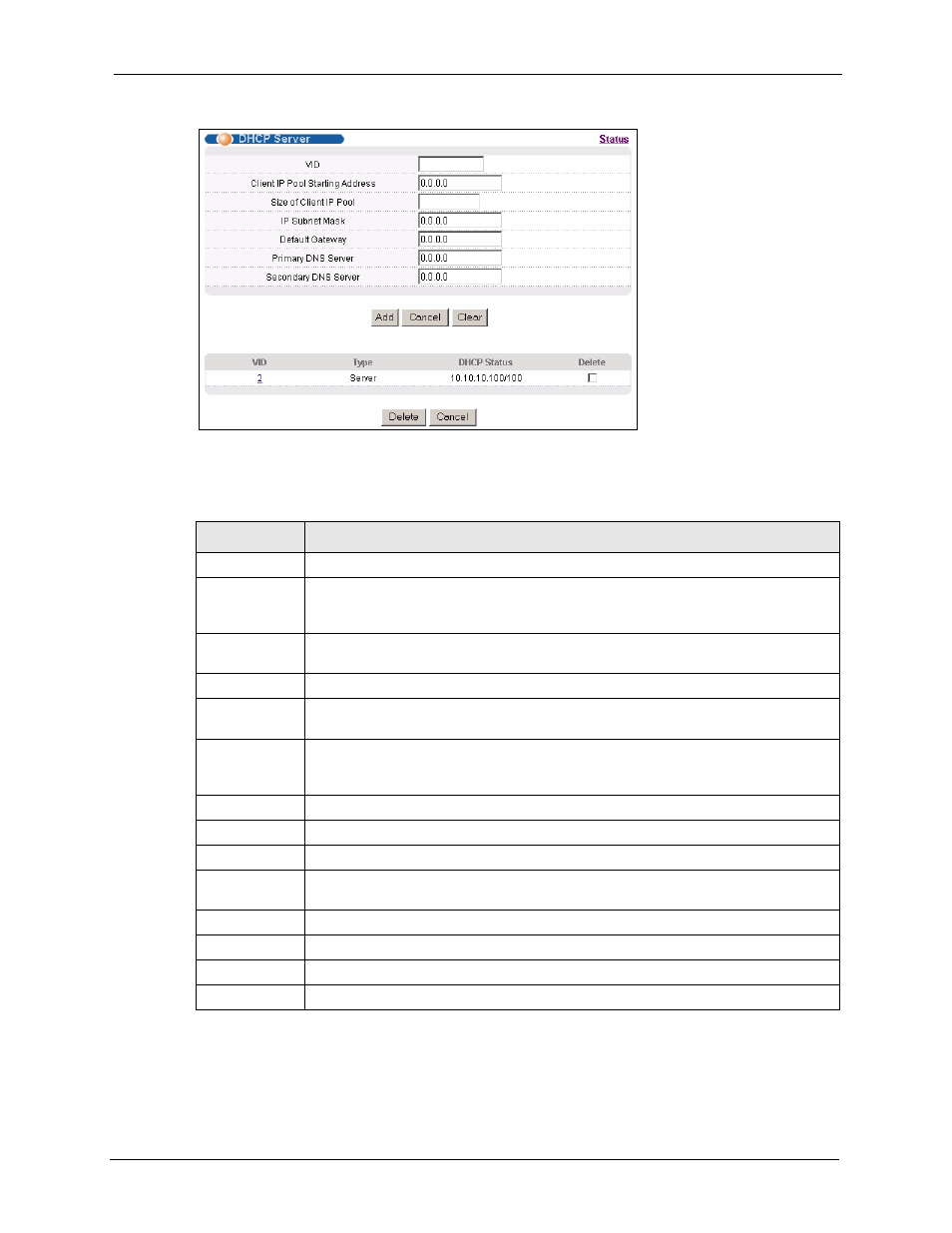

Figure 94 DHCP: Server

The following table describes the labels in this screen.

Table 70 DHCP: Server

LABEL

DESCRIPTION

VID

Enter the ID number of the VLAN group to which this DHCP settings apply.

Client IP Pool

Starting

Address

Specify the first of the contiguous addresses in the IP address pool.

Size of Client IP

Pool

Specify the size, or count of the IP address pool.

IP Subnet Mask Enter the subnet mask of the DHCP server.

Default

Gateway

Enter the IP address of the default gateway device.

Primary/

Secondary

DNS Server

Enter the IP addresses of the DNS servers. The DNS servers are passed to the

DHCP clients along with the IP address and the subnet mask.

Add

Click Add to insert the settings as a new entry in the summary table.

Cancel

Click Cancel to reset the fields to your previous configurations.

Clear

Click Clear to reset the fields back to the factory defaults.

VID

This field displays the ID number of the VLAN group to which this DHCP settings

apply.

Type This

field

displays

Server for the DHCP mode.

DHCP Status

This field displays the starting and the size of DHCP client IP address.

Delete

Click Delete to remove the selected entry.

Cancel Click

Cancel to clear the Delete check boxes.
