GS-4012F/4024 User’s Guide
Chapter 31 VRRP 195

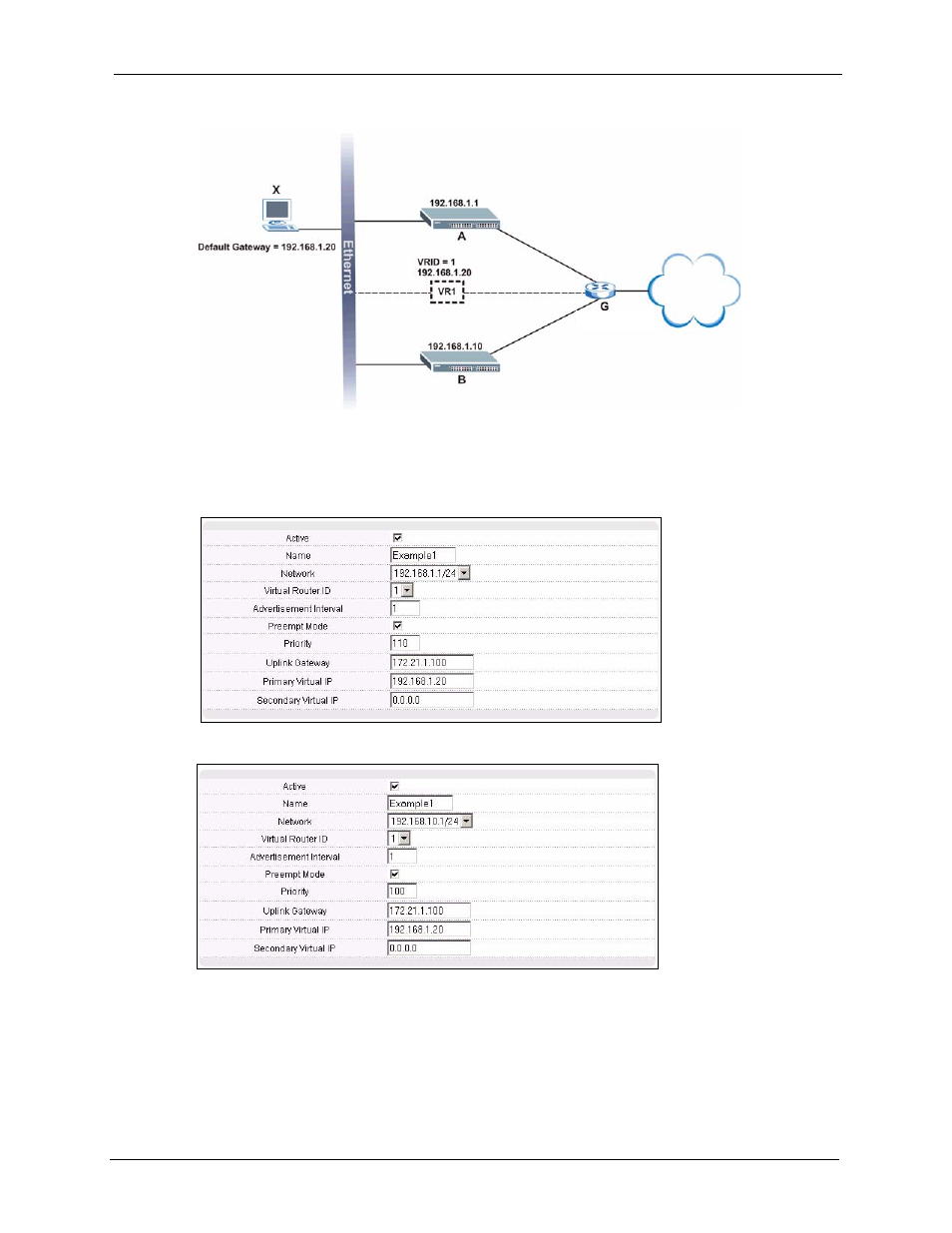

Figure 105 VRRP Configuration Example: One Virtual Router Network
You want to set switch A as the master router. Configure the VRRP parameters in the VRRP
Configuration screens on the switches as shown in the figures below.
Figure 106 VRRP Example 1: VRRP Parameter Settings on Switch A
Figure 107 VRRP Example 1: VRRP Parameter Settings on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
172.21.1.100
172.21.1.1
172.21.1.10
