GS-4012F/4024 User’s Guide

112

Chapter 15 Link Aggregation

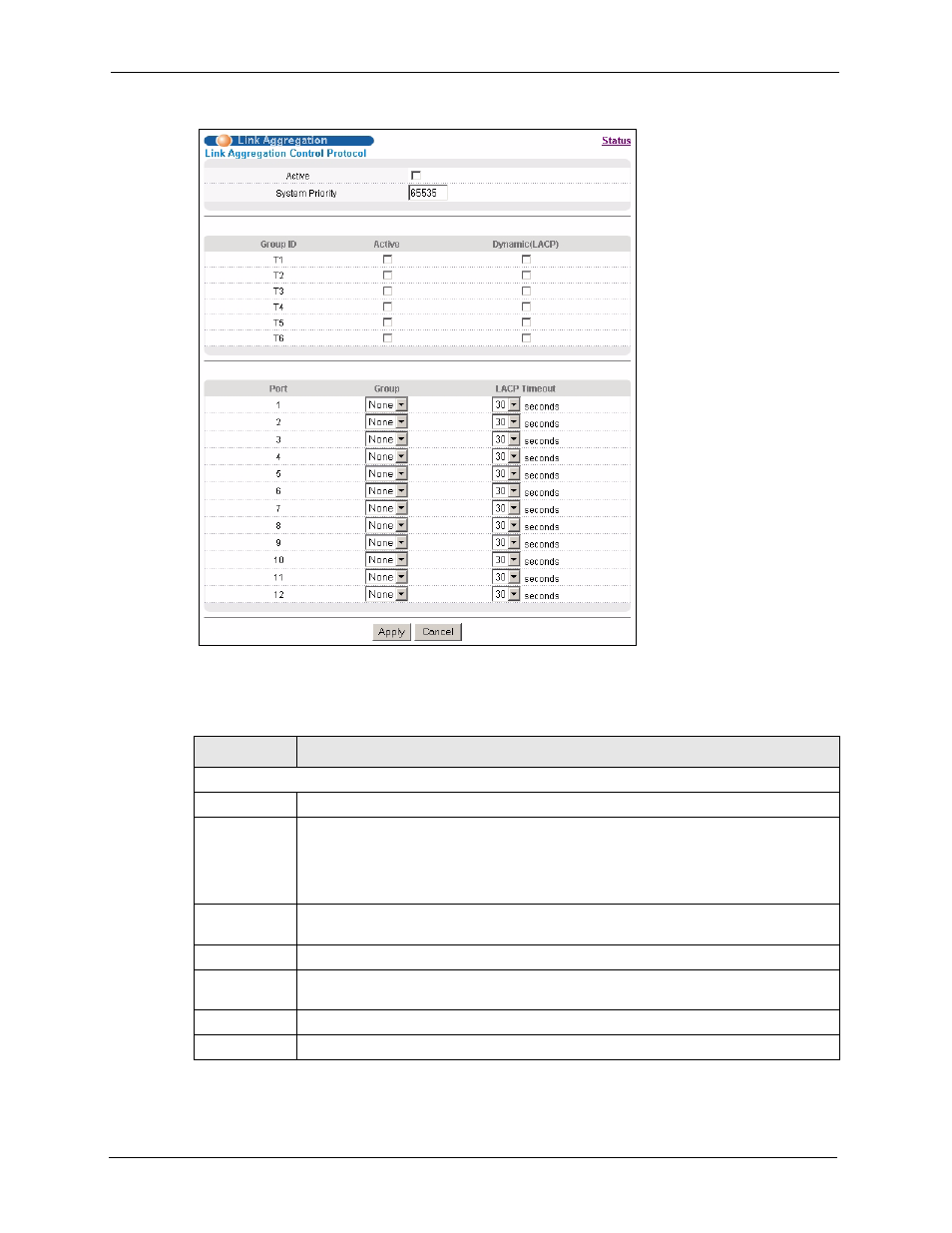

Figure 47 Link Aggregation Control Protocol: Configuration

The following table describes the labels in this screen.

Table 30 Link Aggregation Control Protocol: Configuration

LABEL

DESCRIPTION

Link Aggregation Control Protocol

Active

Select this checkbox to enable Link Aggregation Control Protocol (LACP).

System

Priority

LACP system priority is a number between 1 and 65,535. The switch with the lowest

system priority (and lowest port number if system priority is the same) becomes the

LACP “server”. The LACP “server” controls the operation of LACP setup. Enter a

number to set the priority of an active port using Link Aggregate Control Protocol

(LACP). The smaller the number, the higher the priority level.

Group ID

The field identifies the link aggregation group, that is, one logical link containing

multiple ports

Active

Select this option to activate a trunk group.

Dynamic

(LACP)

Select this check box to enable LACP for a trunk.

Port

This field displays the port number.

Group

Select the trunk group to which a port belongs.
