GS-4012F/4024 User’s Guide
62 Chapter 5 Initial Setup Example

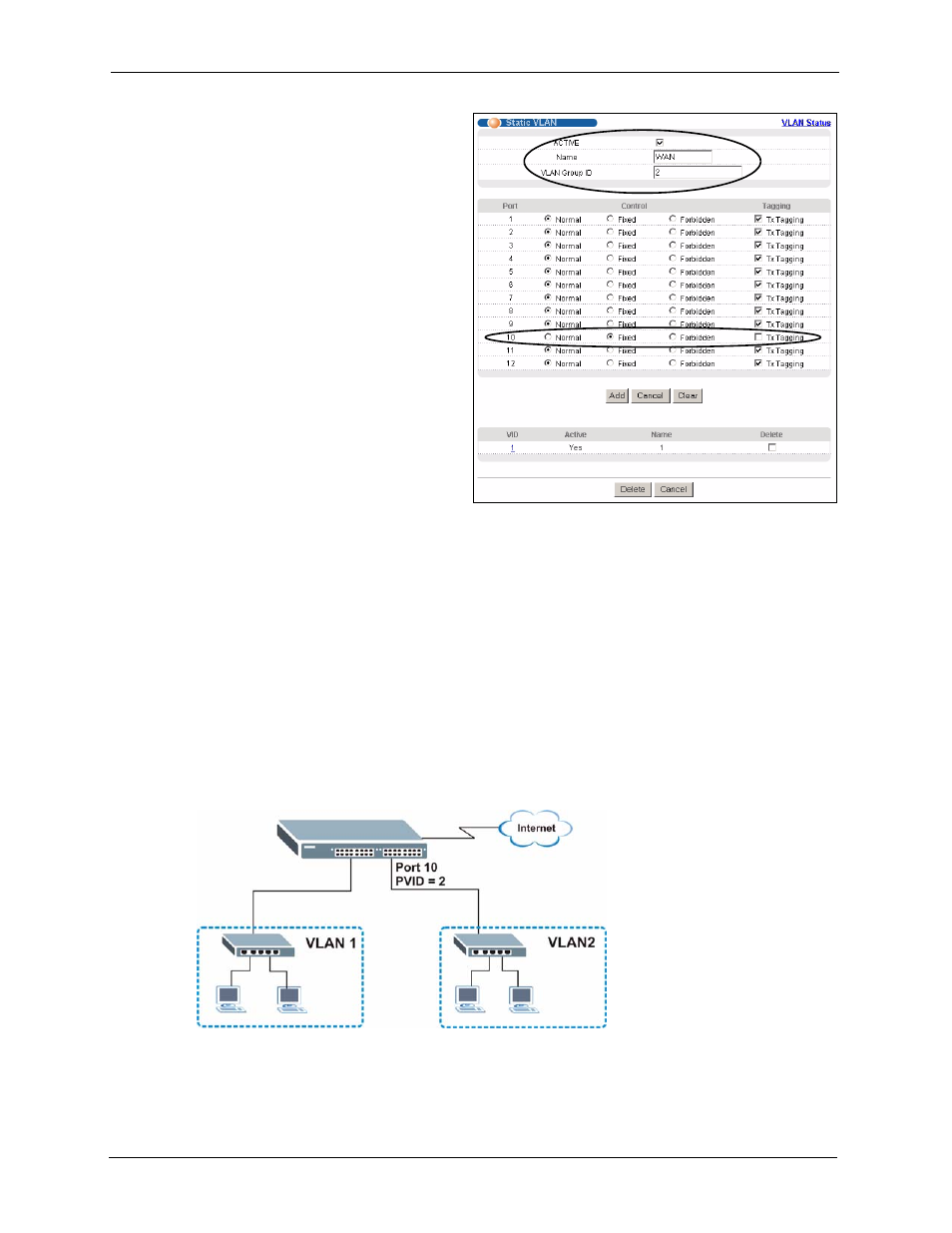

2 In the Static VLAN screen,
select ACTIVE, enter a
descriptive name in the Name
field and enter 2 in the VLAN
Group ID field for the Sales
network.
Note: The VLAN Group ID field in
this screen and the VID field
in the IP Setup screen refer
to the same VLAN ID.
3 Since the Sales network is
connected to port 10 on the
switch, select Fixed to configure
port 10 to be a permanent
member of the VLAN only.
4 To ensure that VLAN-unaware
devices (such as computers and
hubs) can receive frames
properly, clear the TX Tagging check box to set the switch to remove VLAN tags before
sending.
5 Click Add to save the settings.
5.1.4 Setting Port VID
Use PVID to add a tag to incoming untagged frames received on that port so that the frames
are forwarded to the VLAN group that the tag defines.
In the example network, configure 2 as the port VID on port 10 so that any untagged frames
received on that port get sent to VLAN 2.
Figure 24 Initial Setup Network Example: Port VID
