GS-4012F/4024 User’s Guide
Chapter 22 Multicast 149

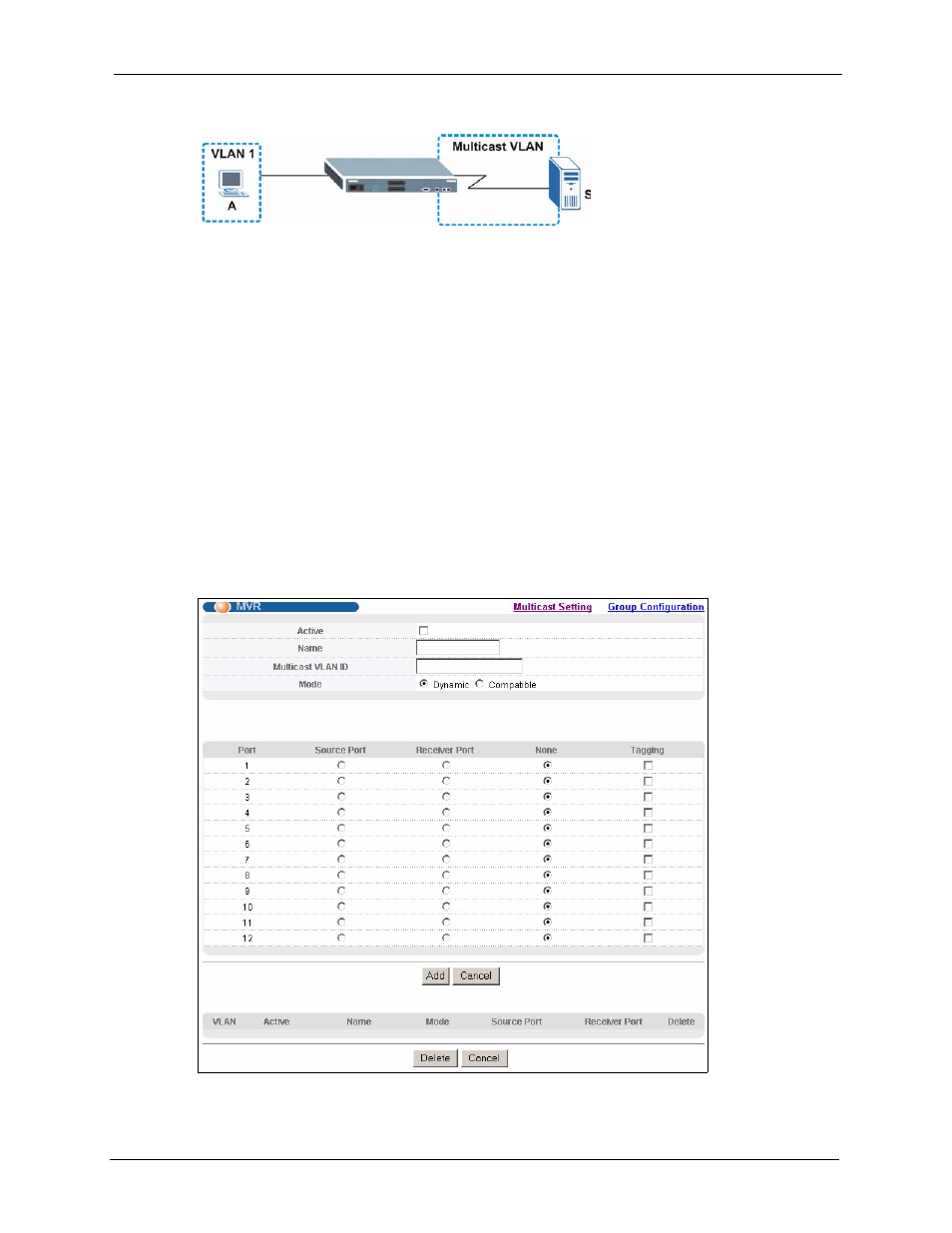

Figure 66 MVR Multicast Television Example
22.4 General MVR Configuration
Use the MVR screen to create multicast VLANs and select the receiver port(s) and a source
port for each multicast VLAN.
Click Advanced Applications and Multicast in the navigation panel. Click the Multicast
Setting link and then the MVR link to display the screen as shown next.
Note: You can create up to three multicast VLANs and up to 256 multicast rules on
the switch.
Your switch automatically creates a static VLAN (with the same VID) when you
create a multicast VLAN in this screen.
Figure 67 Multicast: Setting: MVR
