GS-4012F/4024 User’s Guide
Chapter 31 VRRP 197

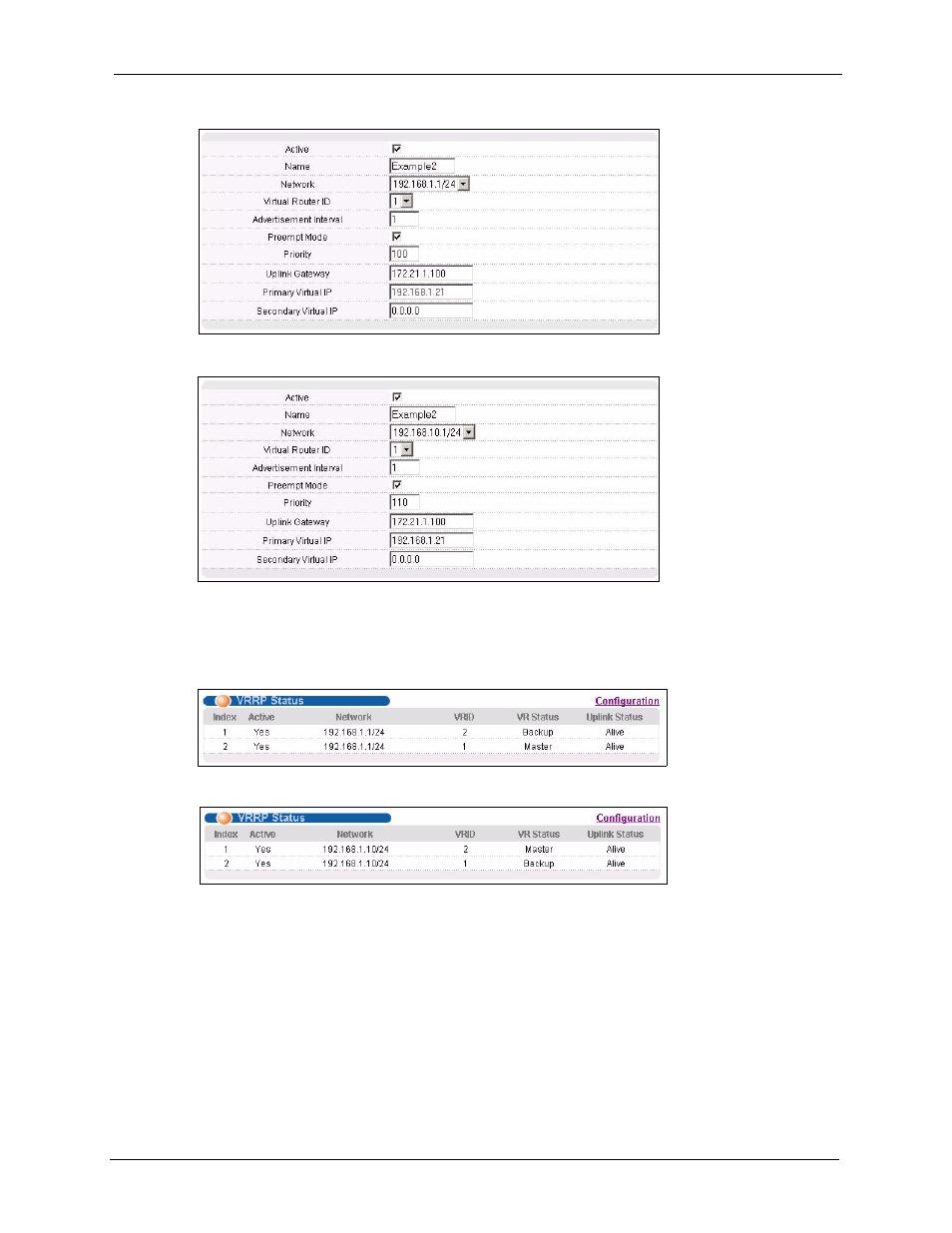

Figure 111 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch A
Figure 112 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
Figure 113 VRRP Example 2: VRRP Status on Switch A
Figure 114 VRRP Example 2: VRRP Status on Switch B
