GS-4012F/4024 User’s Guide
180 Chapter 29 Differentiated Services

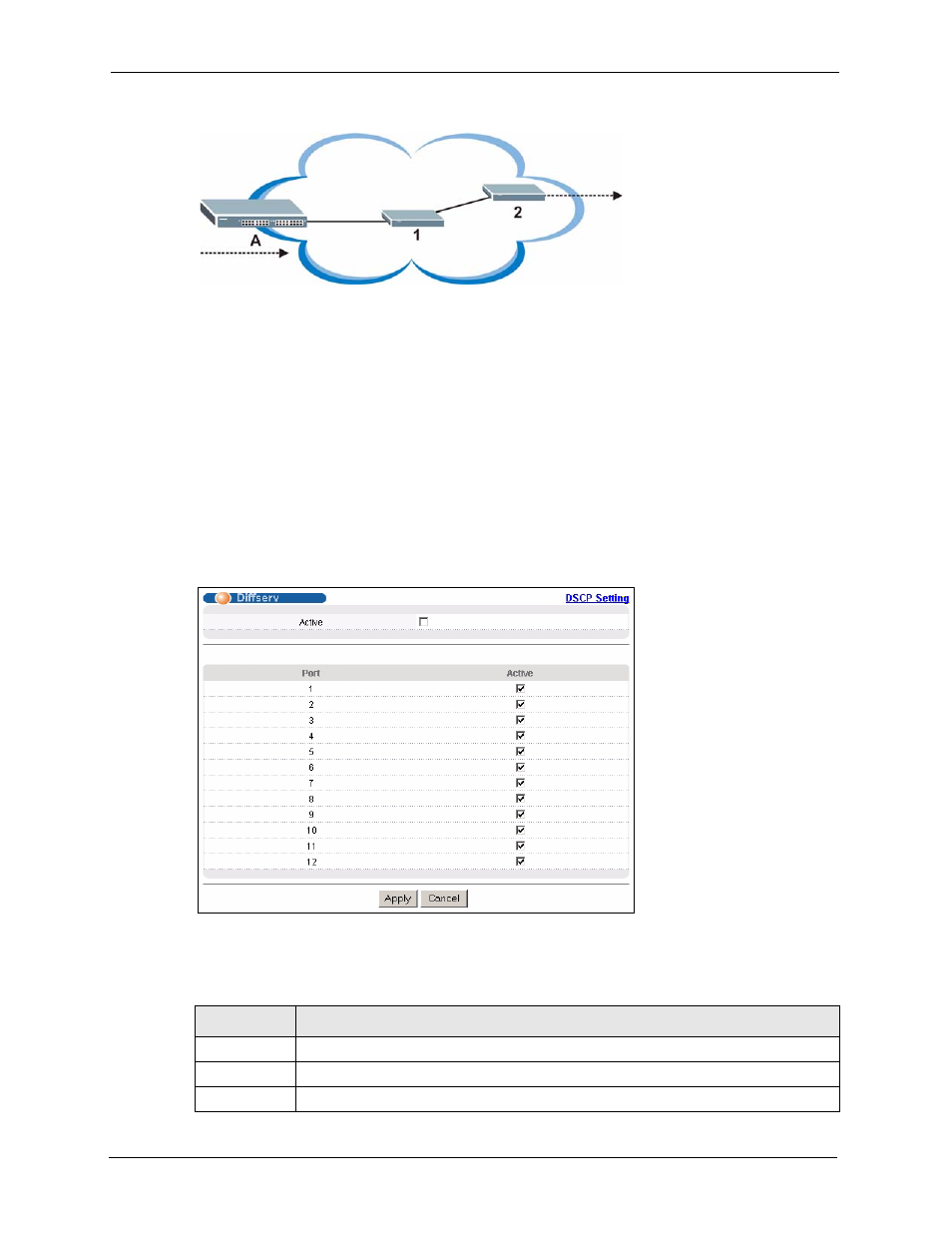

Figure 90 DiffServ Network Example
Switch A marks traffic flowing into the network based on the configured marking rules.
Intermediary network devices 1 and 2 allocate network resources (such as bandwidth) by
mapping the DSCP values and the associated policies.
29.2 Activating DiffServ
Activate DiffServ to allow the switch to enable DiffServ and apply marking rules and
IEEE802.1p priority mapping on the selected port(s).
Click IP Application, DiffServ in the navigation panel to display the screen as shown.
Figure 91 DiffServ
The following table describes the labels in this screen.
Table 66 DiffServ
LABEL DESCRIPTION
Active Select this option to enable DiffServ on the switch.
Port This field displays the index number of a port on the switch.
Active Select this option to enable DiffServ on the port.
