GS-4012F/4024 User’s Guide

Chapter 31 VRRP

191

31.3 Configuring VRRP

Follow the instructions in the follow sections to configure VRRP on the switch.

31.3.1 IP Interface Setup

Before configuring VRRP, first create an IP interface (or routing domain) in the IP Setup
screen (see the

Section 7.7 on page 78

for more information).

Click IP Application, VRRP and click the Configuration link to display the VRRP
Configuration screen as shown next.

Note: You can only configure VRRP on interfaces with unique VLAN IDs.

Routing domains with the same VLAN ID are not displayed in the table
indicated.

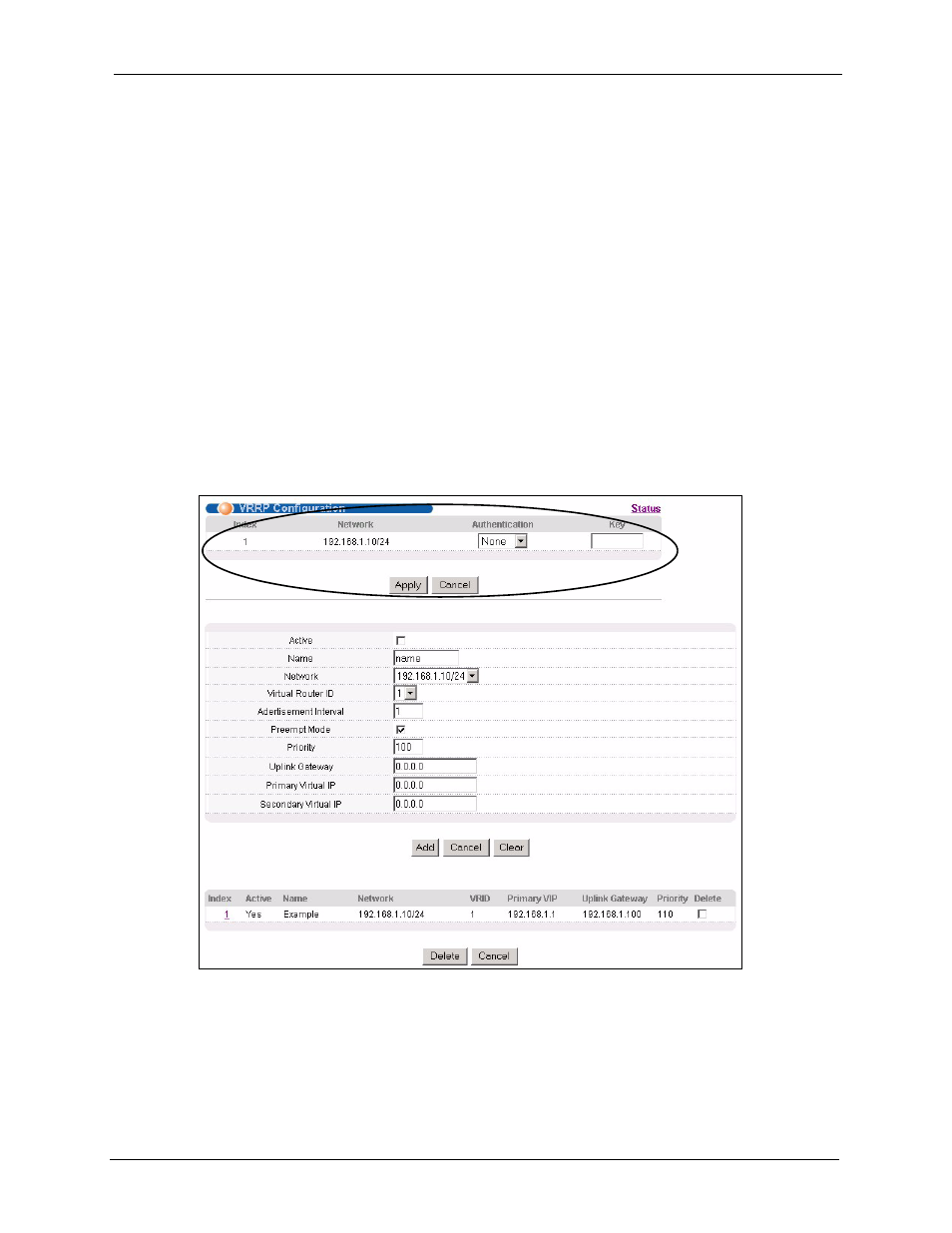

Figure 102 VRRP Configuration: IP Interface

The following table describes the labels in this screen.
