GS-4012F/4024 User’s Guide
46 Chapter 3 Hardware Overview

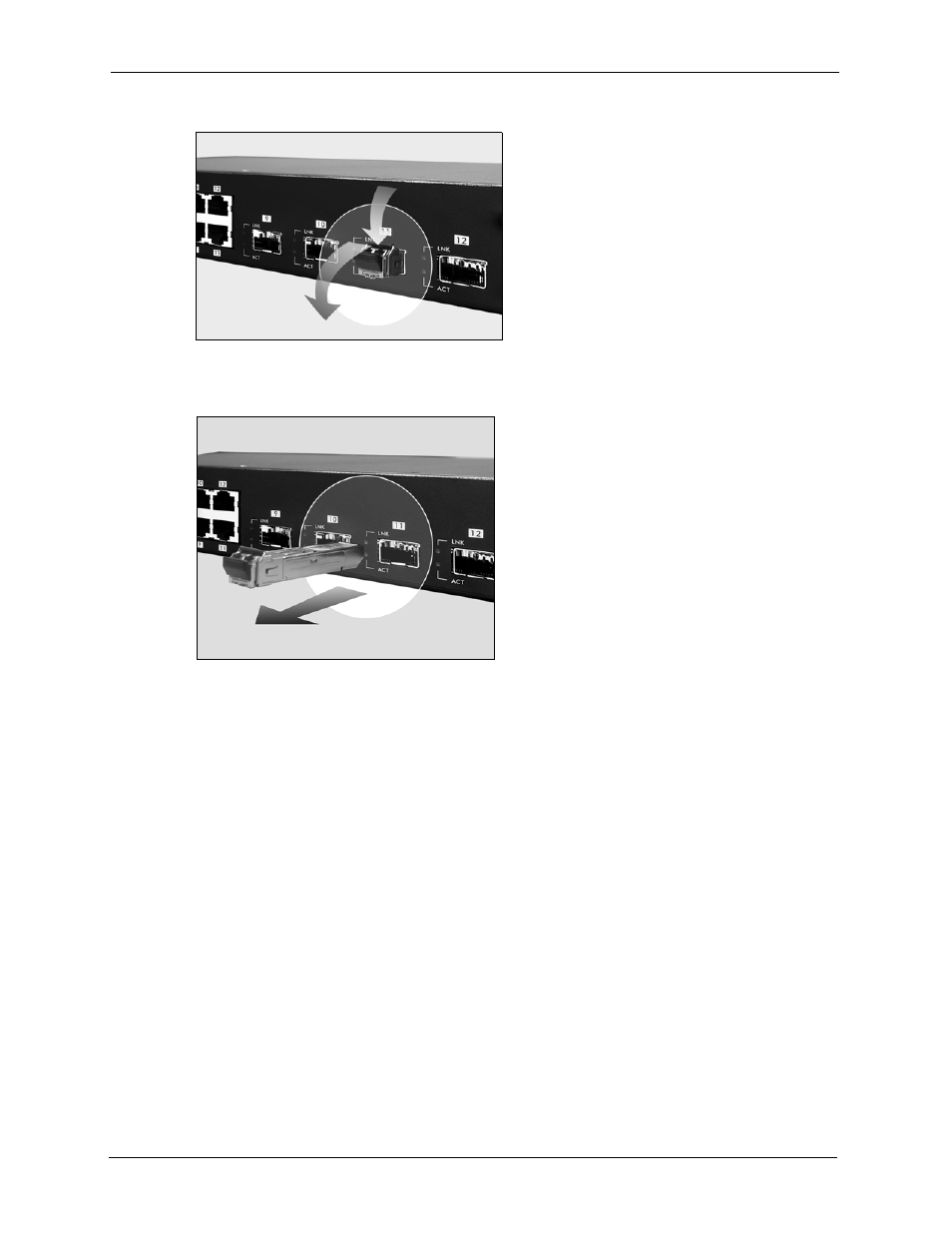

Figure 13 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 14 Transceiver Removal Example
3.2 Rear Panel
The following figure shows the rear panel of the switch. The rear panel contains the ventilation
holes, a connector for external backup power supply (BPS), the power receptacle and the
power switch (for DC model).
The following figure shows the rear panel of the switch. The rear panel contains a connector
for backup power supply (BPS) and the power receptacle.
