Tutorials
2-60
AWG610 Arbitrary Waveform Generator User Manual

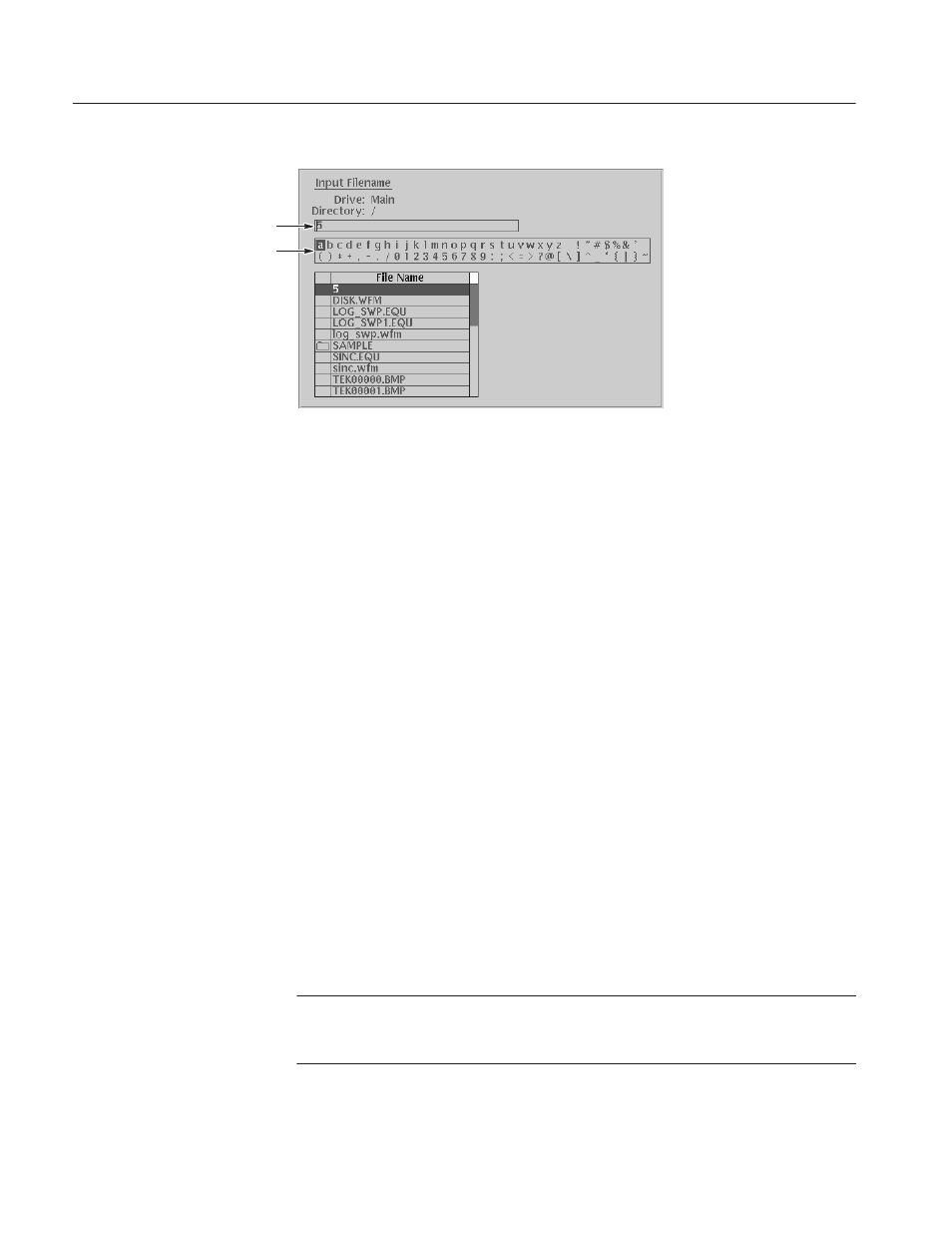

Character palette
Text field
Figure 2-39: File Name Input dialog box
5. Push the ENTER button once.
Confirm that the letter A is inserted into the text field.
6. Turn the general purpose knob to highlight the letter B in the character
palette, and push the ENTER button.
7. Turn the general purpose knob to highlight the letter C in the character
palette, and push the ENTER button.
8. Push the 4 and 5 buttons on the front-panel keypad. Now, ABC45.wfm is
displayed in the text field.
9. Push the OK side button.
The waveform in the editor is now saved in the file ABC45.wfm.
Do the following steps to load and output the saved waveform:
1. Push the SETUP button on the front panel to display the SETUP menu.
2. Load the file ABC45.wfm.
Refer to Load a Sample Waveform on page 2–52 if you need help.
3. Push the RUN button on the front panel to output the analog waveform.
NOTE. Pushing the RUN button causes the instrument to output the waveform.
Push the RUN button again to stop the output. The instrument does not
automatically output the waveform from a newly-loaded file.
Output the Waveform
