Operating Basics
2-4
AWG610 Arbitrary Waveform Generator User Manual
TRIGGER controls
QUICK EDIT button
RUN button
VERTICAL controls HORIZONTAL controls
Enters theQUICK EDIT modefrom thewaveform editor. This button
allows you to edit waveforms that have immediate effect on the output
signal. Use together with the VERTICAL and HORIZONTAL controls for
quick edit.
Used to control the output vertical axis parameters.
Pushing theVERTICAL MENU button displays theVERTICAL sidemenu.
This is thesameas selecting SETUP (front)! Vertical (bottom).
TheOFFSET knob, adjusts thevertical offset.
TheLEVEL/SCALE knob adjusts theamplitude.
FORCE EVENT button
Controls the trigger parameters.
Pushing theTRIGGER MENU button
displays the Trigger side menu. This
has thesameeffect as pushing
SETUP (front)!Trigger (bottom).
TheLEVEL knob adjusts thetrigger
level.
FORCE TRIGGER button
Pushing theFORCE TRIGGER button
generates an internal trigger event.
Pushing the FORCE EVENT button generates an
internal event signal.
Used to control the output horizontal axis parameters.
Pushing theHORIZONTAL MENU button displays theHorizontal sidemenu.
This is thesameas selecting SETUP (front)!Horizontal (bottom).
TheOFFSET knob adjusts thehorizontal position.
The SAMPLE RATE/SCALE knob adjusts the clock frequency.
Enables waveform output. The signal
output depends on the RUN mode
settings.

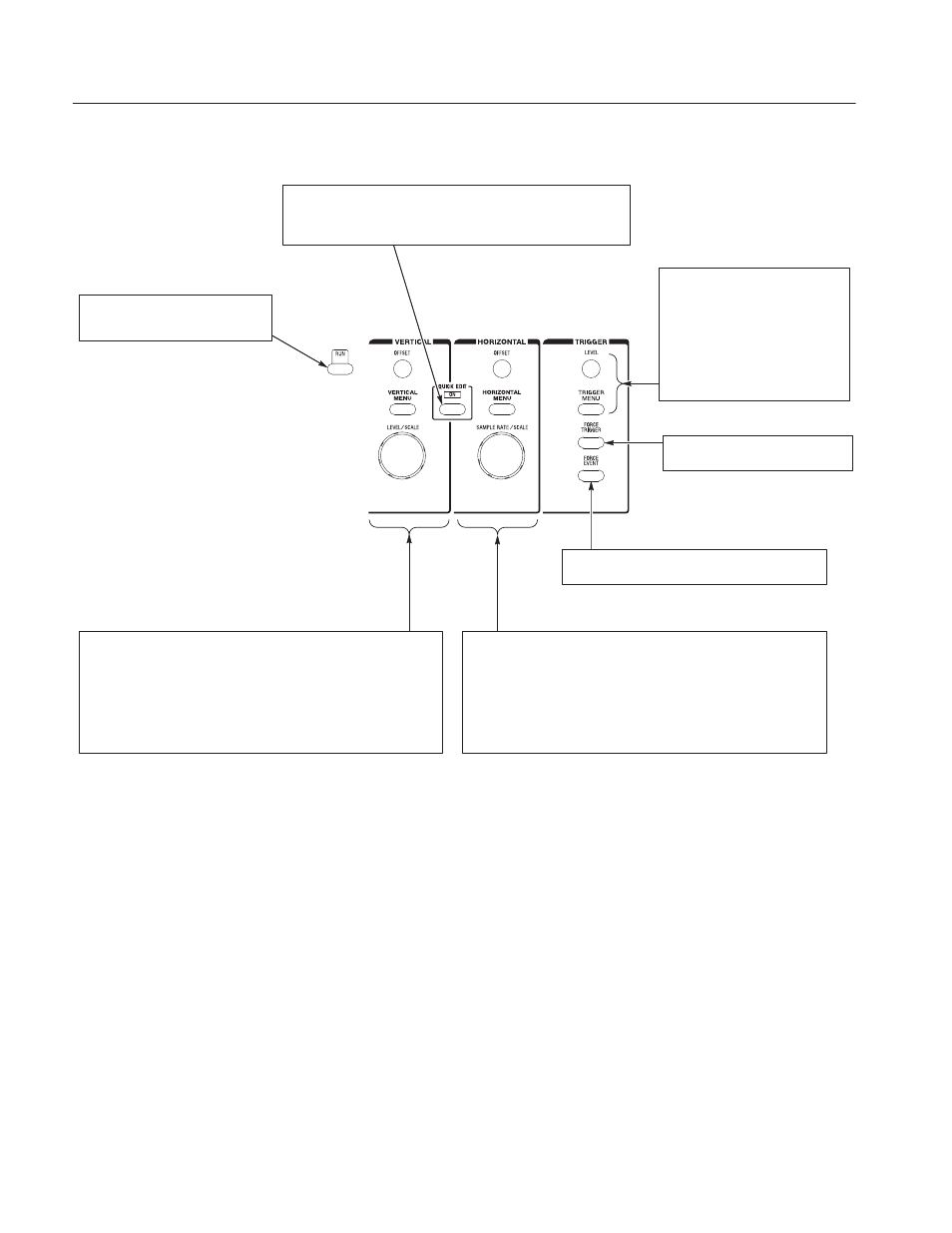

Figure 2-3: Front panel trigger and output controls
