The Pattern Editor

3-86

AWG610 Arbitrary Waveform Generator User Manual

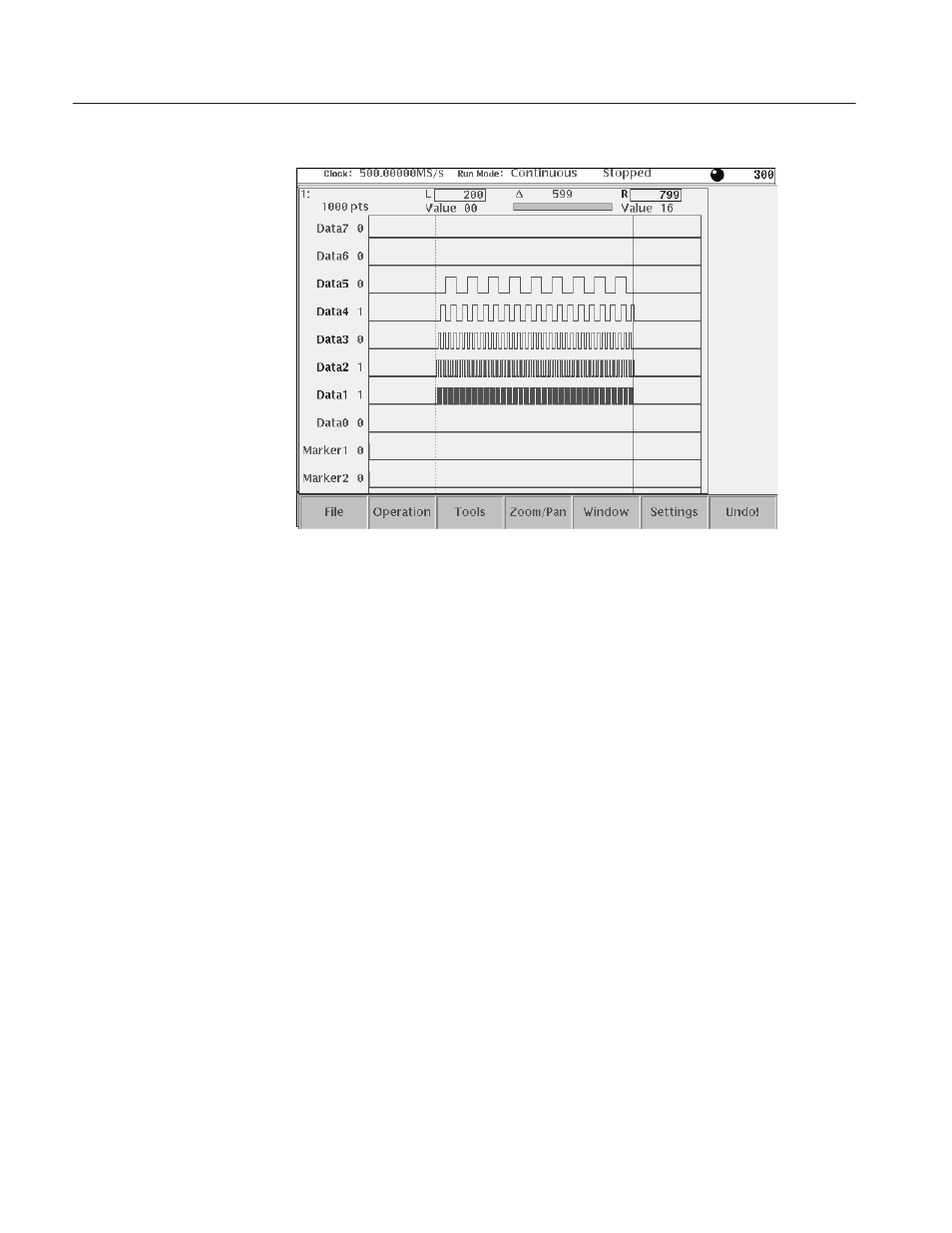

Figure 3-17: Area cursors

Creating a Pattern

The New Pattern command opens a pattern edit window with the following
default values:

Data length:

1000 points

. . . . . . . . . . . . . . .

Bit value level:

. . . . . . . . . . . .

Clock frequency:

100 MS/s

. . . . . . . . . . .

Edit scope:

Data7 through Data0

. . . . . . . . . . . . . . . .

The Pattern Editor does not change the data length when executing Cut
operations. To create 1000-point or shorter data, change the data length in the
Total Points item of the Setting menu.

For creating pattern, you can use the following methods alone or in combination:

H Select from standard patterns

H Import from external file

H Newly created and/or edit pattern

H Generate random pattern
