The Pattern Editor
AWG610 Arbitrary Waveform Generator User Manual
3-81
Table 3-25: Code conversion commands
Commands Description
Open... Reads an existing code conversion table.
Save... Savesa code conversion table that wasnewly created or
edited. It issaved in an ASCII file and the cellsare separated
by commas.
Edit... Createsor editsa code conversion table.
When you push the Edit... side button, the code conversion table appears as
shown in Figure 3–15. Each code conversion table defines the template pattern
that is used for pattern matching with the source code. Use the Edit... side button
to create a new code conversion table. Alternatively, use the Open... side button
to read an existing code conversion table.

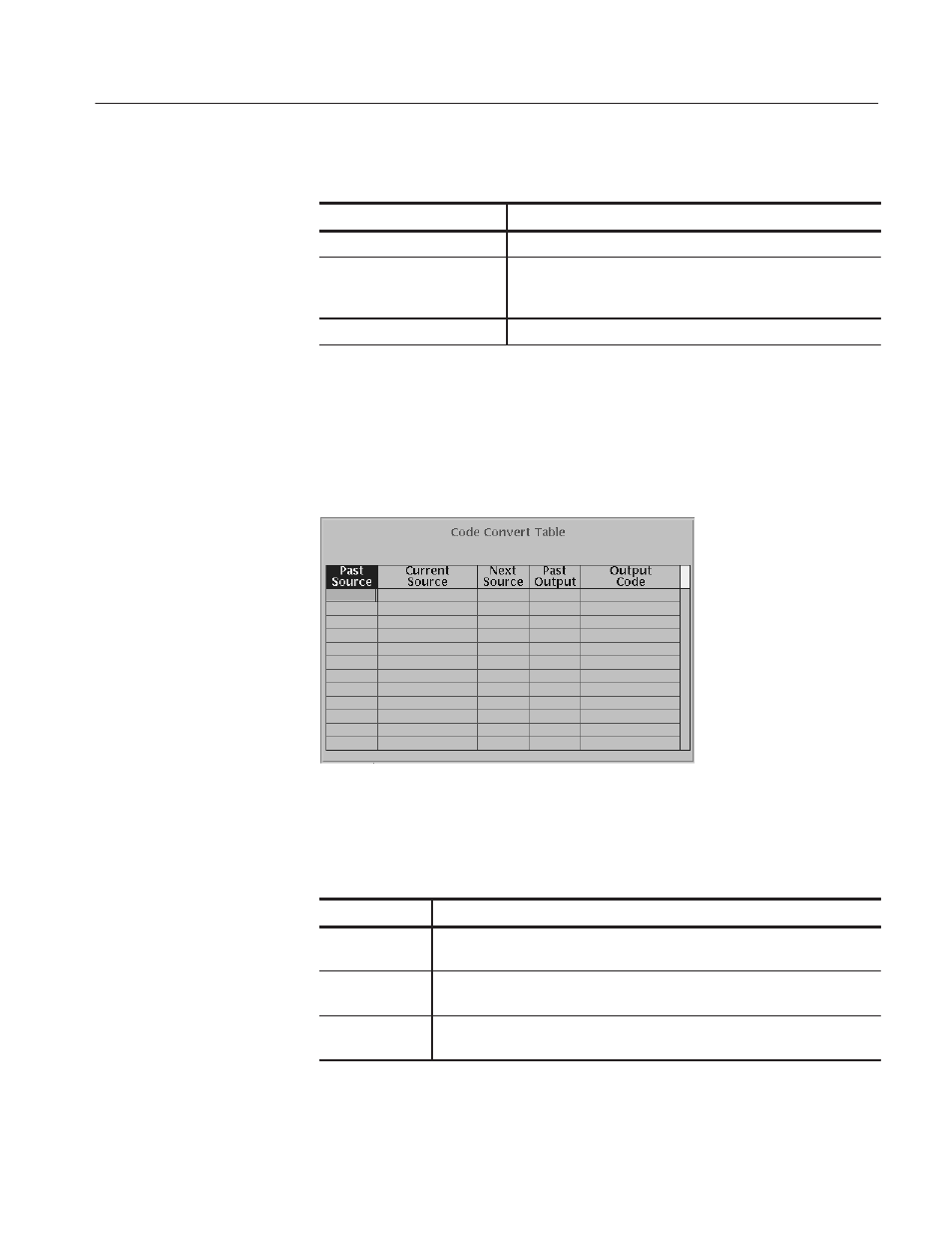

Figure 3-15: Code conversion table
Table 3-26: Code conversion parameters
Parameters Description
Past Source Correspondsto the previoussource data, which isto the left of the current
noticed point. You can view up to eight pointsof past data.
Current Source Shows the source data you are currently looking up. You may specify up to
16 points, starting in the noticed point.
Next Source Specifiesthe source pattern that isfurther to the right of the portion read
with Current Source. You can look at up to eight pointsof data.
Code Conversion Table
