The Setup Menu Screen
This section describes the key elements of the Setup menu screen, how to load a
file, how to set the signal output parameters, and how to enable signal output.
Setup Menu Screen Elements
To open the Setup menu screen, push the SETUP front-panel button. Refer to
Figure 3–2. Table 3–2 describes the Setup menu screen elements. Table 3–3
describes the bottom menu functions. Following Table 3–3 the menu operations
are discussed in detail, grouped by bottom menu function.
Clock
frequency Run mode
Instrument
status
Bottom menu
Side
menu
area
Waveform
parameter icons
Data record length of
active channel waveform

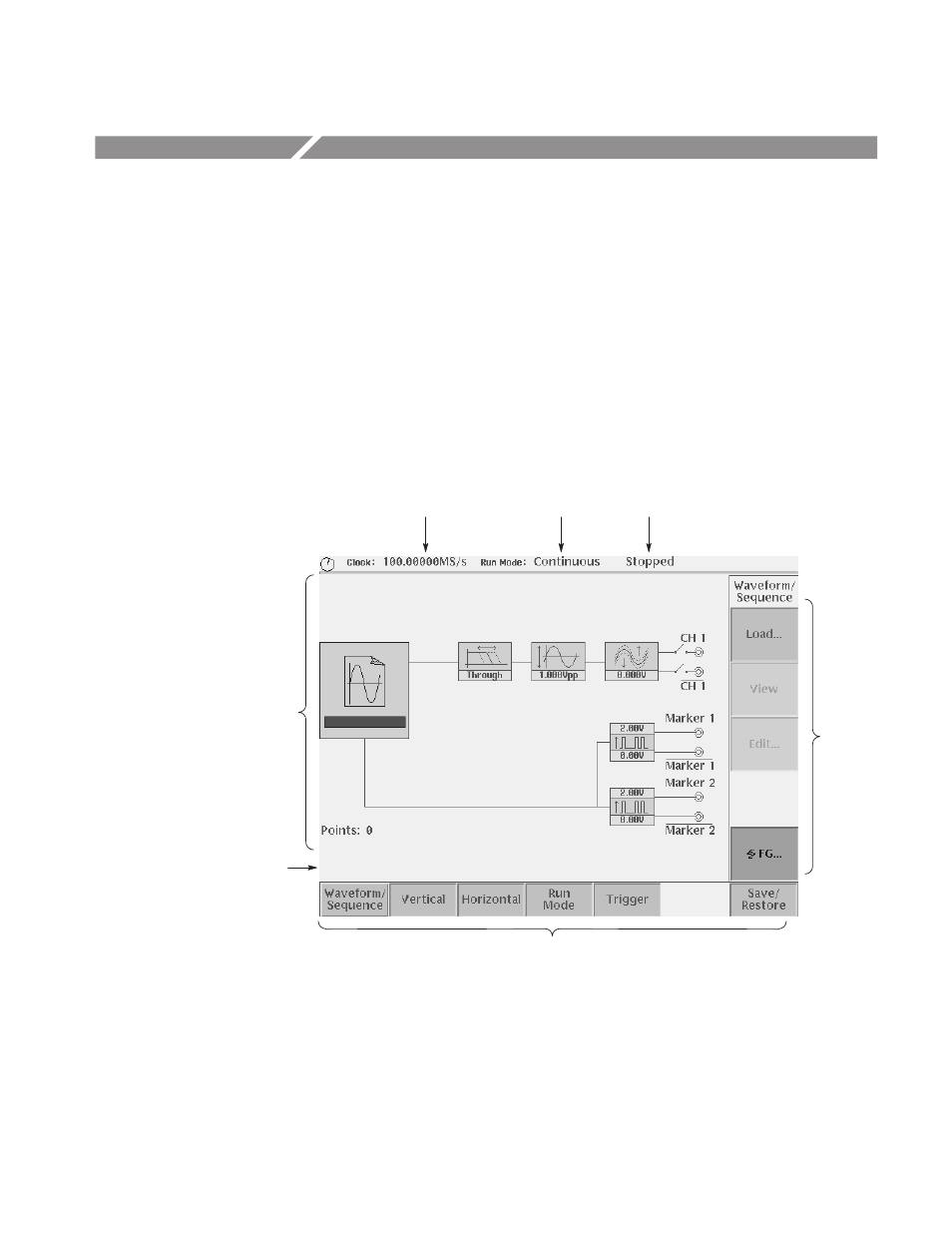

Figure 3-2: Setup main screen
