Operating Basics
2-26
AWG610 Arbitrary Waveform Generator User Manual
To display the main Edit screen, push the EDIT front-panel button. If there is no
waveform file currently loaded into the edit buffer, the instrument displays the
main Edit screen and a list of files in the current drive, as shown in Figure 2–19.
Table 2–10 lists the bottom menu button functions. If there is a waveform loaded
for editing, the screen will show the loaded waveform in the appropriate editor.
File list

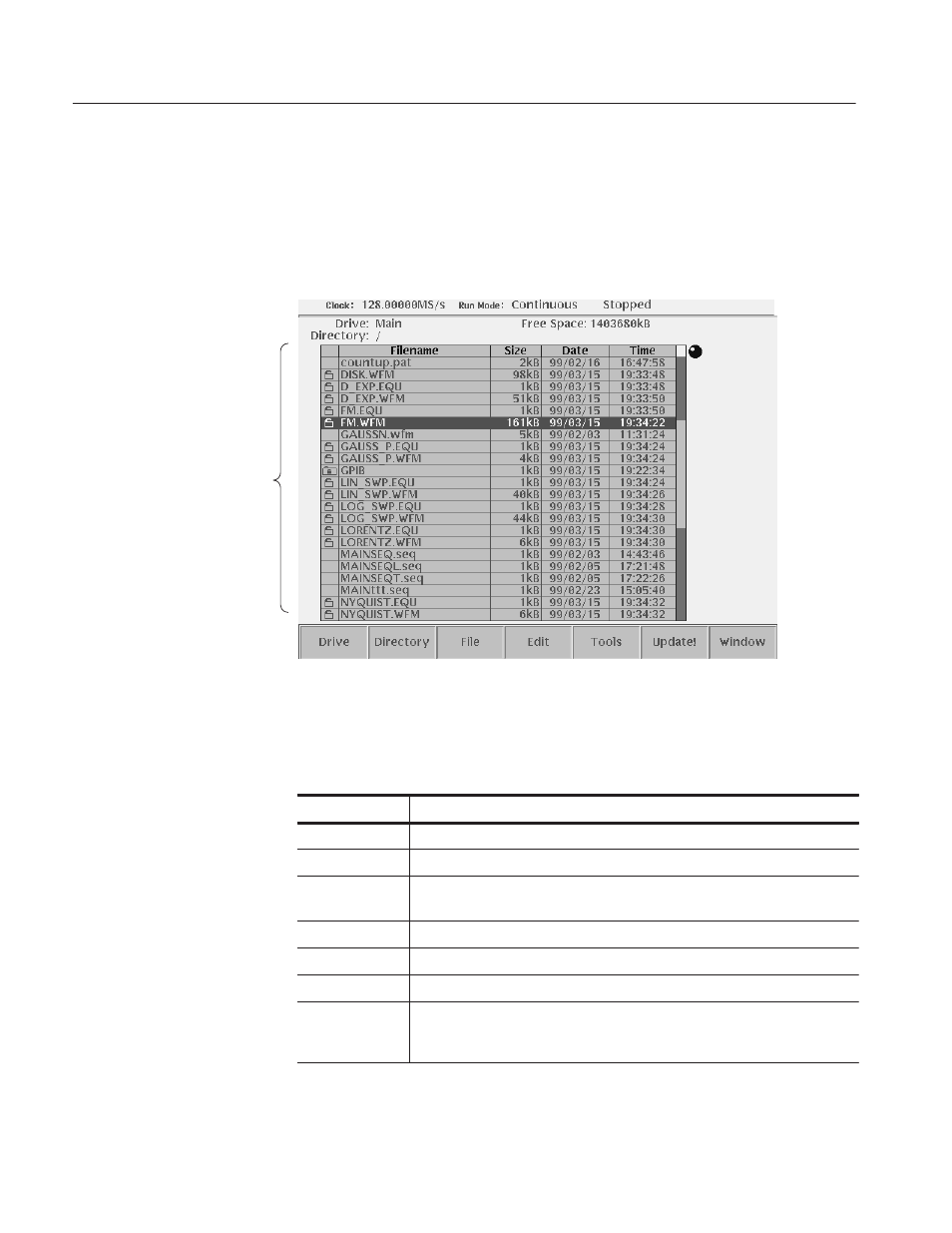

Figure 2-19: Main Edit screen
Table 2-10: Edit screen bottom menu buttons
Button Description
Drive Specifies the current drive to use for loading or storing waveform files
Directory Letsyou navigate and create directorieson the current drive
File Lets you copy, rename, delete, and assign attributes to files on the current
drive
Edit Displays the Edit side menu for editing existing or new waveform files
Tools Displays the Tools side menu for importing and converting file data
Update! Updatesthe waveform file name list
Window Lets you open a single window or double window that displays a file list of a
specified directory or drive. Refer to page 2-21 for information about double
windows.
Main Edit Screen
