AWG610 Arbitrary Waveform Generator User Manual
3-45
The Graphical Waveform Editor
This section describes the Graphical Waveform editor. The Graphical Waveform
editor lets you create and/or edit an analog waveform. You can choose to display
the waveform graphically or in table format. Refer to page 3–99 for information
on editing waveform data using a table editor.
Editor Screen Elements
To open a new window for graphical waveform editing, push EDIT(front)
!
Edit(bottom)
!New Waveform (side). Figure 3–4 shows the Waveform Editor
screen elements. Table 3–7 describes the editor screen elements. Table 3–8
describes the bottom menu functions. The sections that follow Table 3–8
describe the menu operations in detail.
Window number
Waveform
record length
Waveform
file name
Clock
frequency
Run
mode
Waveform display
Marker display
Status
display area Knob icon
Active
cursor
position
Left cursor
position
field and
data value
CursorĆtoĆcursor
distance
(edit area)
Position of data
viewed in overall
waveform record
Right cursor
position
field and
data value
Active cursor

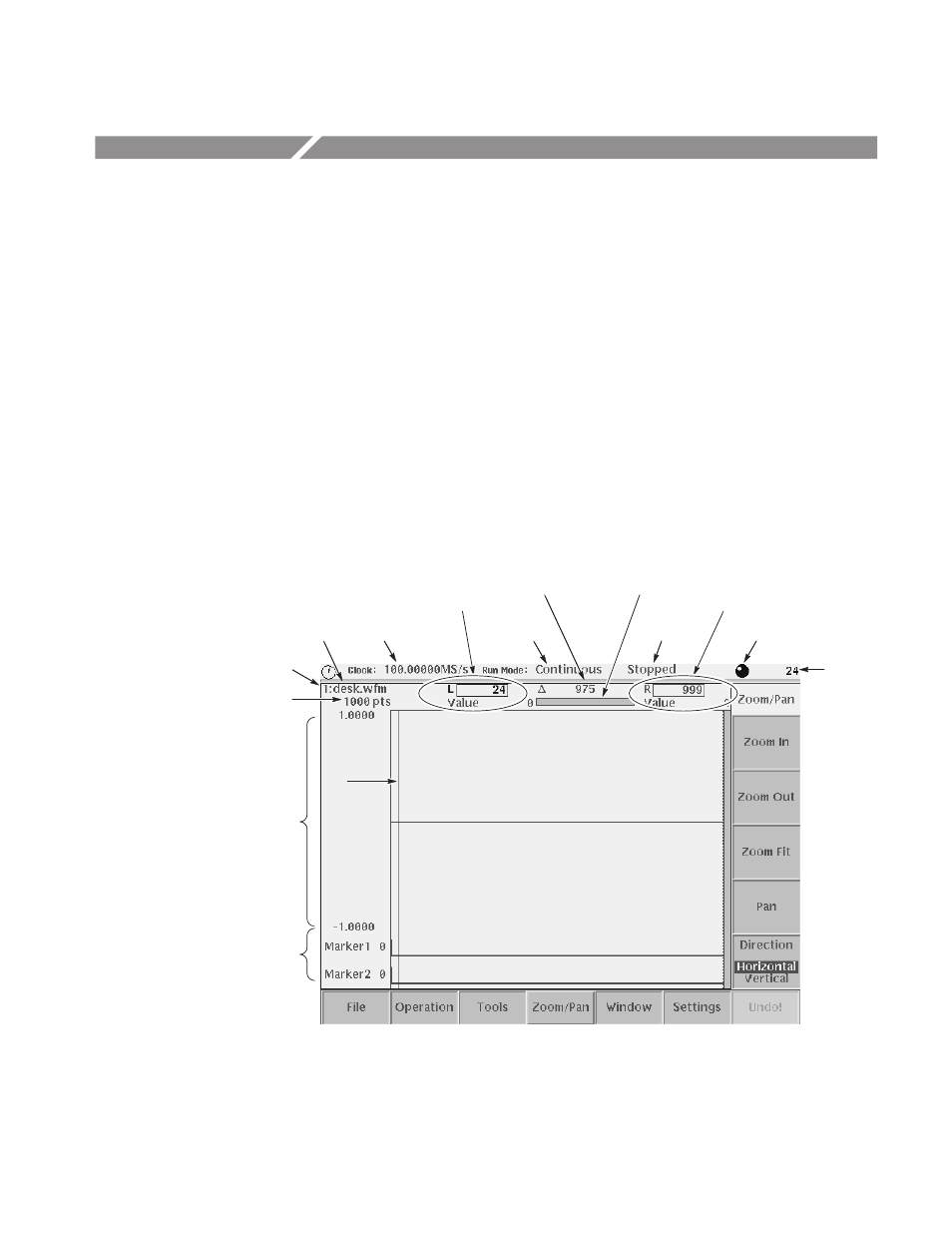

Figure 3-4: Waveform editor initial screen
