Appendix A: Specifications
A-12
AWG610 Arbitrary Waveform Generator User Manual
Table A-18: Mechanical
Characteristics
Description
Net weight (without package)
17 kg (37.5 lb)
Dimensions (without package)
Height
178 mm (7.0 in)
194 mm (7.64 in) with Feet
Width
422 mm (16.6 in)
434 mm (17.1 in) with Handle
Length
560 mm (22.0 in)
602 mm (23.71 in) with Rear Feet
Net weight (with package)
25 kg (55.2 lb)
Dimensions (with package)
Height
370 mm (14.6 in)
Width
560 mm (22.0 in)
Length
805 mm (31.7 in)
[mm]

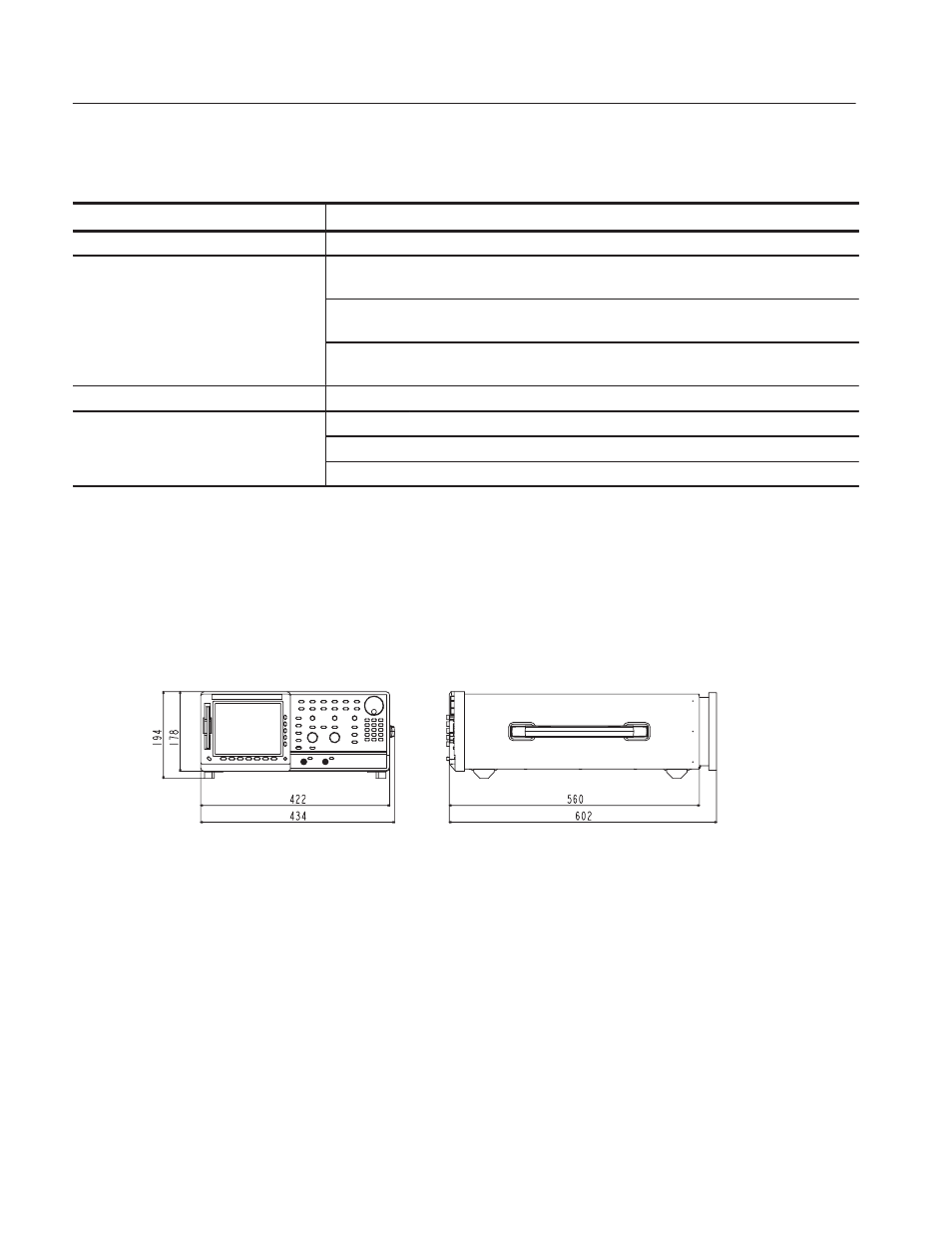

Figure A-1: Dimensions
