Site Configuration
5-34
Range: 000.000.000.001-255.255.255.254

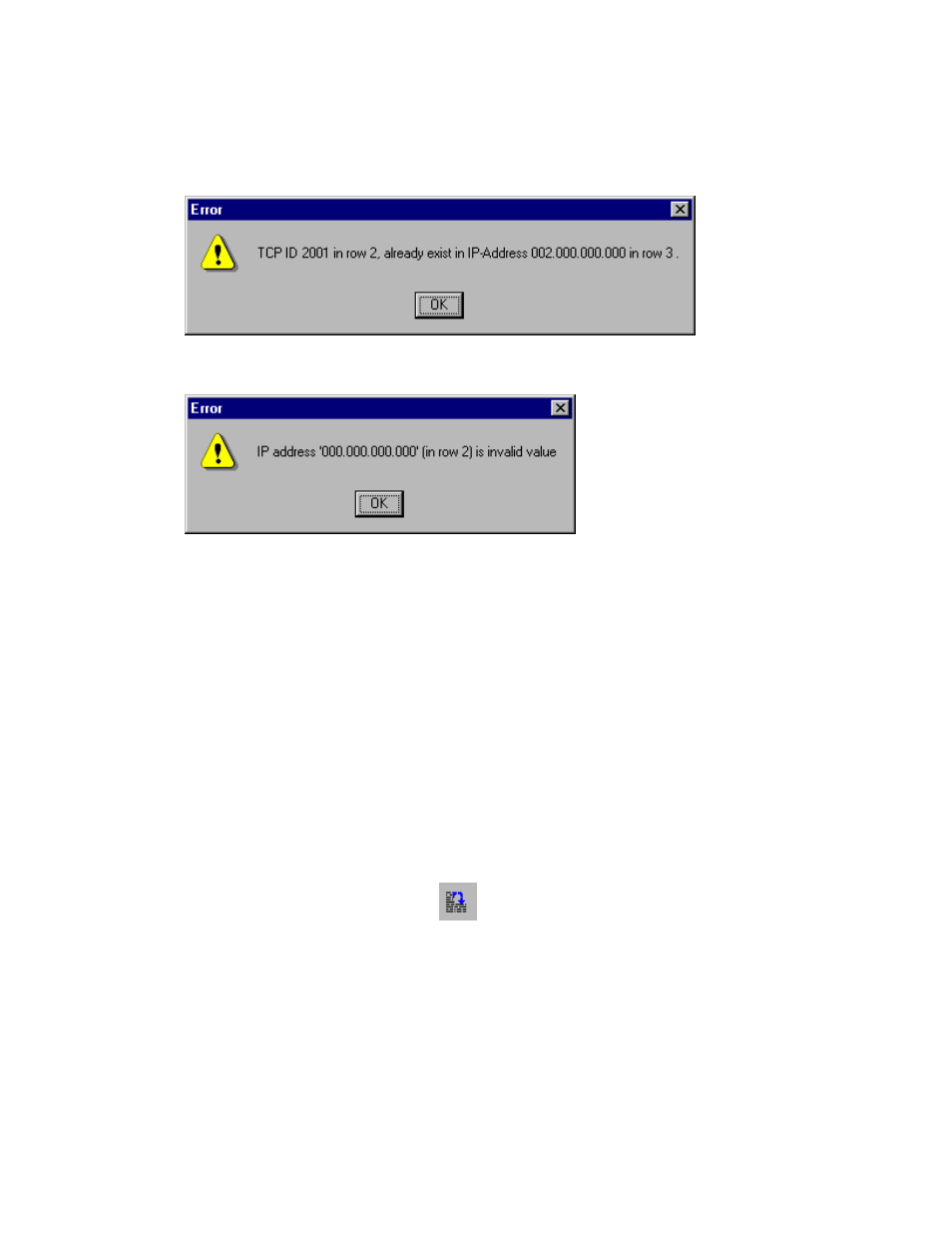

If you accidentally type an IP address which has already been assigned to an existing Port, the
following message appears when you try to Save or enter Advanced parameters:
If you accidentally type an invalid address or don’t change the default address, the following
message appears:
TCP Port ID
Double-click this cell to change the default value to the corresponding four-digit TCP Port ID.
The TCP Port IDs must be unique in the same Terminal Server IP address. Default value is
2001.
Link ID
This column is used to assign a communications link to the port. Select the appropriate Link
ID from the drop-down list box. Possible values are RSlink(x) and LINE(x), where (x) is a
specific RSlink number or a LINE number.
The total number of items listed, reflects the configuration in the MDLC Links Configurator
utility.
This field defaults to the first available (unused) Link ID in the drop-down list box.
Description
Double-click this column to enter a description of the port (up to 40 characters).
Insert Group of Ports
Use the Insert Group of Ports button to insert a group of ports linked to the same IP
address group. The following screen is displayed:
