MDLC Links Configurator
5-74

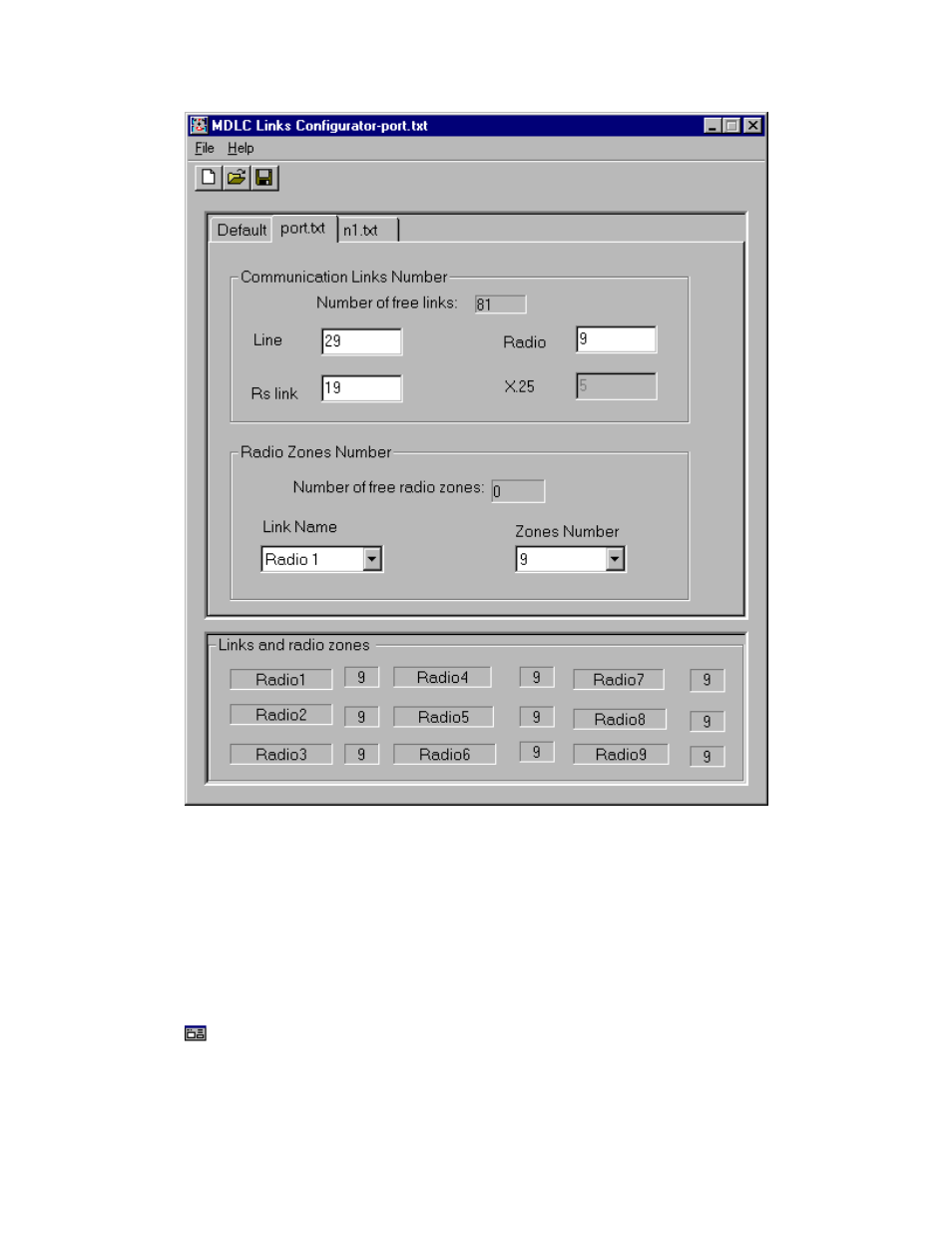

The first time you open the tool, two tabs will be available, Default and port.txt. The Default
screen contains the values set by the manufacturer and cannot be modified. The port.txt screen
above displays the (active) current configuration. This configuration file is initially the same
as the Default, but both the content and the tab name can be modified.
At this point, you can choose to view either the Default dialog box or another existing dialog
box (e.g. port.txt above), by clicking on the appropriate tab at the top of the screen.
To access another configuration (e.g. n1.txt above), simply click on the appropriate tab. You
can open another configuration file or several files, using the Open option of the File menu.
Dialog box parameters- Communications Link Number
This section is used to change the number of links assigned to each medium.
