Adding Terminal Server Ports
6-8

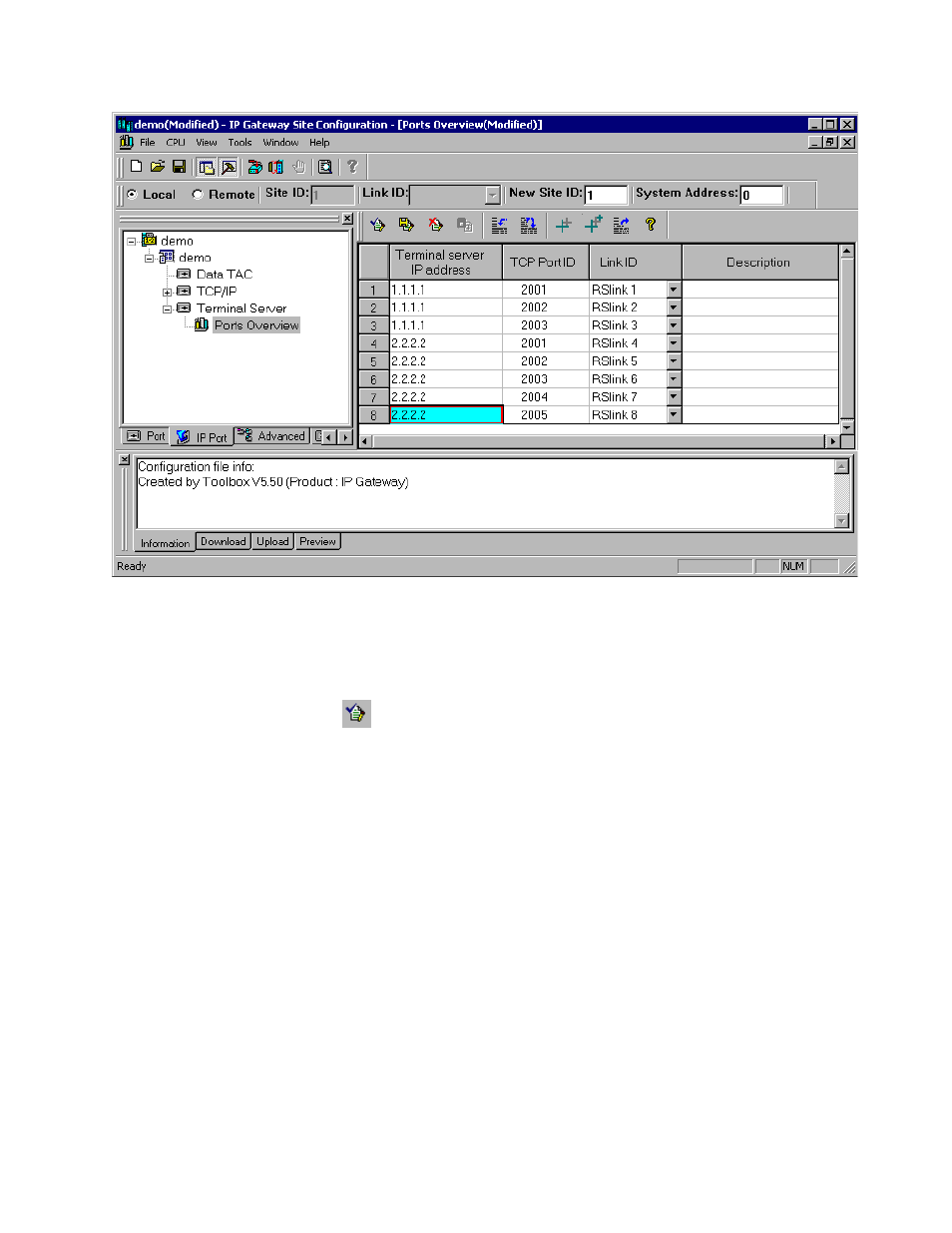

4. Define the Terminal Server ports. Every definition includes the Terminal Server IP
address, the specific TCP port assignment for every physical port, and the MDLC link ID
for that port.
5. Click on the ‘Ok’ button to save the Terminal Server ports.
Configuring Terminal Server to work with IP Gateway
Configuration
Configure the Terminal Server to meet the needs of TELNET TCP\IP based connection.
Assign an IP address to the Terminal Server, and define each port allocated to MDLC as a
TELNET listener, or in some cases as a SERVICE with a unique TCP port ID.
Activate TELNET in a binary profile, and disable all control characters, TELNET commands
and options.
Disable flow control, and do not log out of the port under any condition.
Applying the configuration will allow the IP gateway to establish connection with all of its
Terminal Server ports right after power up, even if there are no RTUs attached to them.
