5-93
SNMP Configurator
General
The SNMP Configurator program allows the definition of the SNMP and the Motorola SSC
(System Support Center) parameters. Selecting the SSC option sets the Gateway MIB to
support Motorola specific OmniLink and SmartZone systems.

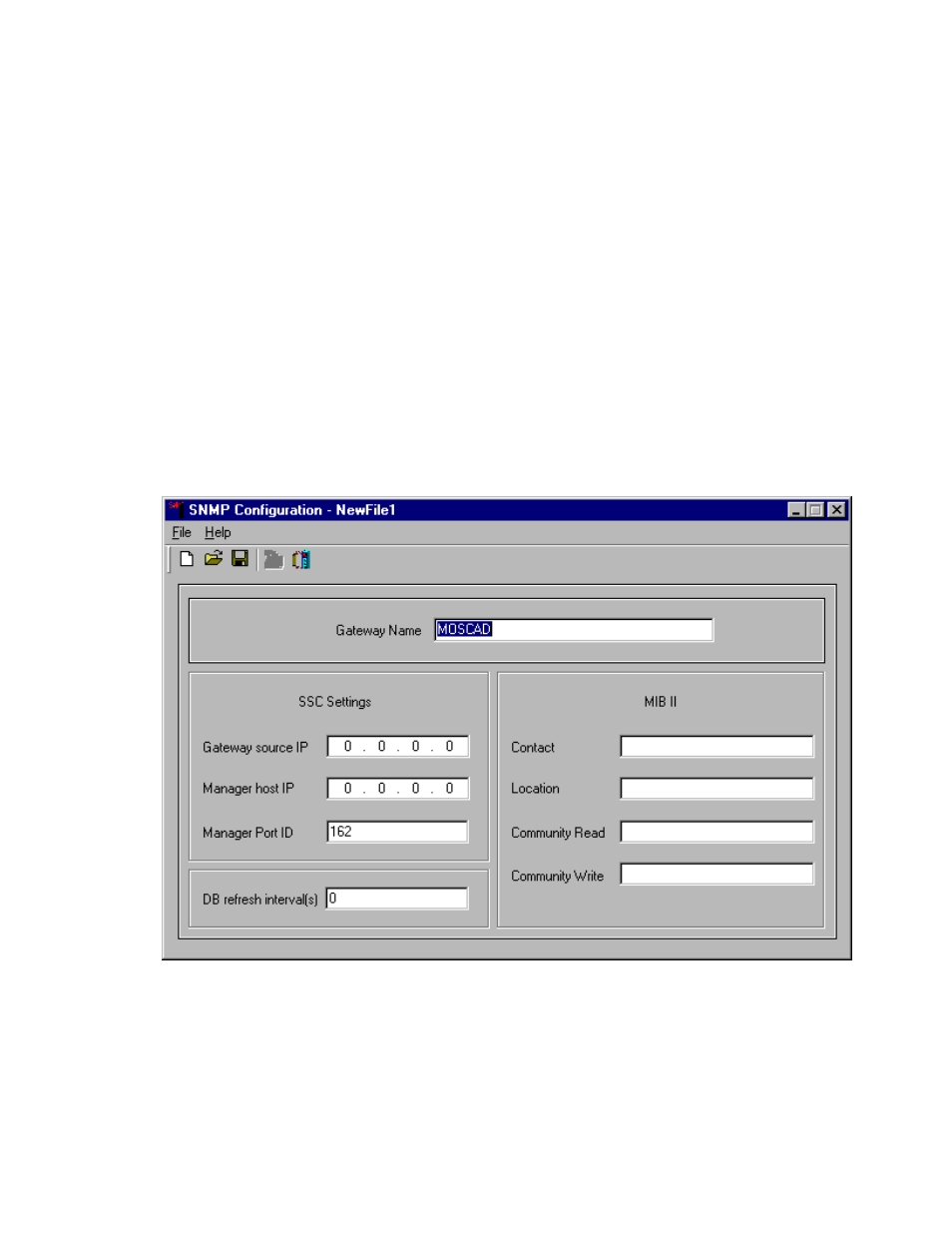

The SNMP Configurator Window
The SNMP Gateway Configurator Window is used to set the SNMP configuration for the IP
Gateway. After activating the program from the IP Gateway Toolbox Group, the following
dialog box is displayed:
Gateway Name
The Gateway Name identifies the name of the Gateway’s location/zone. The NMC (Network
Management Control Center) application retrieves this name by using the IP Gateway MIB.
SSC Settings
Gateway source IP
The IP Gateway sends SNMP Trap_PDUs that include a virtual “Gateway source IP” address.
