SW Diagnostics & Loggers
5-164
Save As
The Save As.. command saves the current logger information under a different file name. The
Save As dialog box defaults to the appropriate logger sub-directory of the ToolBox log
directory (c:\Itbox550\log), based on the active logger (Errlog, Diaglog). If, for example, the
Error Logger is active, the default log file name incorporates the window instance (Errlog1)
and the date and time: Errlog102.30.01_15.25.32.log. Both the default name and directory of
the log file can be changed in the dialog.

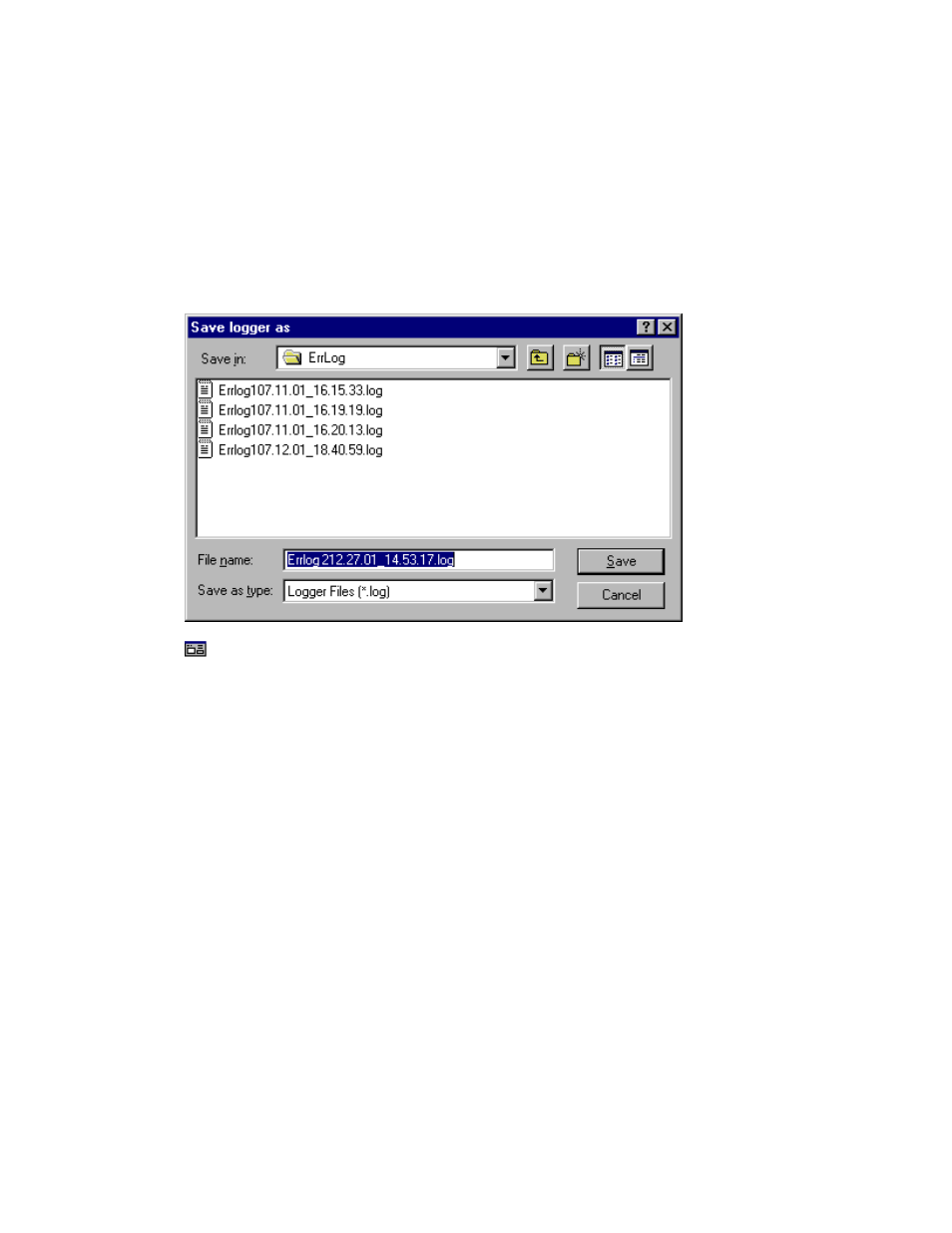

The command opens the dialog box shown below.
Dialog box parameters
Use the parameters in the order specified below. Normally you’ll only use the File Name
parameter.
Save in
If the currently displayed directory is not the correct one, double-click the drive letter at the
right of the Save in list and locate the directory. To access sub-directories, double-click parent
directories.
List Files of Type
This box shows the type (extension) of the files currently displayed in the File Name list. If the
displayed file type “filter” is not .log, open the drop-down list and select the .log type.
File Name
The file name (e.g. Errlog102.30.01_15.25.32.log) represents the current log file of the active
utility and incorporates the window instance (Errlog1) and the date/time. The tool
automatically adds the .log extension to the file.
