Hardware Installation

3-5

Stand-alone Gateway unit

The IP Gateway desk-top unit without radio, PS/Charger and box, to be placed on a desk or
installed in the central facility by the user. The user must supply 12V DC.

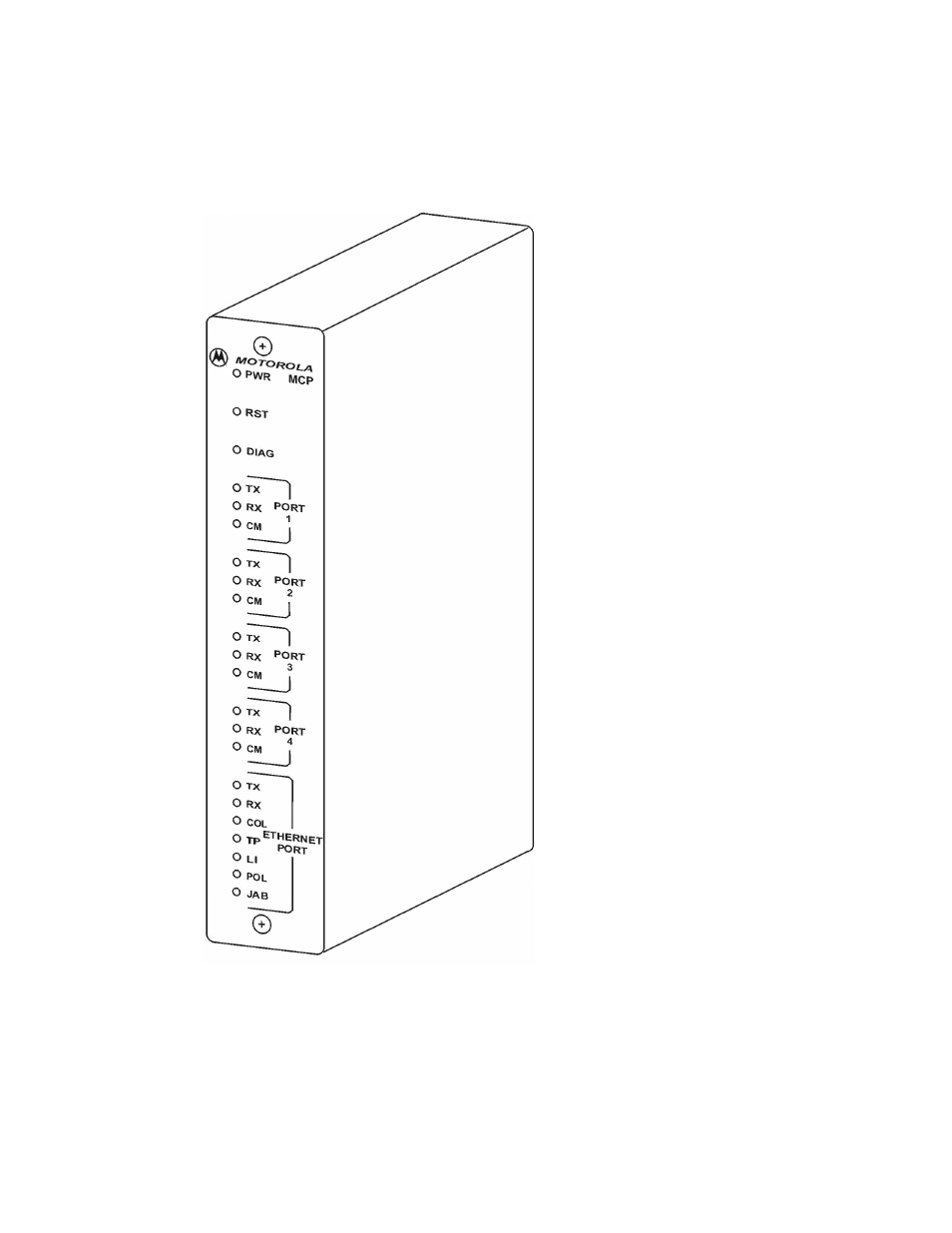

Figure 3-3: Stand-alone IP Gateway
