98 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
7.7.3 Installing a 3.5-inch HDD in 5.25-inch dummy cover

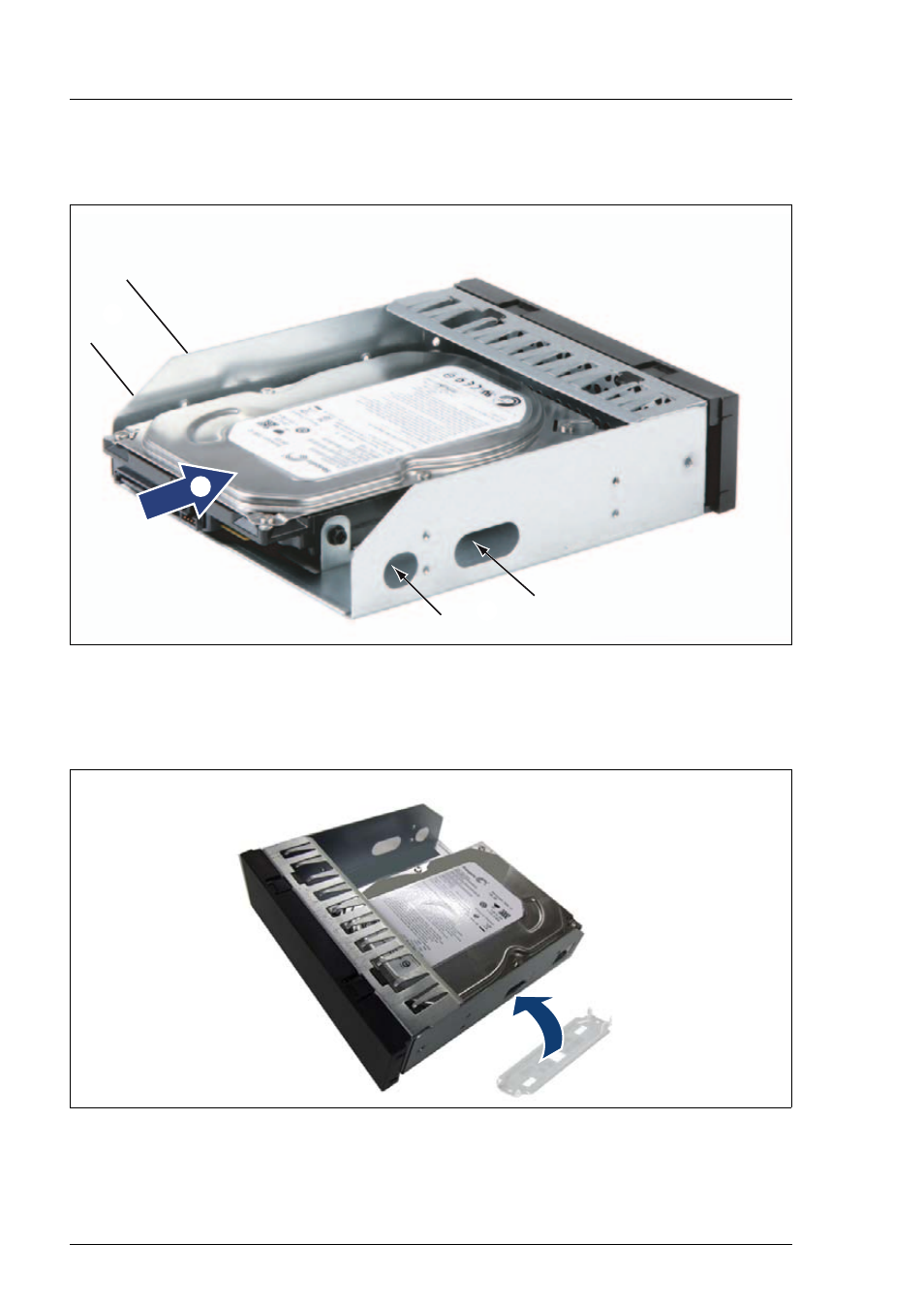

Figure 35: Installing the HDD in the 5.25-inch dummy cover
Ê
Insert the HDD into the 5.25-inch dummy cover (1) and fasten the four
screws (2).
Figure 36: Connecting the fixation plate to the 5.25-inch dummy cover
Ê
Align the four pins of the fixation plate with the screw holes on the 5.25-inch
dummy cover.
