MX130 S2 Upgrade and Maintenance Manual 241
Cables

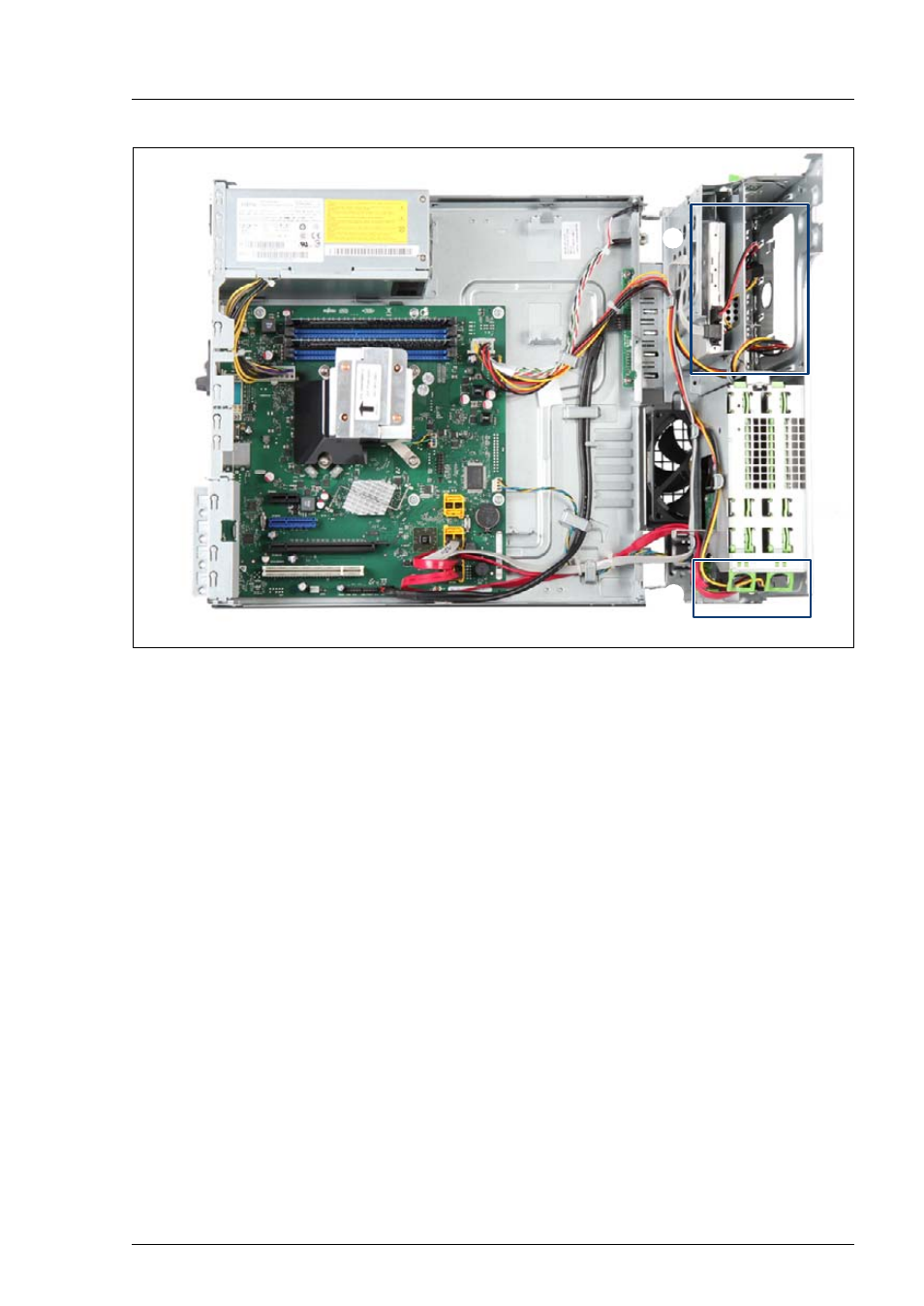

Figure 154: Disconnecting the power cable from installed drives
Ê
Disconnect all power cable connectors from the installed drives (1).
It depends on your configuration which drives are installed. For details refer
to section
"HDDs and accessible drives" on page 79 .
Ê
Disconnect the power cable connectors P5 and P6 from the installed HDDs
(2).
For details refer to "Replacing the power cable" on page 239 .
Ê
Remove the power cable from the chassis.
/
