120 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives

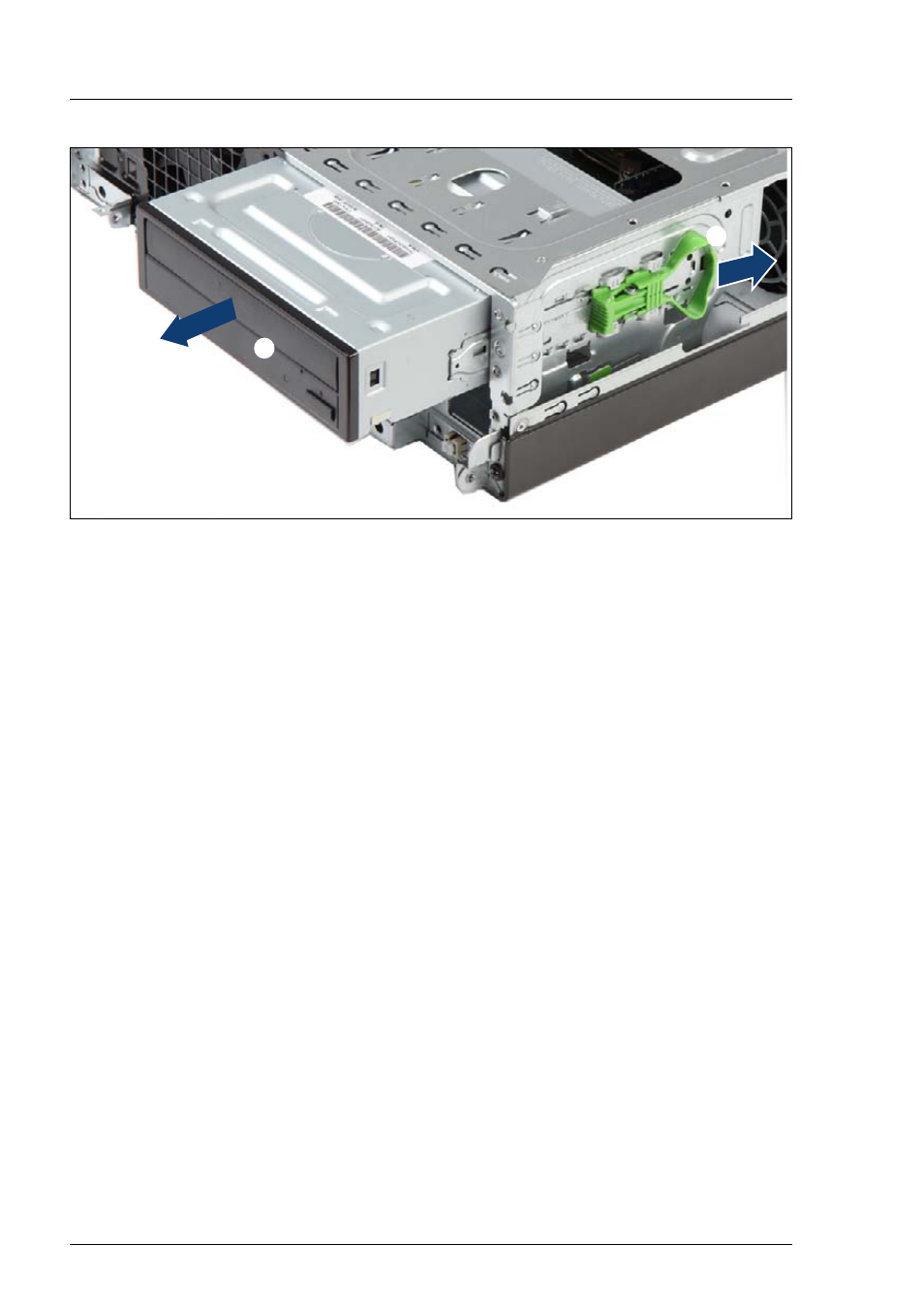

Figure 57: Removing HH ODD
Ê
Push the green handle backward (1) and pull the half-height ODD out of the
bay (2).
Ê
Disconnect the fixation plate from the HH ODD cage.
V
CAUTION!
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
7.14.4 Concluding steps
Perform the following procedures to complete the task:
Ê
Install the 5.25-inch dummy cover as described in section "Installing 5.25-
inch dummy cover" on page 110 .
Ê
Follow all procedures described in section "Closing the server" on page 54 .
Ê
If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section
"Enabling
BitLocker functionality" on page 66 .
/
