FUJITSU PRIMERGY MX130 S2 User Manual
Page 140
140
Upgrade and Maintenance Manual
MX130
S2
HDDs and accessible drives
Ê
Open the front cage as described in section

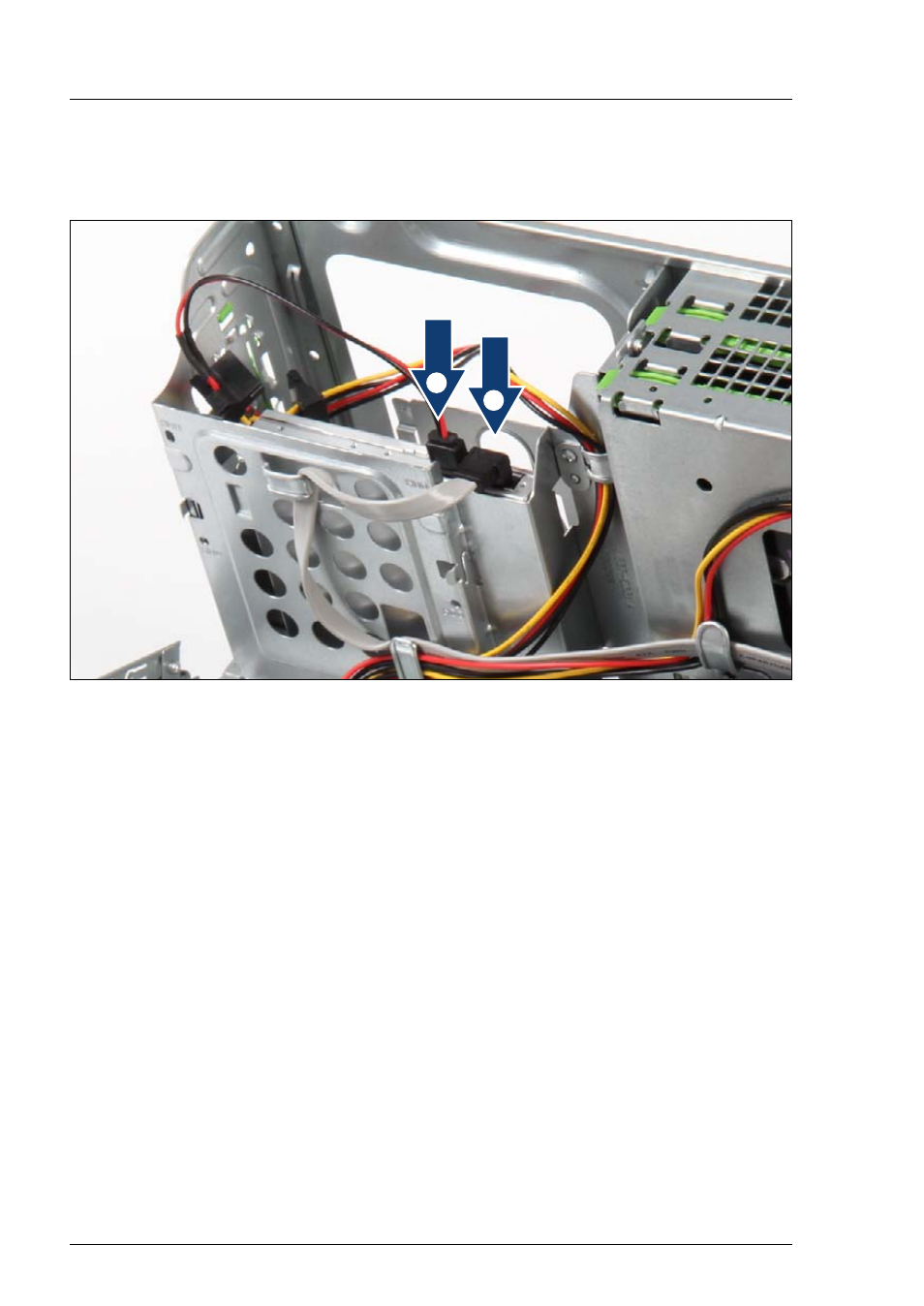

Figure 77: Connecting cables to the ODD
Ê
Connect cables to the ODD.
1
Power cable connector P4 (see
"Power cable T26139-Y4012-V211"
2
SATA cable T26139-Y4028-V102
/
0
