102 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives

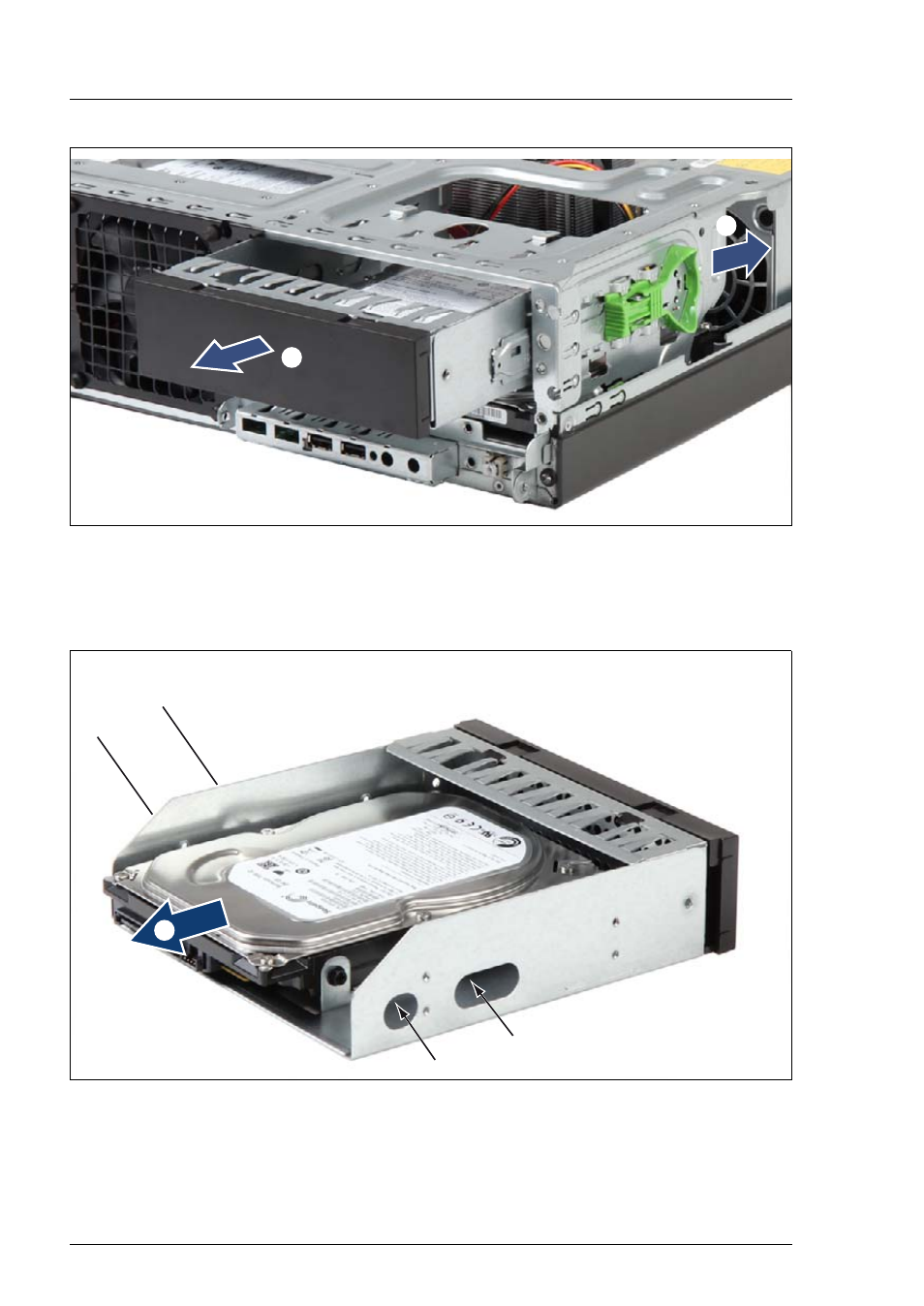

Figure 40: Removing the 5.25-inch dummy cover with HDD out of the the chassis bay
Ê
Push the green handle backward (1) and remove the 5.25-inch dummy
cover with HDD out of the the bay (2).
Figure 41: Removing the HDD out of the 5.25-inch dummy cover
Ê
Remove the four screws (1) and remove the HDD out of the 5.25-inch
dummy cover (2).
/
