208 Upgrade and Maintenance Manual MX130 S2
System board and components

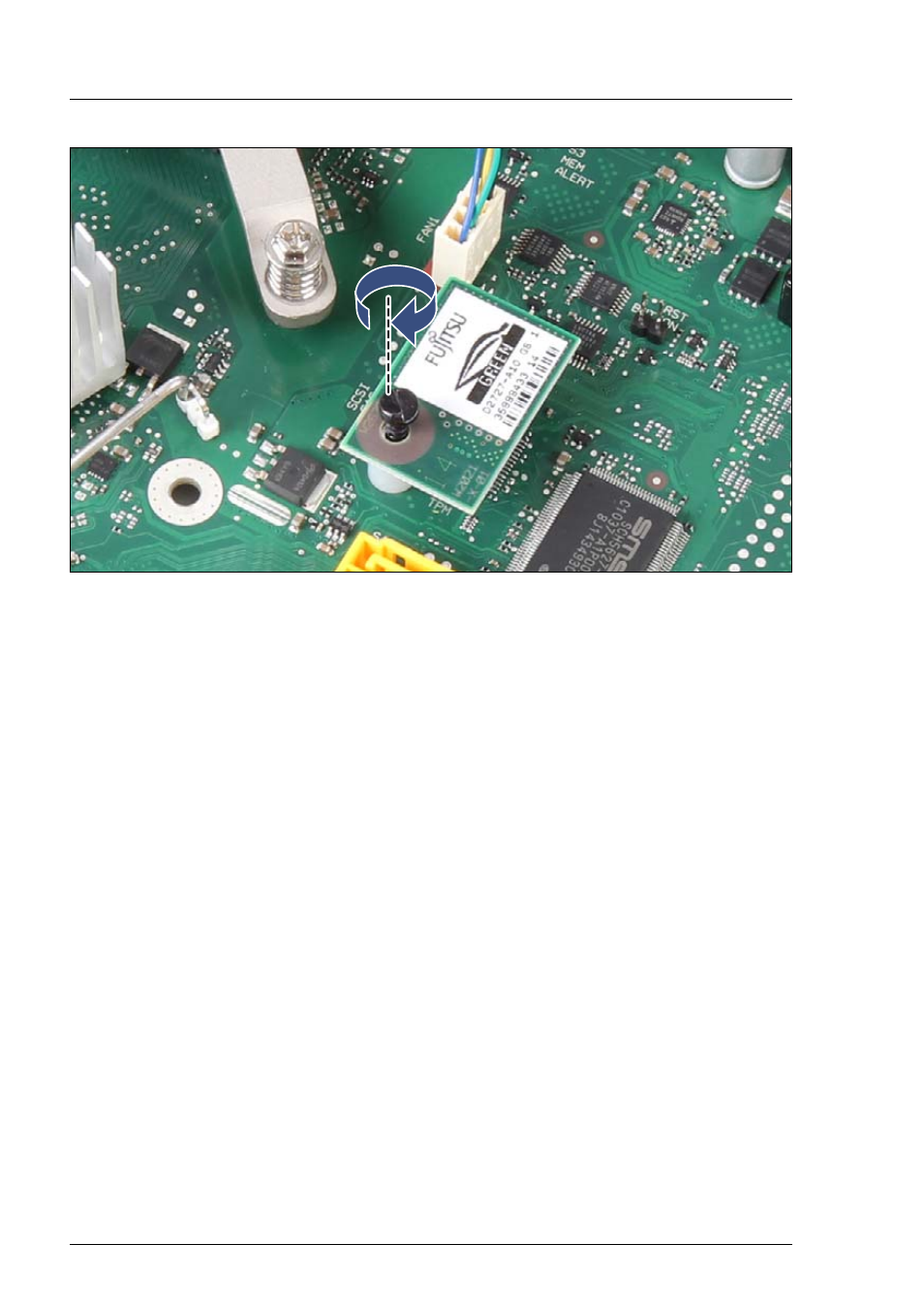

Figure 132: Securing the TPM board
Ê
Secure the TPM board with the TPM special screw using the TPM bit insert.
I
Do not fasten the screw too firmly. Stop as soon as the head of the
screw lightly touches the TPM board.
12.2.1.4 Concluding steps
Perform the following procedures to complete the task:
Ê
Follow all procedures described in section "Closing the server" on page 54 .
Ê
Enable TPM in the system board BIOS. Proceed as follows:
Ê
Switch on or restart your server.
Ê
As soon as the startup screen appears, press the [F2] function key to
enter the BIOS.
Ê
Select the Advanced menu.
Ê
Select the Trusted Computing submenu.
Ê
Set the TPM Support and TPM State settings to Enabled.
Ê
Under Pending TPM operation, select the desired TPM operation mode.
Ê
Save your changes and exit the BIOS.
