114 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives

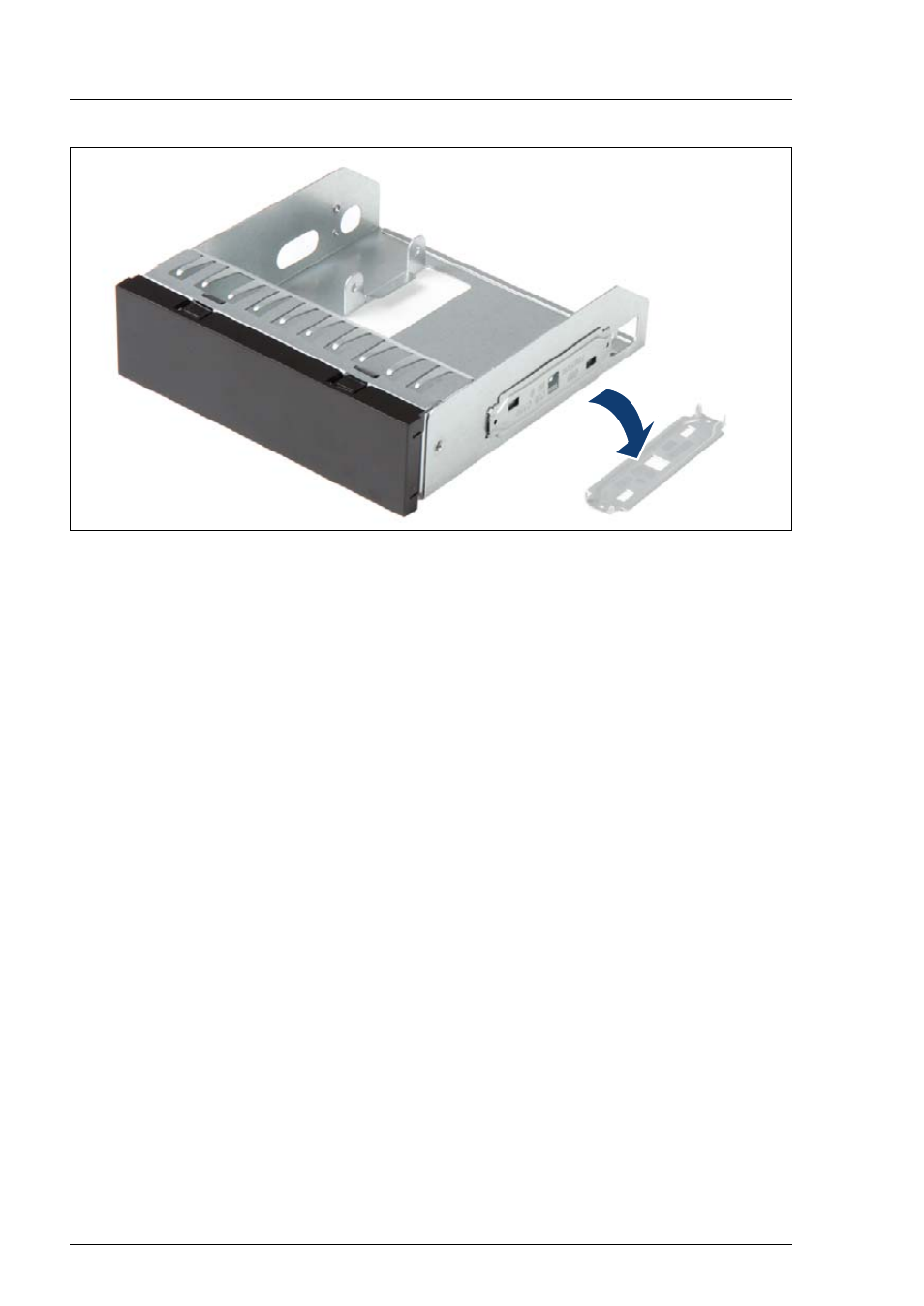

Figure 53: Removing the fixation plate of the 5.25-inch dummy cover
Ê
Remove the fixation plate from the dummy cover.
V
CAUTION!
Save the fixation plate for future use.
You have to install the fixation plate to the different drive cages before
installation.
7.12.4 Concluding steps
Perform the following procedures to complete the task:
Ê
Install the 5.25-inch dummy cover as described in section "Installing 5.25-
inch dummy cover" on page 110 .
Ê
Follow all procedures described in section "Closing the server" on page 54 .
