116 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives
7.13.3 Installing an ODD in 5.25-inch chassis bay
Ê
Connect the fixation plate to the ODD.

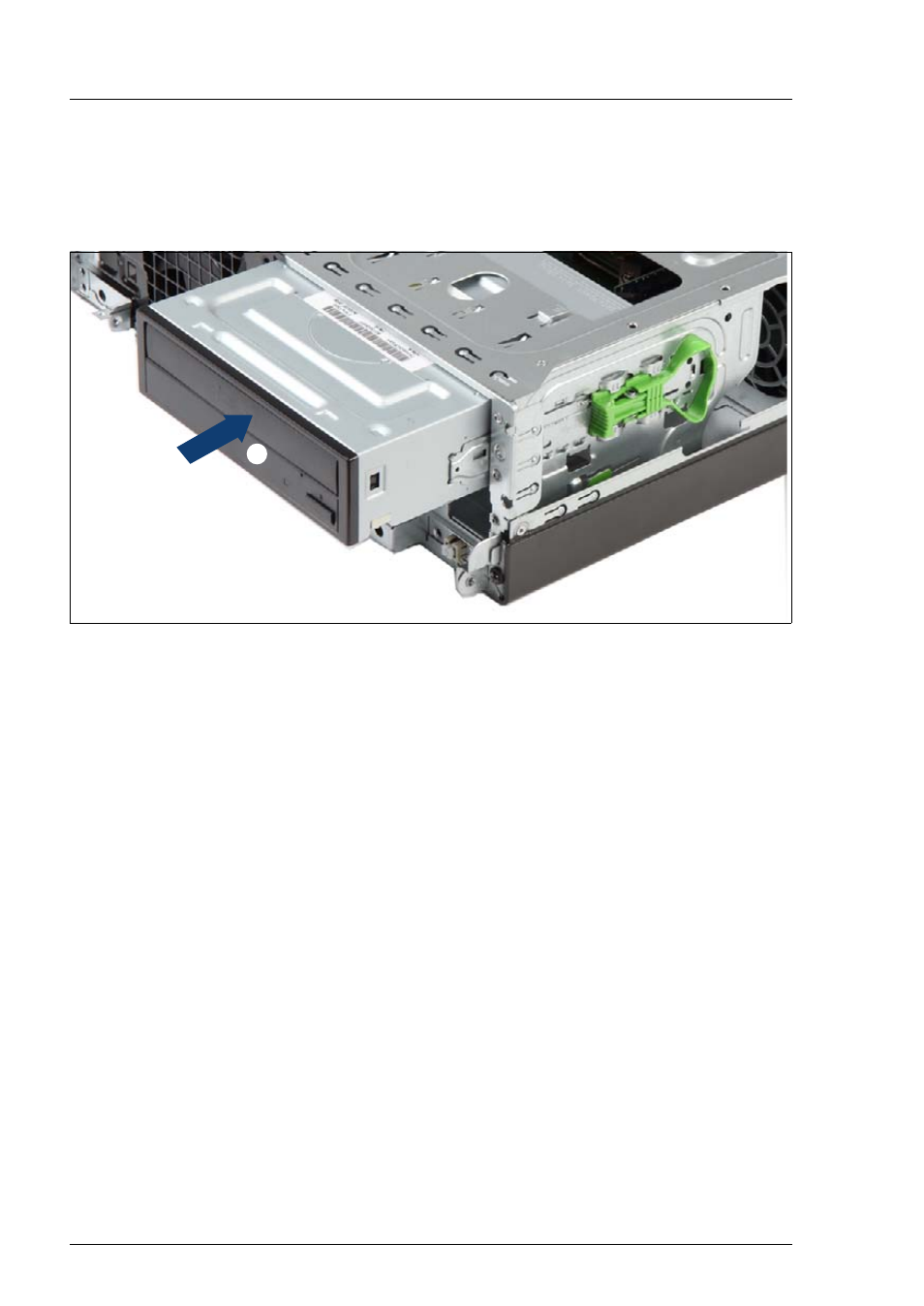

Figure 54: Installing HH ODD
Ê
Insert the half-height ODD in the bay (1) until it snaps into place.
Ê
Open the front cage as described in section "Opening the front cage" on
page 52 .
/
