128

Upgrade and Maintenance Manual

MX130

S2

HDDs and accessible drives

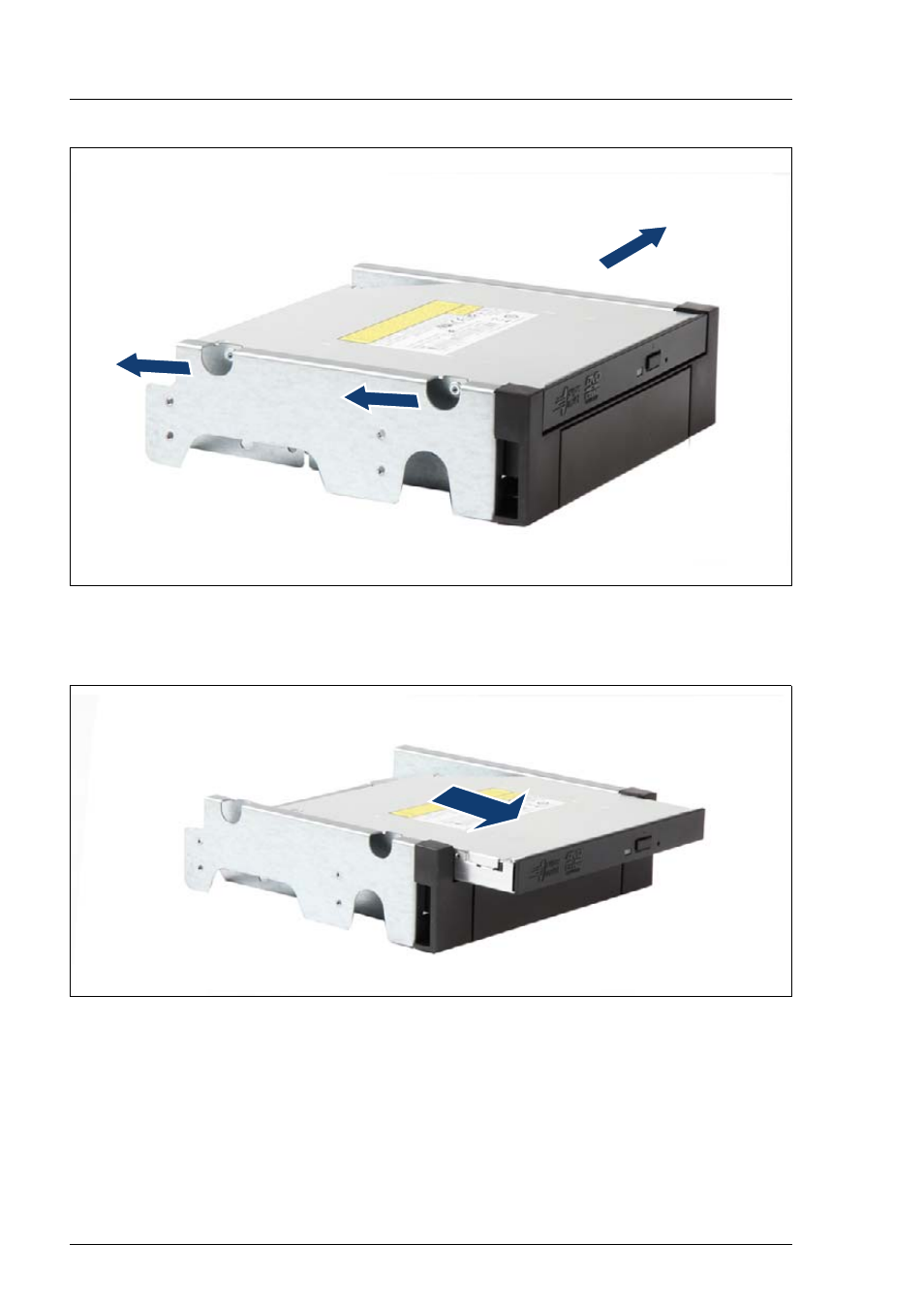

Figure 65: Removing the screws

Ê

Remove the three screws.

Figure 66: Removing the ODD out of the 5.25-inch ODD/HDD bracket

Ê

Remove the ODD from its installation bay.
