Page 137
MX130 S2
Upgrade and Maintenance Manual
137
HDDs and accessible drives
7.19.3 Removing the ODD filler cover

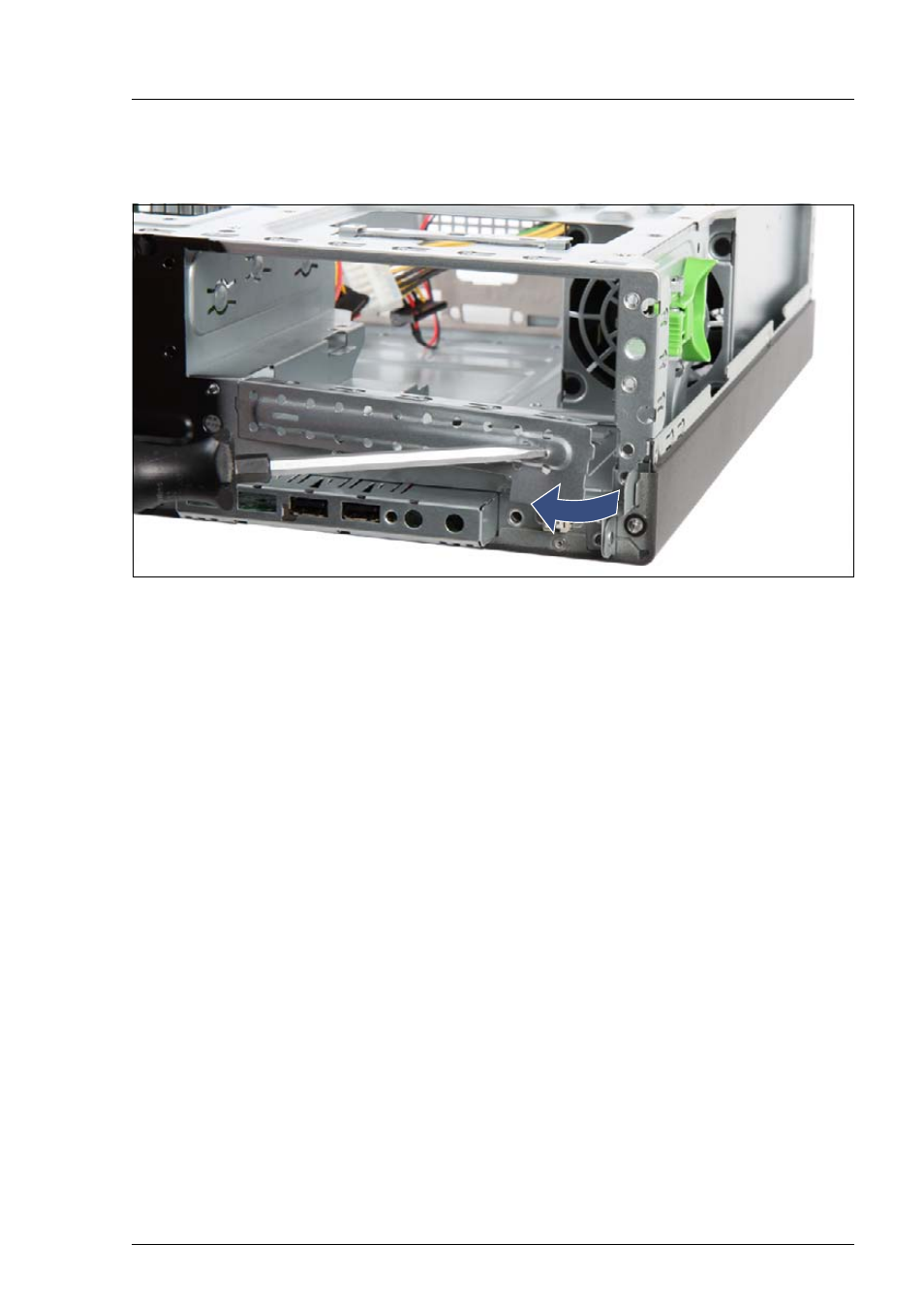

Figure 73: Removing the ODD filler cover
Ê
Using a slotted screw driver, pry the ODD filler cover out of its bay and
remove it from its installation bay.
V
CAUTION!
The ODD filler cover is not for future use. You cannot install the ODD filler
cover again.
Do not pry out the ODD filler cover, if you do not install a slimline ODD.
