FUJITSU PRIMERGY MX130 S2 User Manual
Page 154
154
Upgrade and Maintenance Manual
MX130
S2
System fan

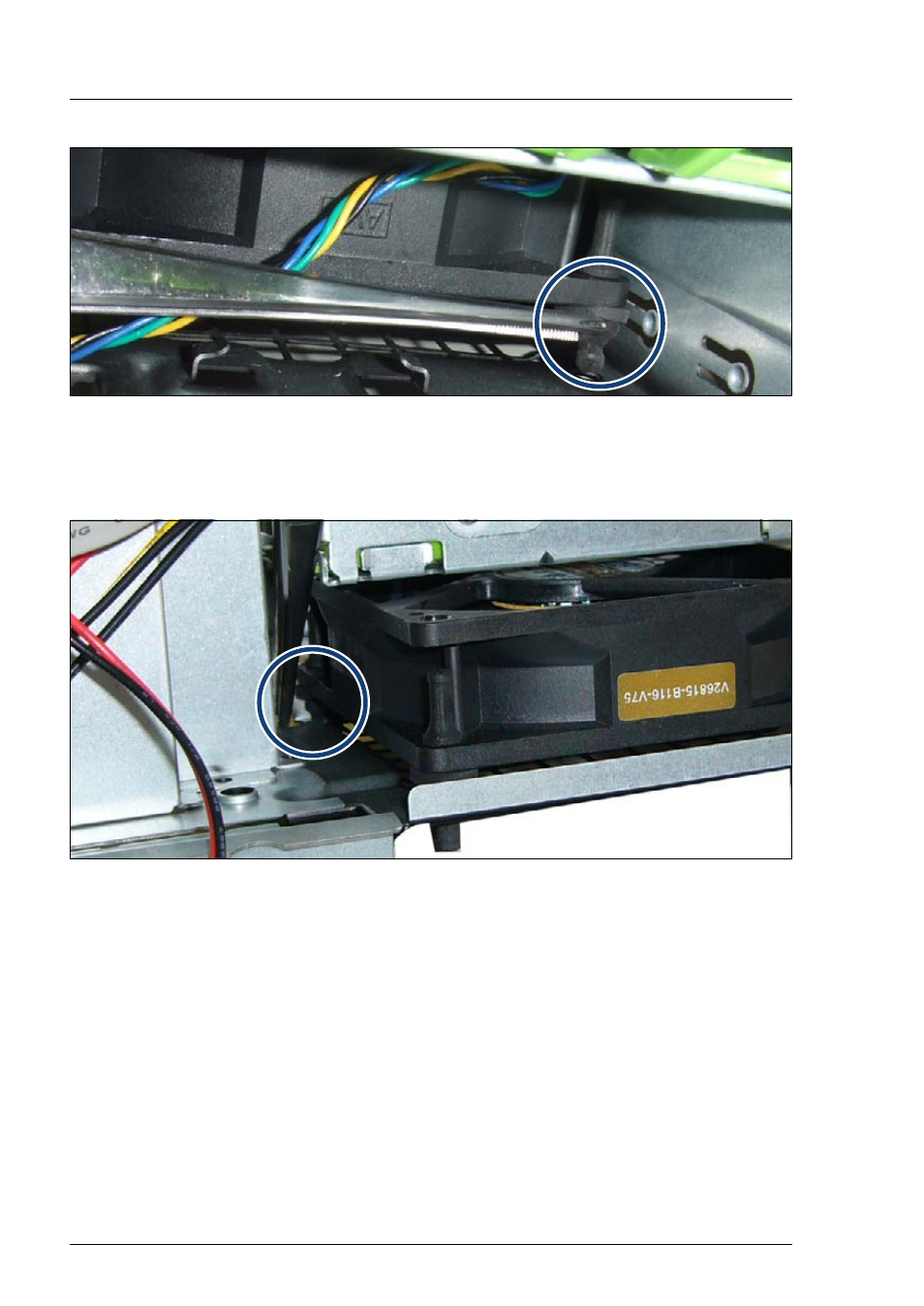

Figure 90: Fitting front fan rivet C
Ê
Use a pincer to fit front fan rivet C in the hole in the chassis fan slot (see
circle).
Figure 91: Fitting front fan rivet D
Ê
Use a pincer to fit front fan rivet D in the hole in the chassis fan slot (see
circle).
C
D
