MX130 S2 Upgrade and Maintenance Manual 153
System fan

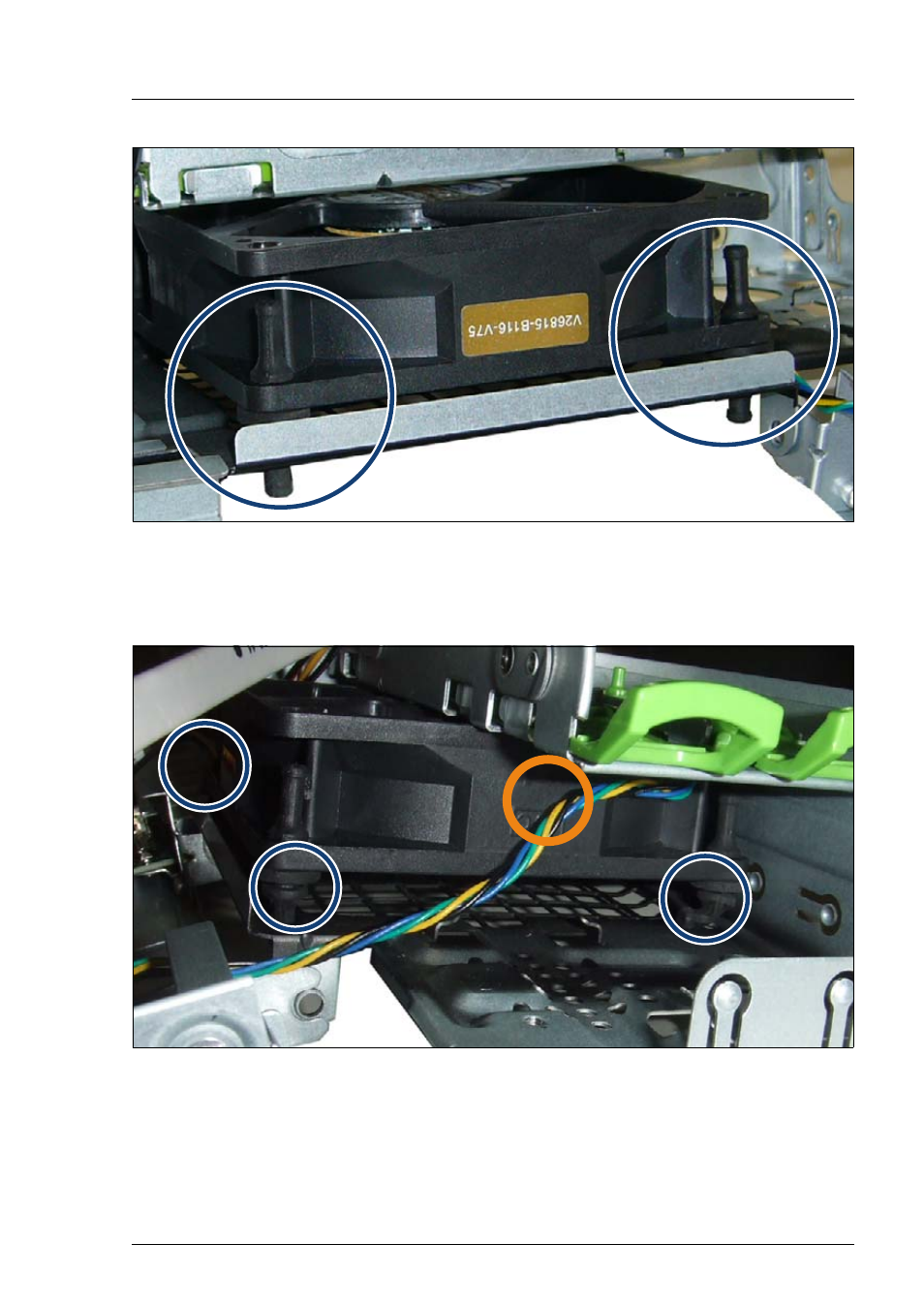

Figure 88: Position of front fan rivets A and B
Ê
Make sure that both front fan rivets A and B fit the holes in the chassis fan
slots (see circles).
Figure 89: Position of all front fan rivets
Ê
The two front fan rivets C and D also must fit the holes in the chassis fan
slots (see circles).
I
Note that front fan rivet D is hidden (see orange circle).
A
B
A
B
D
C
