Page 218: Mounting the system board
218
Upgrade and Maintenance Manual
MX130
S2
System board and components
12.3.4 Installing the system board
12.3.4.1 Mounting the system board

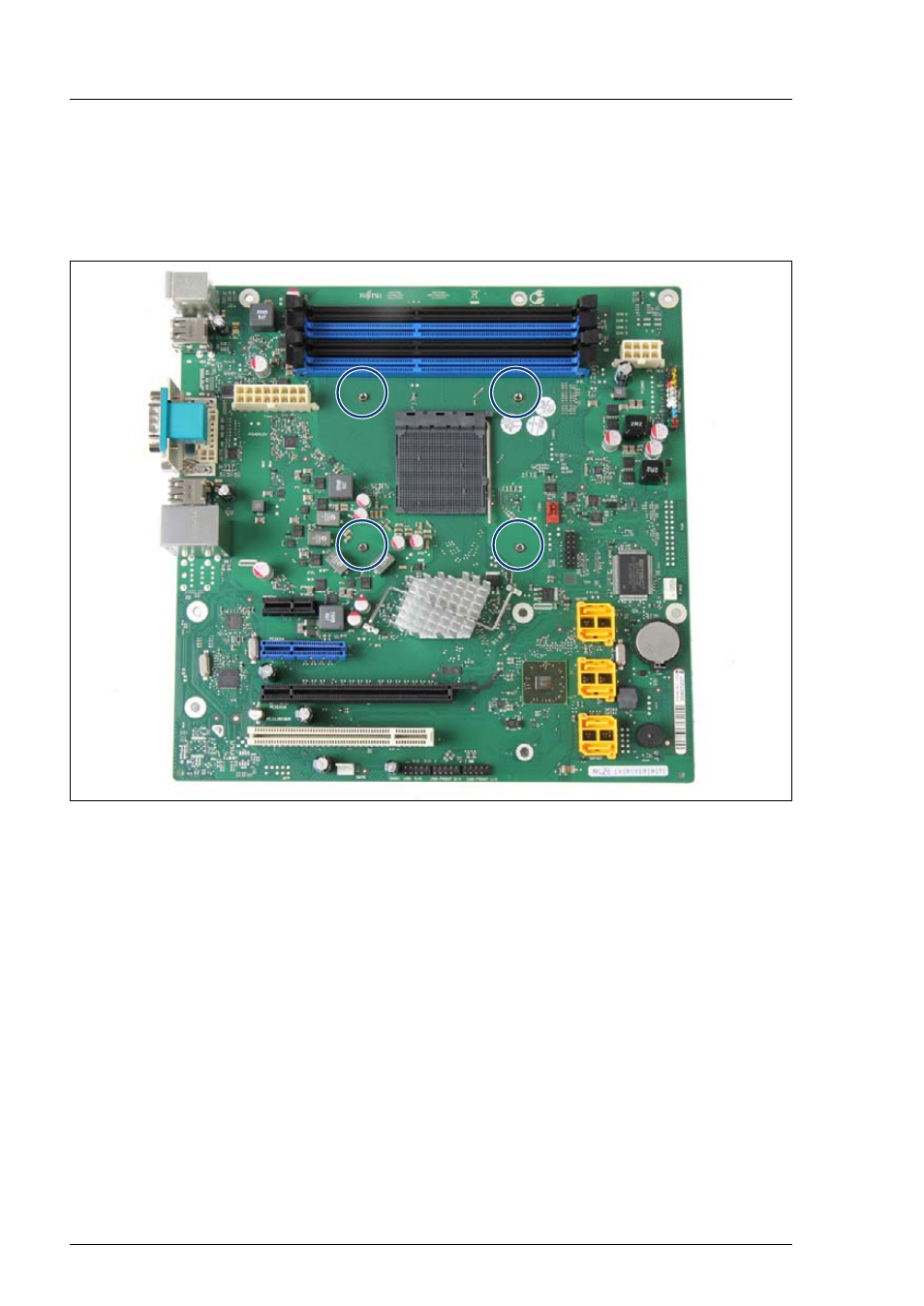

Figure 138: Inserting the heat sink counter plate
Ê
Insert the heat sink counter plate from the bottom to the system board. The
bolts must come through the system board (see circles).
Ê
Install the processor and the heat sink as described in section
