HDDs and accessible drives

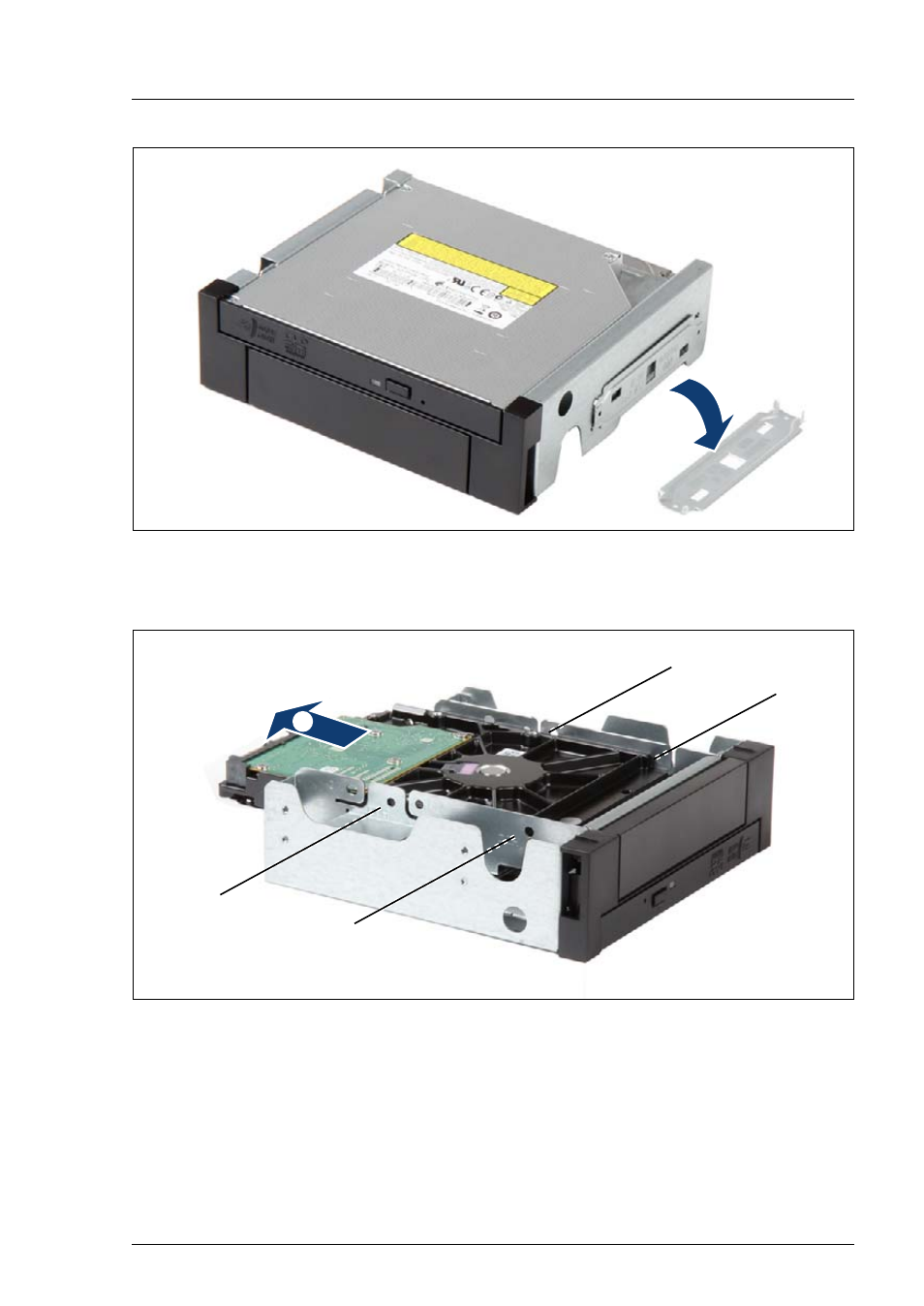

Figure 48: Removing the fixation plate from the 5.25-inch ODD/HDD bracket
Ê
Remove the fixation plate from the 5.25-inch ODD/HDD bracket.
Figure 49: Removing the HDD out of the 5.25-inch ODD/HDD bracket
Ê
Remove the four screws (1) and pull the HDD out of the 5.25-inch ODD/HDD
bracket (2).
