90 Upgrade and Maintenance Manual MX130 S2
HDDs and accessible drives

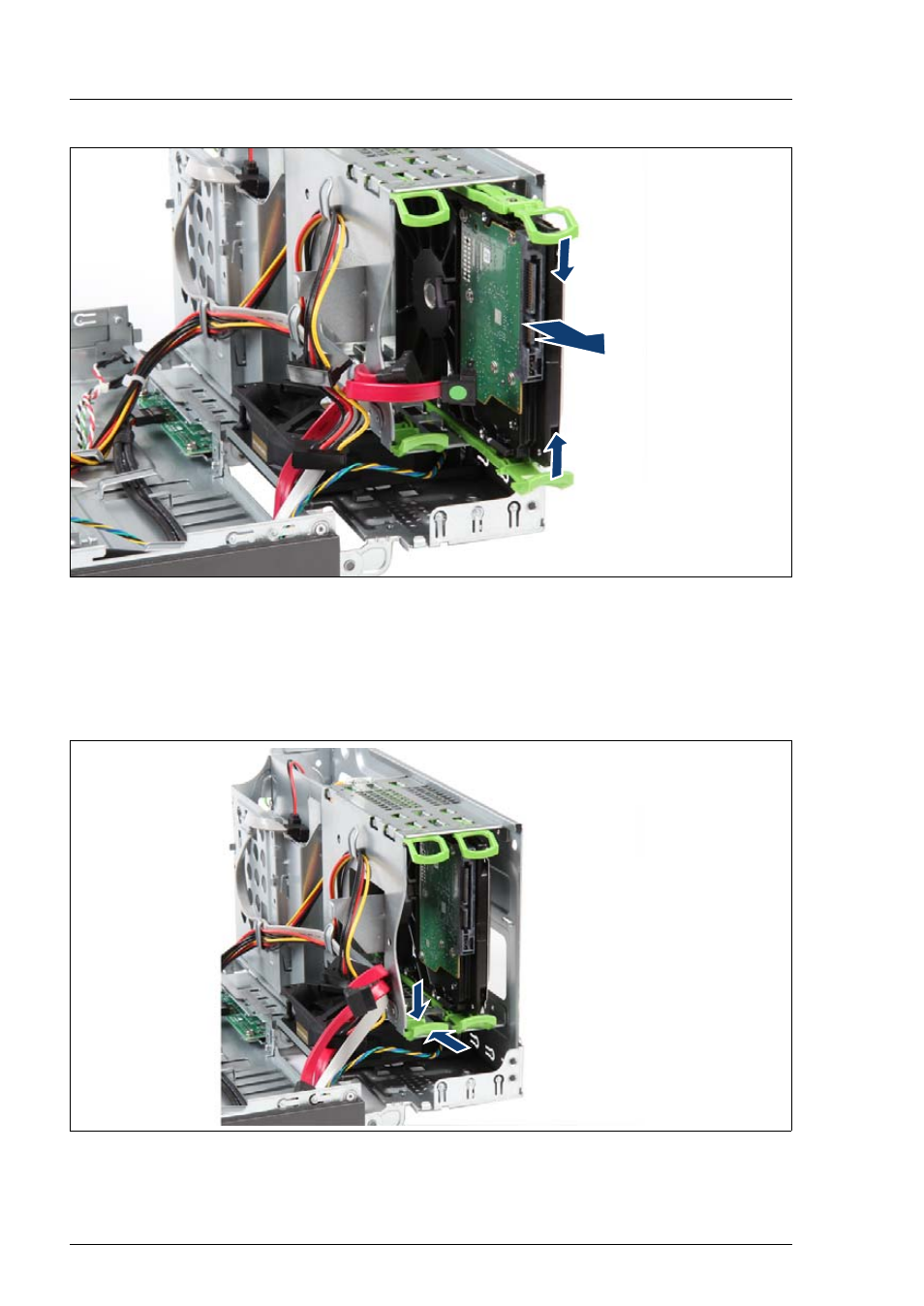

Figure 29: Removing a 3.5-inch HDD
Ê
Pull the two green handles of the Easy rails in the direction of arrow 1.
Ê
Pull the HDD with the two green handles of the Easy rails completely out of
its bay (2).
Figure 30: Inserting the Easy rails
Ê
Insert the Easy rails into the bay.
/
/
