Upgrade and Maintenance Manual
MX130
S2
Front panel and front USB
13.2.3 Removing the defective front USB board

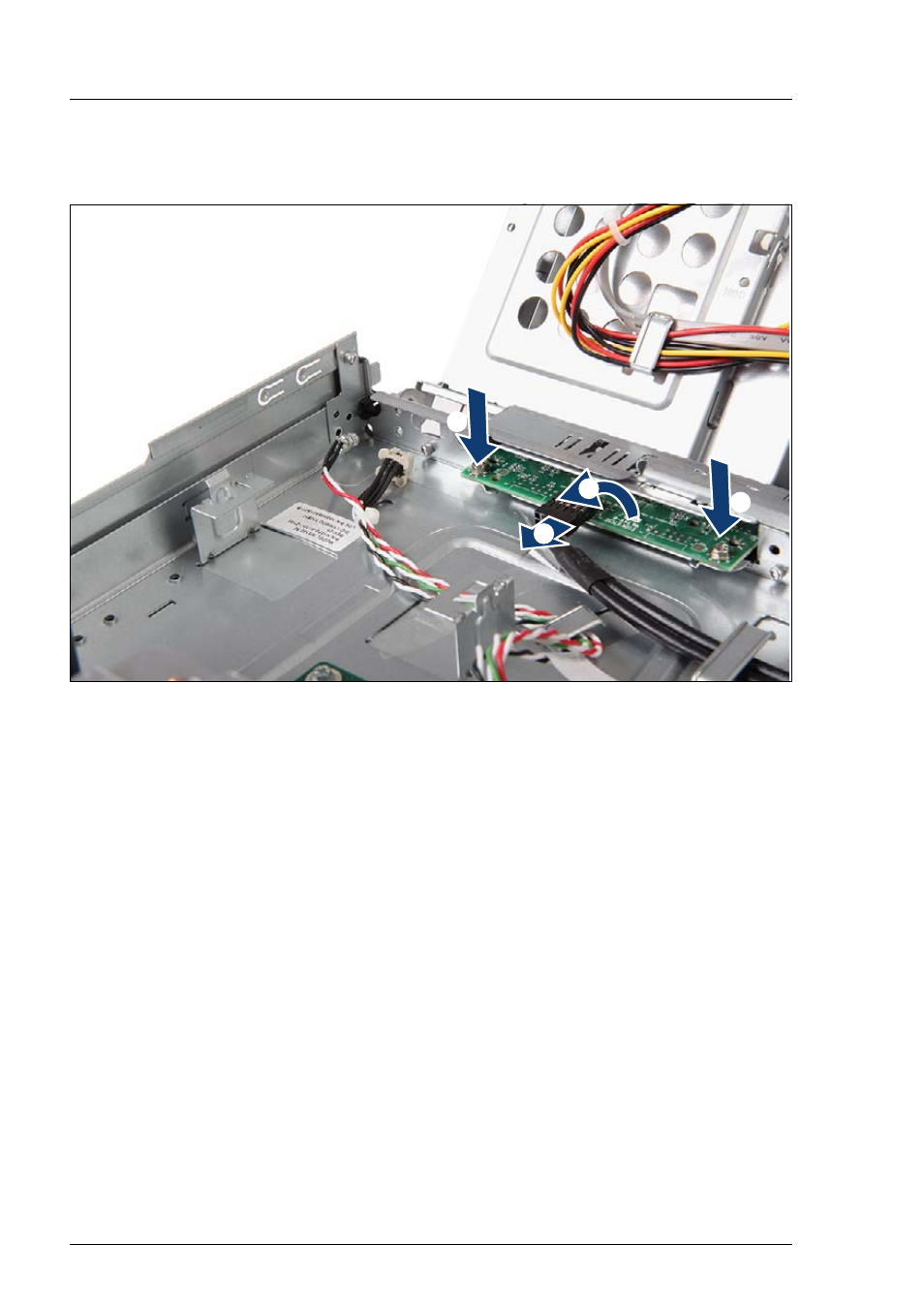

Figure 145: Disconnecting the USB front cable, removing the front USB board
Ê
Disconnect the front USB cable from the front USB board (1).
Ê
Remove the two screws of the front USB board (2).
Ê
Remove the front USB board (3).
