152 Upgrade and Maintenance Manual MX130 S2
System fan

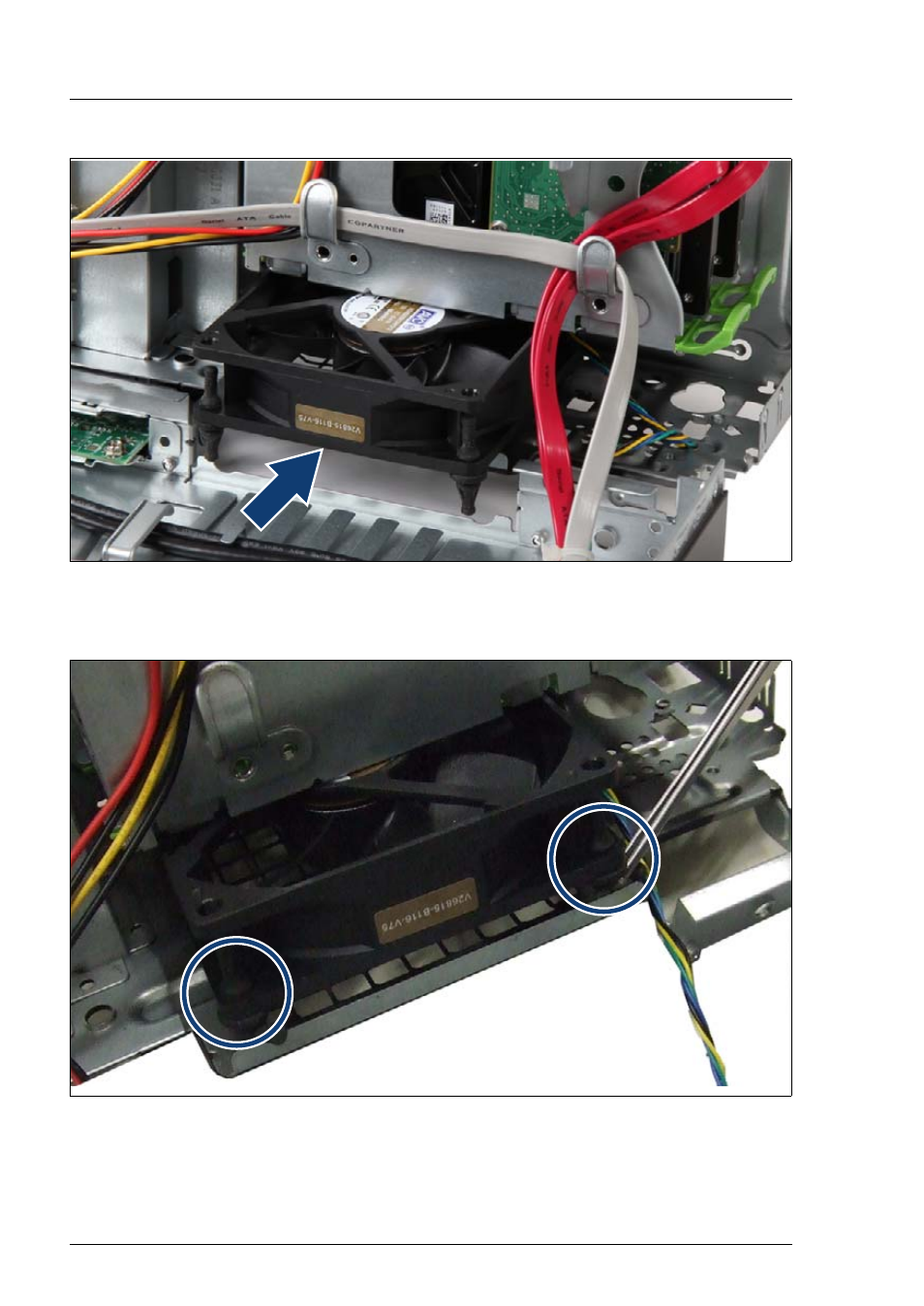

Figure 86: Installing the system fan module
Ê
Insert the system fan module into the chassis.
Figure 87: Fitting front fan rivets
Ê
Put the two front fan rivets A and B into the fan slots in the chassis with the
help of a pincer (see circles).
B B
A
B
