Expansion cards

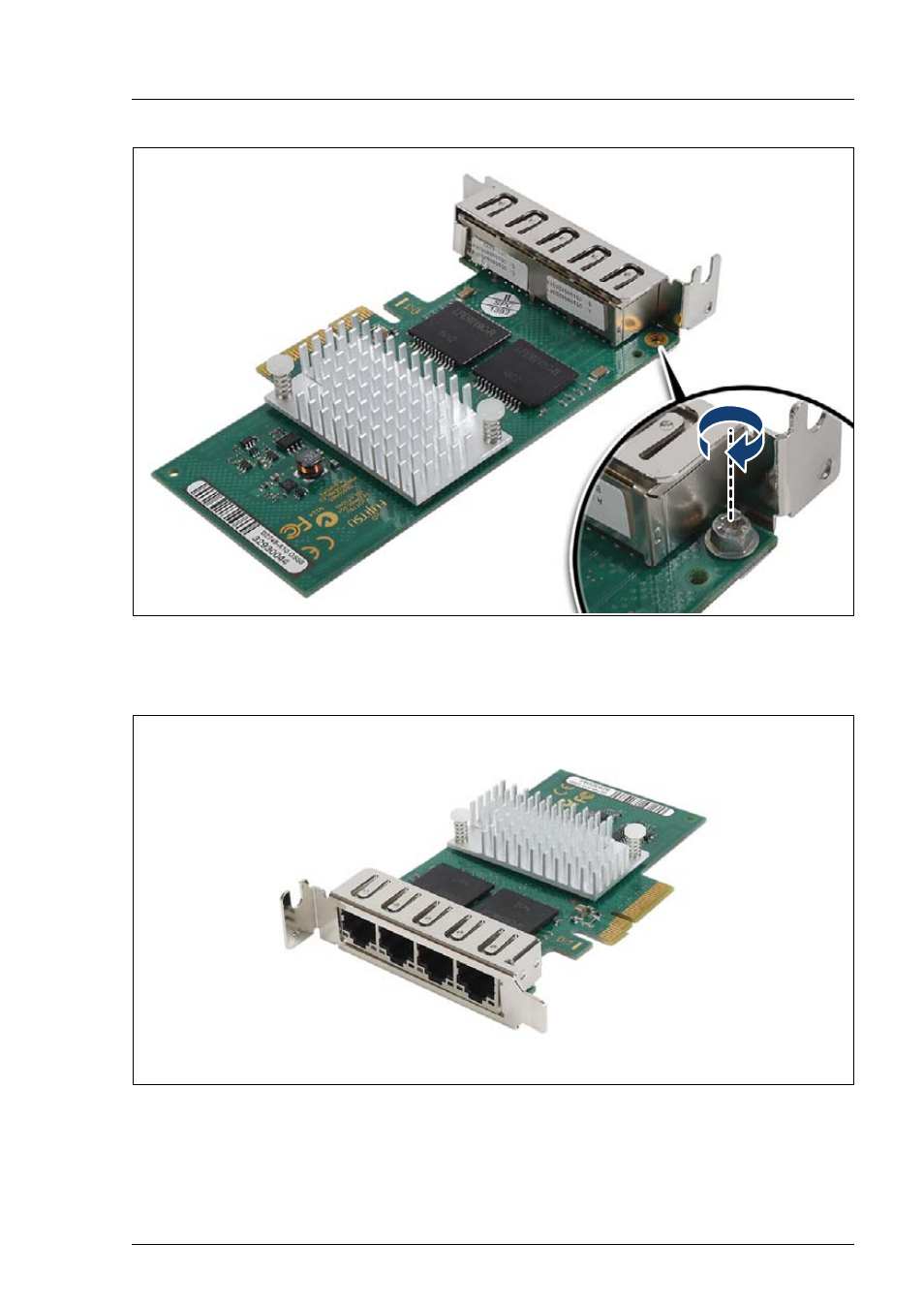

Figure 111: Network adapter D2745 - Mounting the slot bracket (B)

Ê

Secure the slot bracket to the controller with one M3 x 4.5 mm screw.

Figure 112: Network adapter D2745 - Mounting the slot bracket (C)

I

Assembled network adapter D2745
