220 Upgrade and Maintenance Manual MX130 S2
System board and components

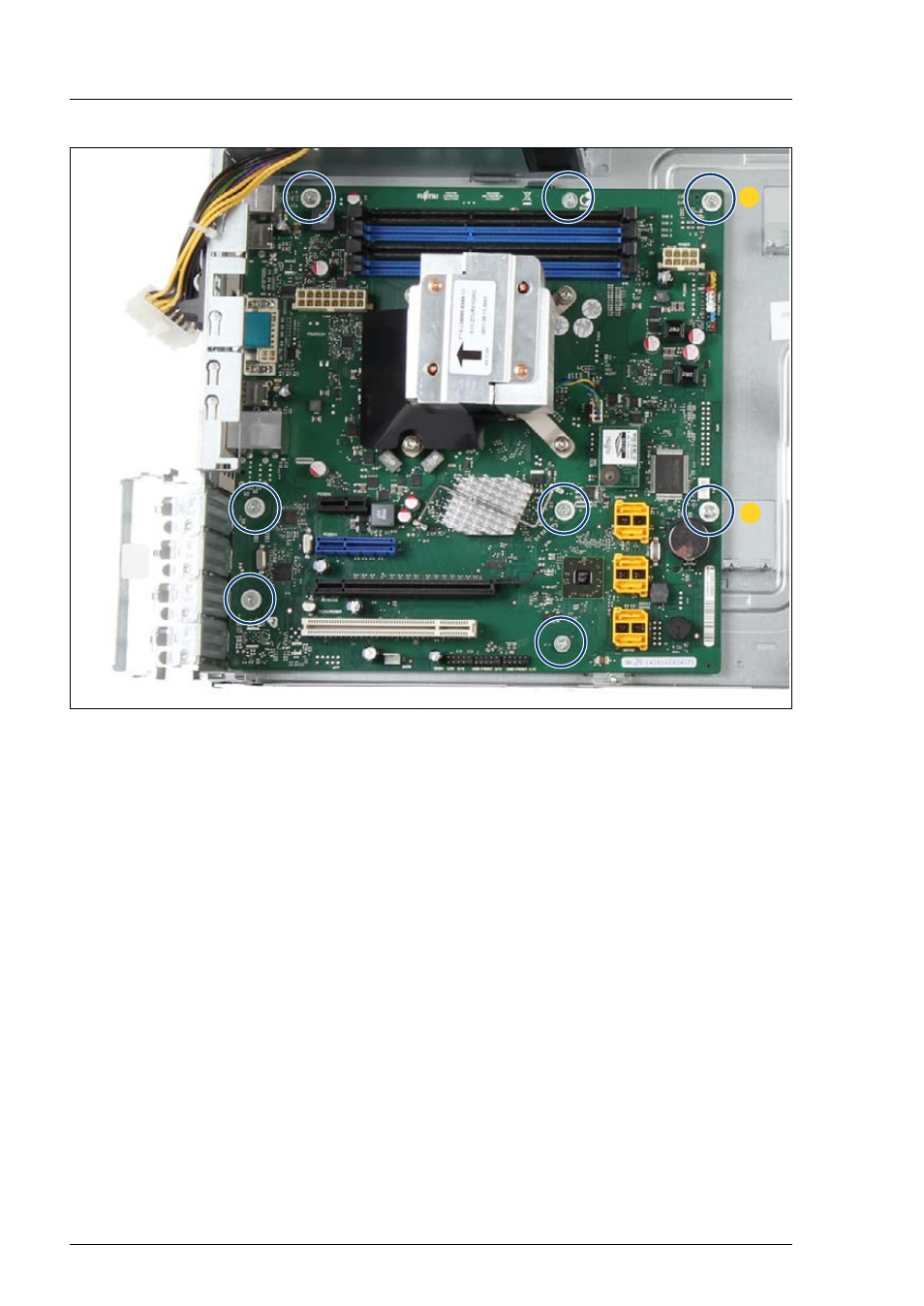

Figure 140: Installing the system board (B)
Ê
Secure the system board with eight screws (M3 x 4.5 mm, standard C67
screw) (see circles) beginning with the two centering bolts (C).
I
Screw torque: 0.6 Nm (not applicable for the Japanese market)
Ê
Verify the settings on the new system board (DIP switches, jumpers). For a
detailed description, please refer to section
"Onboard settings" on page 250 .
C C
C C
