Pearl Mini User Guide Specifications

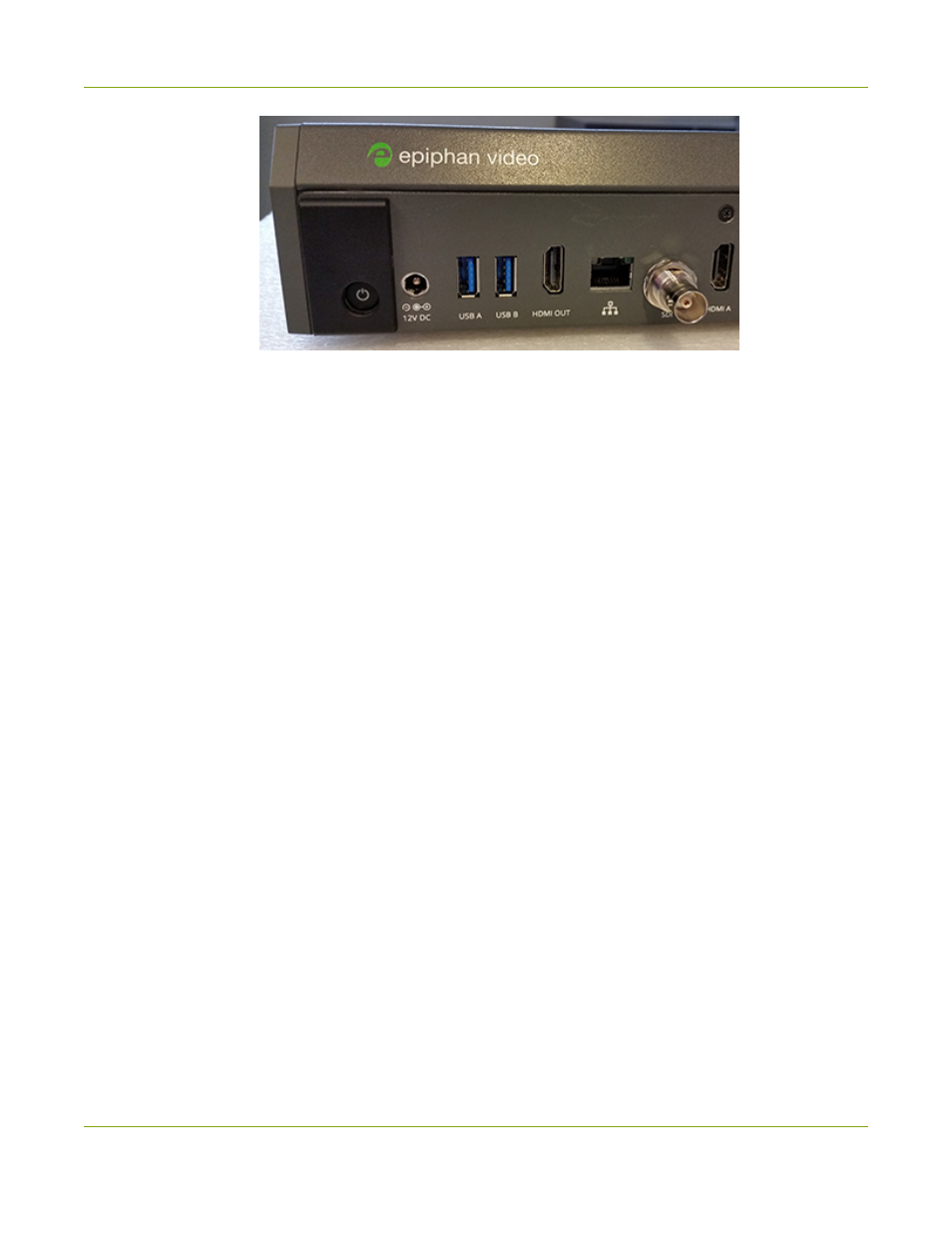

3. Press the power button to ensure it functions properly.
Specifications
Topics include:
Pearl Mini
l Pearl Mini AV inputs
l Pearl Mini tech specs
l Pearl Mini power adapter specifications
l Optimum System Load
l Vesa mounting the device
l International character support
Pearl Mini AV inputs
For best performance, we recommend using two video sources in up to two full HD channels simultaneously.
However, you can connect up to three video sources to the Pearl Mini in the following scenarios:
1. One 1920×1080@30 fps channel configured with three layouts, one for each full HD video source without
any scaling and make the video image fill the whole frame.
2. Two 1920×1080@30 fps channels: one channel for a picture in picture switched program for HD recording
at 1080@30 fps at 8 Mbps, and a second channel with duplicate content at a lower resolution of 720@30
fps at 2 Mbps for streaming that uses the first channel as the video source, see
Add video sources or a
channel as a source . The switched program can have up to three layouts: two that are picture in picture
that includes your main camera and one other video source such as a document camera or a laptop with
slides, and a third layout of your main camera.
One of the video sources you connect can be either a USB, SRT, or an RTSP source; however, you cannot
connect more than one of these sources at the same time. Pearl Mini supports connection of common signal
converters and input adapters.
