Pearl Mini User Guide Resize and position items using percents or pixels
Audio source selection and saving edits
Select audio source(s) for your channel by adding them to your layouts. The bottom section of the custom layout
editor is where you select the audio source for the currently selected layout. It's also where you'll find the Save
button.
l Pearl-2, Pearl Mini, and Epiphan Unify - If a layout doesn't have an audio source selected, there will be
silence when that layout is selected during live switching, recording, and confidence monitoring.
l Pearl Mini - HDMI-A and HDMI-B audio are already selected by default for the two default channels.
You can have multiple audio sources in a layout. The audio sources are mixed together at the same volume level
as one another.
If multiple audio sources in a layout have common audio signals, the common signals are added
together, which amplifies the volume of the common signals in comparison to the rest of the audio
that's coming from your sources. For example, if you connect two microphones that are set up in
close proximity to each other and their signals are in phase, or if you connect stereo music left/right
signals to the mono audio ports (mic or line) on Pearl Mini.
When setting the audio gain for your channel, add all your audio sources to your layout first, then set level of gain
for your audio sources appropriately. When you're done all your changes, click Save.
Resize and position items using percents or pixels
You can resize layout items using the percent/pixel adjustment boxes in a layout using the custom layout editor.
You can also reposition video sources. See
Resize layout items and Position layout items .
There are three adjustment boxes along your layout's horizontal axis and another 3 boxes along the vertical axis.
You can enter percent or pixel values into checked adjustment boxes (bordered with red) to position and resize
your item(s).

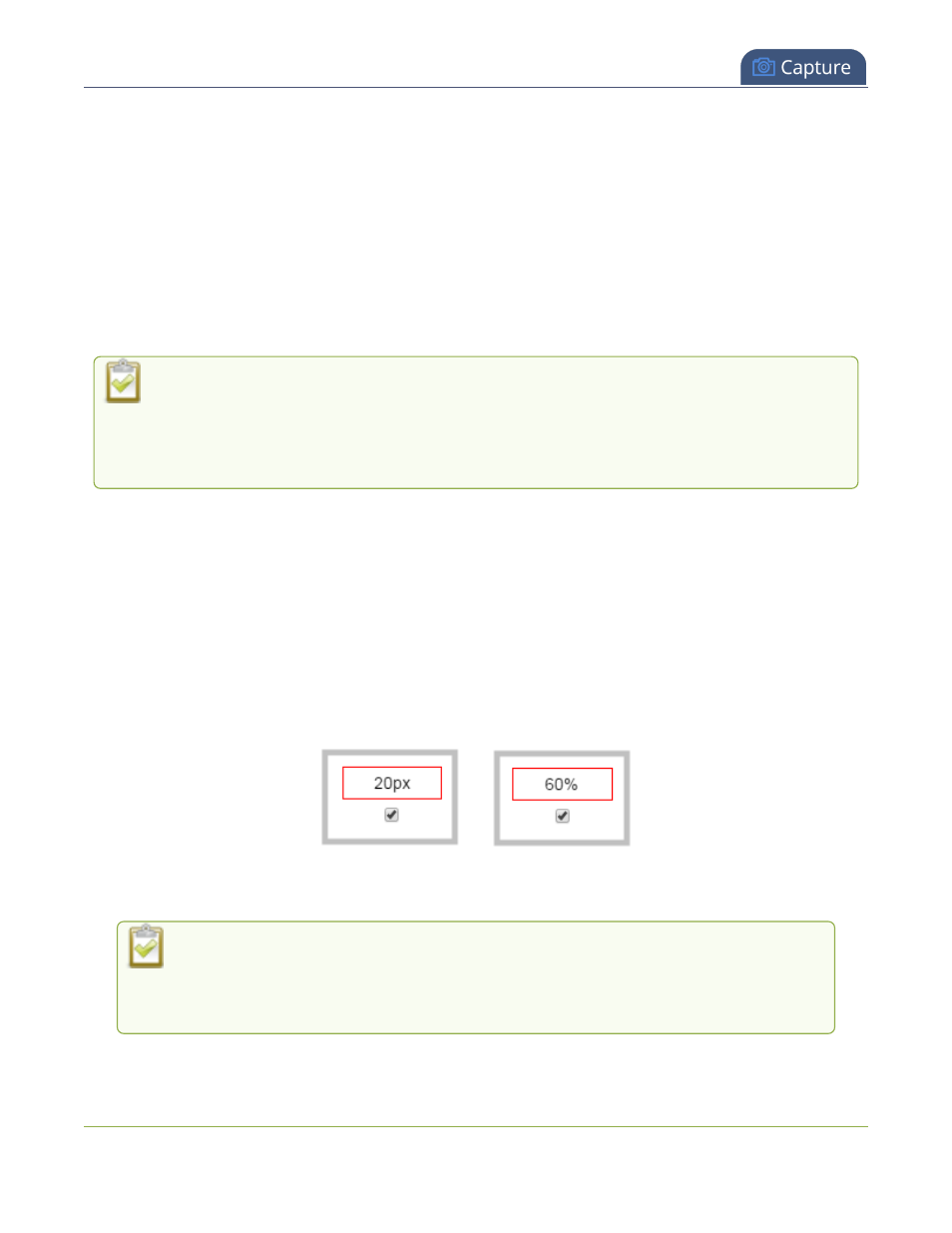

Percent values are used in adjustment boxes by default, and can be converted to pixels by simply overwriting the
percent value in a given adjustment box and replacing it with a pixel value.
When entering percent values, ensure the suffix "%" is added to your value (i.e. "20%").
When entering pixel values, ensure the suffix "px" is added to your value (i.e. "200px"). A
layout item's total pixel dimensions are a reflection of your channel's frame size, as
configured in your encoding settings (see
Configure encoding ).
