2. Panel Operation
2 – 67 Operating Instructions – Rev. 1 / 7.2002

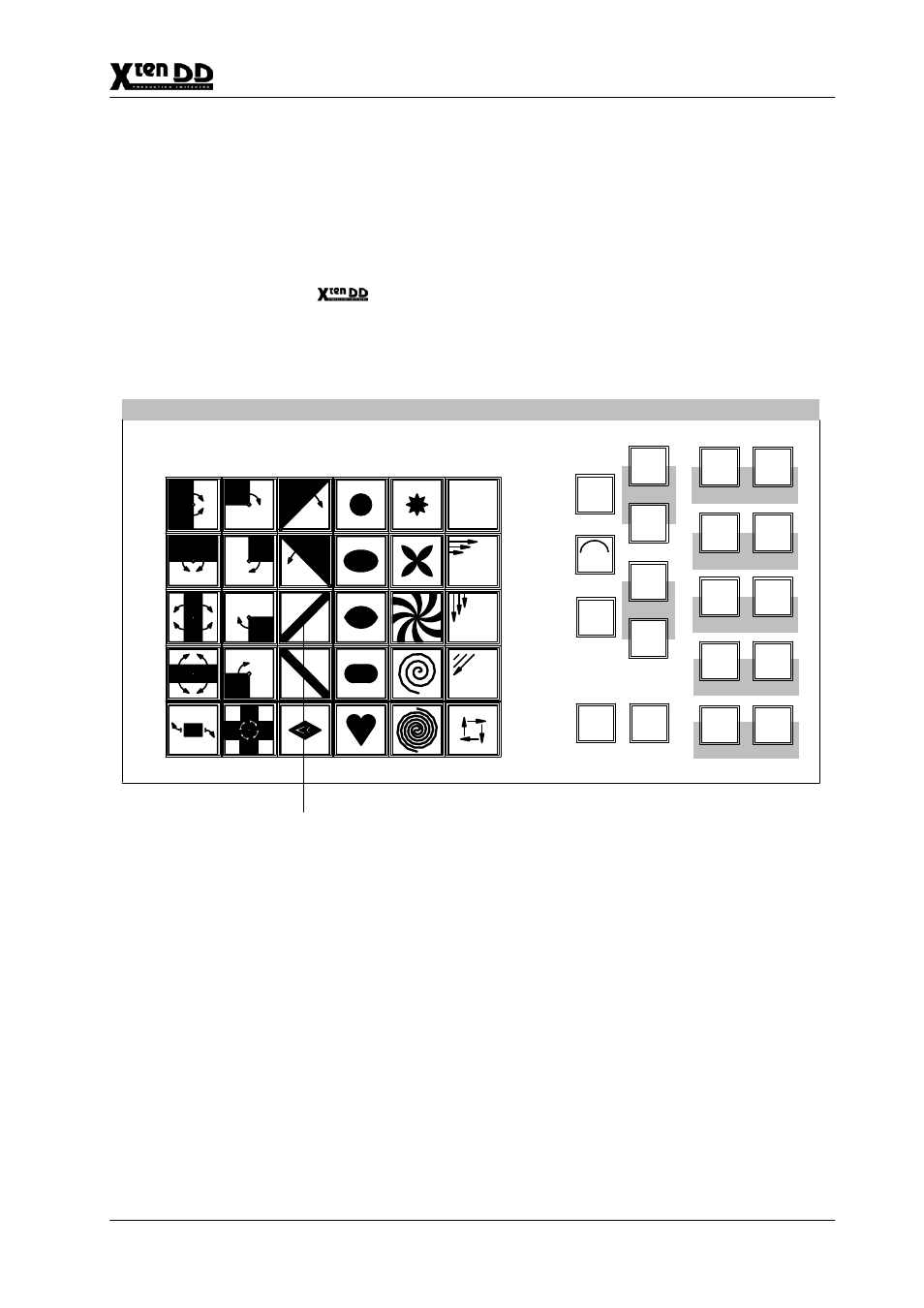

2.11 WIPE PANEL
The Wipe panel is a separat control module used for RPS35–4 and RPS35–3. The
RPS35–2 panel includes the same buttons in its basic panel.
With the RPS35–2S panel the wipe selection is menu–controled by using the touch
screen display only.
The ’s mix effect stage has up to two wipe generators per mixing level (op-
tional), which can be used for background or key transitions, for mask design or for
modulation of the Col 1 matte.
M/E2
Wipe1
M/E2
Wipe2
M/E3
Wipe1
M/E3
Wipe2
P/P
Wipe1
P/P
Wipe2
Pos
2nd
Rot
User
Wipe
Wipes
Extend
Pos
Rev
Norm
Rev
Pattn
Memo
Modif
Reset
DVE1 DVE2
M/E1
Wipe1
M/E1
Wipe2
The control panel is delivered with two different pushbutton inlays.
Refer next page for details.
