TiM/E Memo n this button delegates the AUX-CP to register

recall for the given TiM/E Memo system.

Make Memo

this button delegates the AUX-CP to Make Memo
macro recall.

Note: This function is not available for AUX-CPs
installed at the E-Box

At least one function other than None, 2

or 3

must be programmed. Otherwise

the AUX-CP performs no action at all.

Since the CP-3020 Aux control panel module has only two delegation buttons,
Deleg 1 and Deleg 2 may be programmed with 2

and 3

. In this case, Deleg 3

defines the function of the AUX-CP. Deleg 4..6 can be ignored.

There are three modes:

when the Aux Control Panel is used for crosspoint selection of internal busses,
the sources can be assigned freely to the source selection buttons of the
AUX-CP. To do this, Assign changes the contents of the index card. See below.

using for crosspoint selection of external AUX busses

does not apply to the TiME Memo n and Make Memo functions. I.e., the left-
most source button selects register 0. Make Memo macro of Make Memo but-
ton 1 and so on.

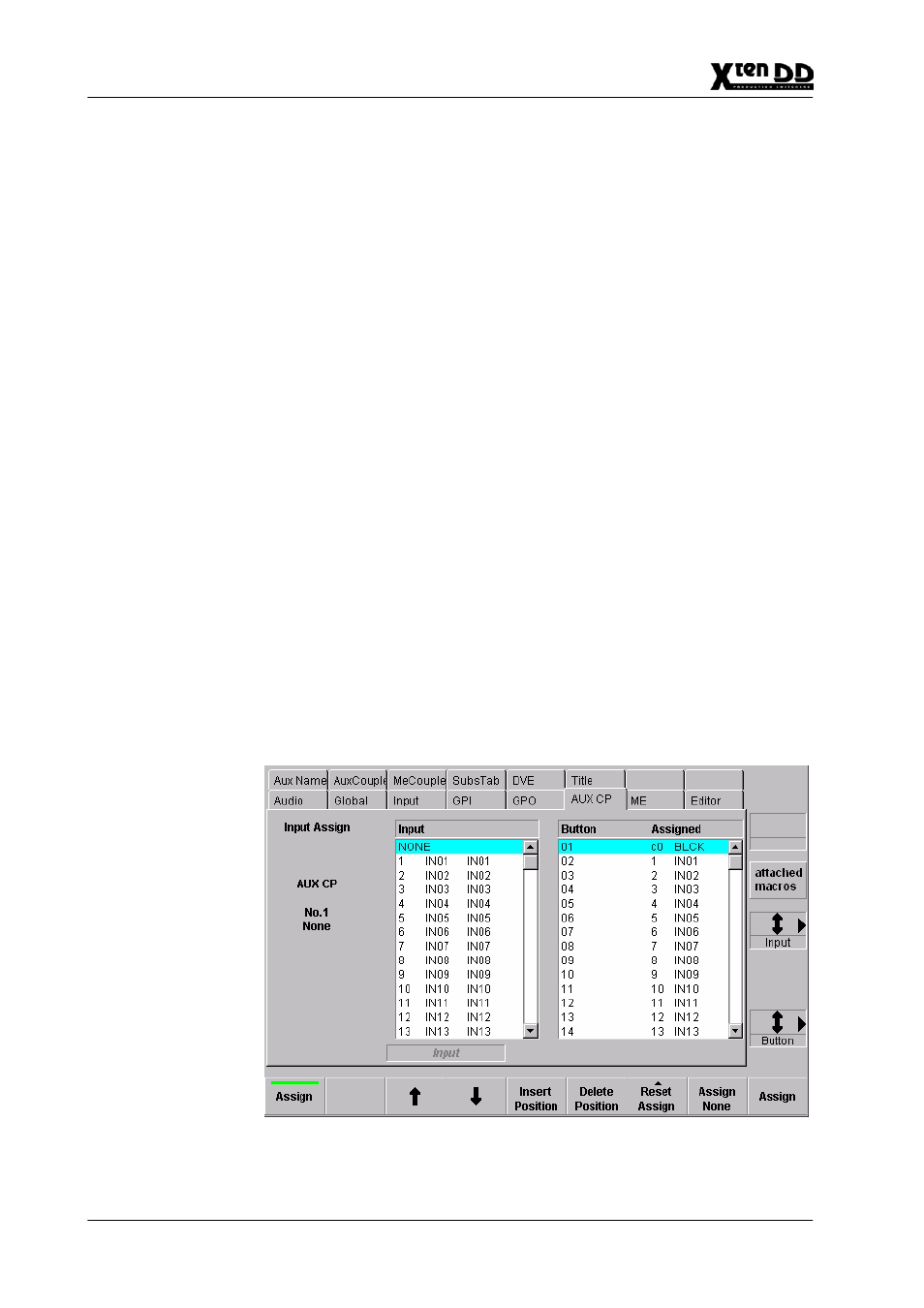

Input Assign (internal sources):

The procedure for input assignment is very similar to the input assignment for the
control panel.

Assign
