3. Menu Operation

3 – 187

Operating Instructions – Rev. 1 / 7.2002

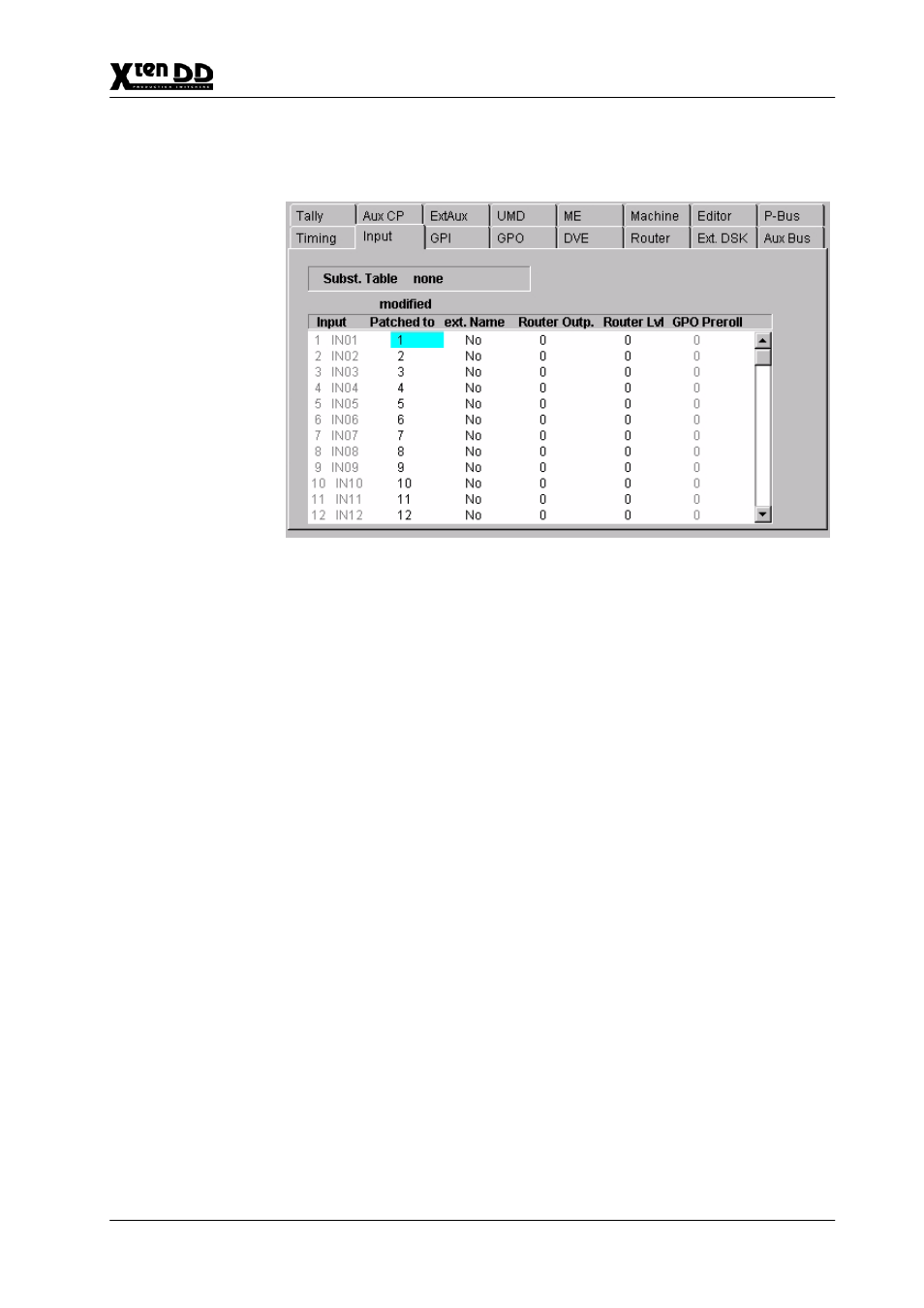

Index card for setting the input name transfer parameters and the Software patch
Panel.

ext. Name:

Enable / Disable the name transfer mode with Yes/No

Patched to:

Option “Software Patch Panel”:
Software License Key is required!
With the buttons Reset Patch Panel and Patch Panel On/Off
the settings can be activated or resetted.

Router Output: Select the router output channel

Router Level: Select the level of the routing system (e.g. Prosan router)

GPO Preroll:

in preparation

Subst. Table: None / SUBSTAB1 ... 15

Selecting a substitution table.
Refer also to Config / Panel / SubstTab menu.
The substitution tables are used for Simulcast mode.
This entry in this index card can only be modified
if in the sidepanel PC‘s registry the value
“USERINTERFACE / INPUT_SUBSTAB_SELECTABLE is set
to “1”.

Input
