3. Menu Operation
3 – 196 Operating Instructions – Rev. 1 / 7.2002

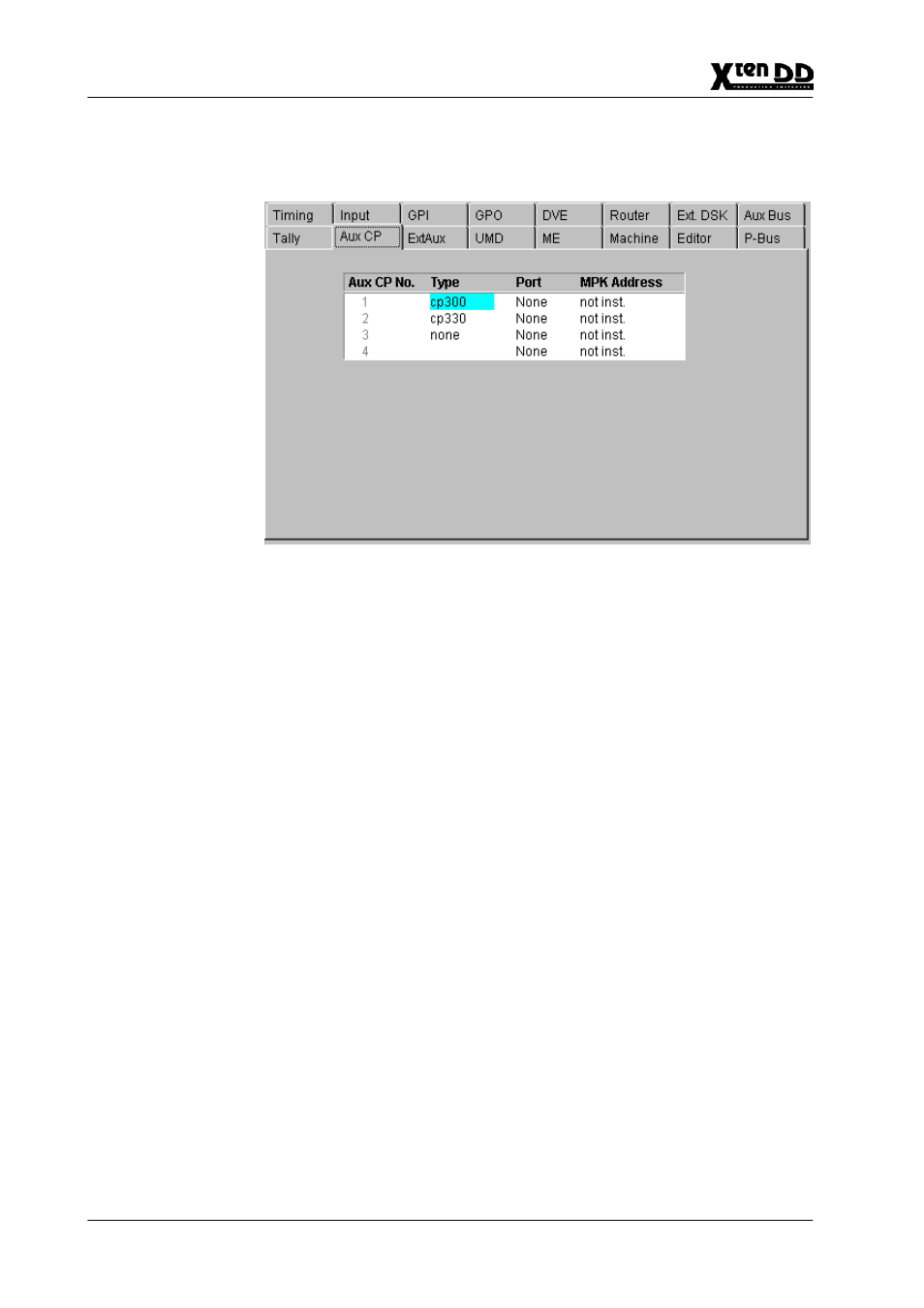

Index card for installing the Aux Control Panels connected with the mainframe.
For Details refer to the Planning and Installation Manual.
Type opens a pop-up window with all types of Aux Control Panels.
Port opens a pop-up window with all ports plus ”None” like in all other
menus where a port must be configured.
Note: The port must be different to the ports used for
DVEs, Editors, ext. DSKs, etc.
MPK Address opens the typewriter pop-up window.
The physical MPK address of the AUX-CP must be entered.
Refer the label at the rear of the panel modules
(e.g. CP-3020: e0002d43).
Aux CP
